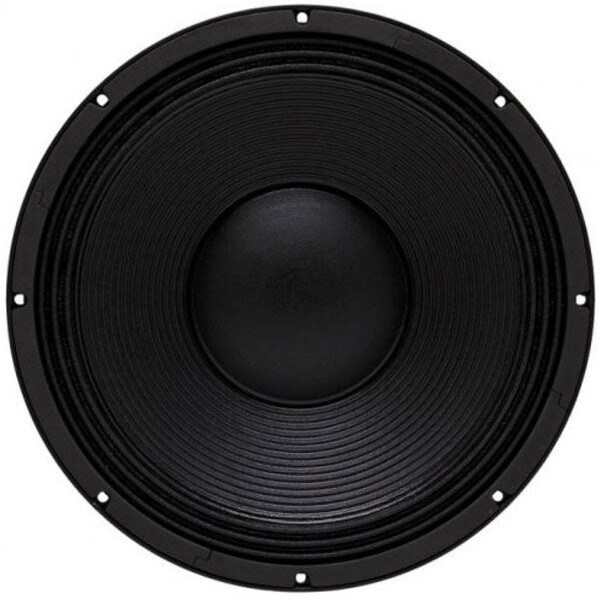

B&C 15SW115 15" Professional Neodymium Subwoofer 8 Ohm

B&C Speakers
Part #294-5989

B&C 15SW115 15" Professional Neodymium Subwoofer 8 Ohm

B&C Speakers
Part #294-5989
Model: 15SW115
B&C's 15SW115 15" pro subwoofer speaker boasts an oversized 4.5" voice coil, neodymium motor, 1,700 watts RMS power handling capacity, and 13.5 mm Xmax (60 mm peak-to-peak excursion before damage).
Key Features
  • Lightweight but powerful FEA-optimized neodymium magnet
  • Extremely high BL factor and Xmax for outstanding LF output
  • 13.5 mm Xmax, 60 mm peak-to-peak excursion before damage
  • 4.5" split winding copper voice coil on fiberglass former
  • Ventilated voice coil gap reduces power compression
  • Aluminum demodulation ring on pole piece reduces distortion
  • Double silicone spider
Your Price: $591.24
+ FREE SHIPPING
MSRP: $985.40
Save $394.16 (40%)
Bulk Pricing
Ships next business day. Details

Only 3 In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

B&C 15SW115 15" Professional Neodymium Subwoofer 8 Ohm

The B&C 15SW115 is an advanced, lightweight subwoofer driver featuring 1,700 watts RMS power handling, a 1.33" long/4.5" diameter copper voice coil with very high thermal capability, and a ventilated neodymium magnet assembly that provides low power compression. An aluminum demodulation ring fitted to the 15SW115's pole piece reduces distortion.

Product Details

BrandB&C Speakers
Model15SW115
Part Number294-5989
UPC848864009711
Unit of MeasureEach
Weight27.7

Product Specifications

Nominal Diameter15"
Bolt Circle Diameter16.7
Power Handling (RMS)3400 Watts
Impedance
Frequency Response35 to 1,500Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter4.5"

Thiele-Small Parameters

Resonant Frequency (Fs)35Hz
DC Resistance (Re)
Voice Coil Inductance (Le)1.8mH
Mechanical Q (Qms)4.4
Electromagnetic Q (Qes)0.25
Total Q (Qts)0.24
Compliance Equivalent Volume (Vas)3.9ft³
BL Product (BL)30T·m
Diaphragm Mass Inc. Airload (Mms)200g
Maximum Linear Excursion (Xmax)13.5mm
Surface Area of Cone (Sd)855cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter15.5"
Baffle Cutout Diameter13.9"
Depth7.6"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1ft³
Sealed F3123.6Hz
Vented Volume3.5ft³
Vented F340.3Hz
