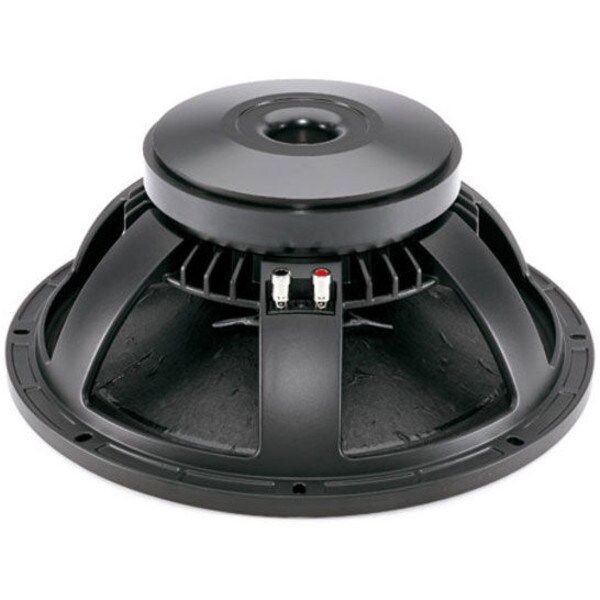

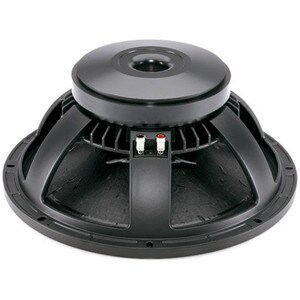

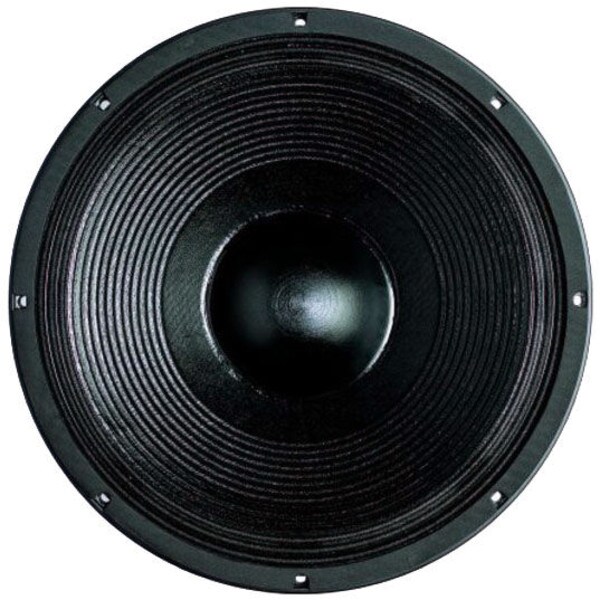

B&C 15PS100-4 15" Professional Woofer 4 Ohm

B&C SpeakersPart # 294-5987
Model: 15PS100-4
2 Questions, 6 Answers or
The B&C Speakers 15PS100-4 is a long excursion 15" woofer with 700 watts RMS power handling, and it has been engineered to excel in woofer and subwoofer applications.

Key Features

  • Very long excursion, low distortion design
  • Die cast frame and FEA-optimized ceramic ferrite magnet system
  • 700 watts RMS power handling
  • 4" copper wire voice coil on fiberglass former
  • Great performance in compact vented pro audio speaker enclosures
  • 4 ohm impedance
Your Price: $294.00
+ FREE SHIPPING
MSRP: $490.00
Save $196.00 (40%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when B&C 15PS100-4 15" Professional Woofer 4 Ohm is back in stock or available for preorder.

Ships in 7-10 Business Days
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 15PS100-4 15" Professional Woofer 4 Ohm

B&C's 15PS100-4 speaker features a special 4" copper wire voice coil wound on a fiberglass former using proprietary high temperature adhesives. The 15PS100-4's optimized ceramic ferrite magnet assembly guarantees very good LF dynamic range with a very low distortion figure. This Italian-made professional driver is especially recommended for compact vented enclosures, in which it will deliver solid, deep bass output.


Product Details

BrandB&C Speakers
Model15PS100-4
Part Number294-5987
UPC848864009698
Unit of MeasureEach
Weight24.4

Product Specifications

Nominal Diameter15"
Bolt Circle Diameter14.7
Power Handling (RMS)1400 Watts
Impedance
Frequency Response35 to 1,000Hz
Sensitivity94dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)33Hz
DC Resistance (Re)
Voice Coil Inductance (Le)2.1mH
Mechanical Q (Qms)4.8
Electromagnetic Q (Qes)0.33
Total Q (Qts)0.31
Compliance Equivalent Volume (Vas)5.3ft³
BL Product (BL)22.5T·m
Diaphragm Mass Inc. Airload (Mms)145g
Maximum Linear Excursion (Xmax)8mm
Surface Area of Cone (Sd)855cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter15.5"
Baffle Cutout Diameter13.9"
Depth6.6"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.2ft³
Sealed F384.5Hz
Vented Volume4ft³
Vented F338.9Hz
