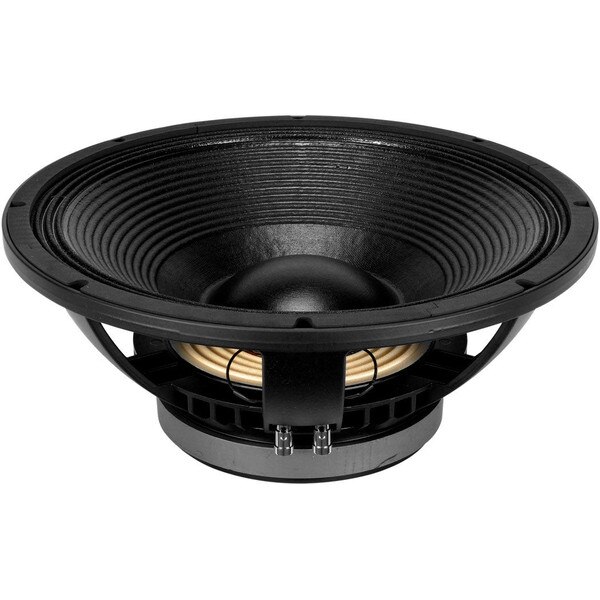

B&C 15PS100 15" Woofer

B&C SpeakersPart # 294-673
Model: 15PS100
The B&C Speakers 15PS100 is a long excursion 15" woofer with 700 watts RMS power handling, and it has been engineered to excel in woofer and subwoofer applications.

Key Features

  • Very low excursion, low distortion design
  • Die cast frame and FEA-optimized ceramic ferrite magnet system
  • 700 watts RMS power handling
  • 4" copper wire voice coil on fiberglass former
  • Great performance in compact vented pro audio speaker enclosures
Your Price: $316.32
+ FREE SHIPPING
MSRP: $527.20
Save $210.88 (40%)
Bulk Pricing
Only 4 In Stock
Get Notified When Available

We'll send you an email when B&C 15PS100 15" Woofer is back in stock or available for preorder.

Order in the next 12 hr 53 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 15PS100 15" Woofer

B&C's 15PS100 speaker features a special 4" copper wire voice coil wound on a fiberglass former using proprietary high temperature adhesives. The 15PS100's optimized ceramic ferrite magnet assembly guarantees very good LF dynamic range with a very low distortion figure. This Italian-made professional driver is especially recommended for compact vented enclosures, in which it will deliver solid, deep bass output.

Product Details

BrandB&C Speakers
Model15PS100
Part Number294-673
UPC844632055973
Unit of MeasureEach
Weight25

Product Specifications

Nominal Diameter15"
Bolt Circle Diameter14.7
Power Handling (RMS)1400 Watts
Impedance
Frequency Response35 to 1,000Hz
Sensitivity94dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)33Hz
DC Resistance (Re)5.3Ω
Voice Coil Inductance (Le)2.1mH
Mechanical Q (Qms)4.8
Electromagnetic Q (Qes)0.33
Total Q (Qts)0.31
Compliance Equivalent Volume (Vas)5.3ft³
BL Product (BL)22.5T·m
Diaphragm Mass Inc. Airload (Mms)145g
Maximum Linear Excursion (Xmax)8mm
Surface Area of Cone (Sd)855cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter15.5"
Baffle Cutout Diameter13.9"
Depth6.6"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.2ft³
Sealed F384.5Hz
Vented Volume4ft³
Vented F338.9Hz
