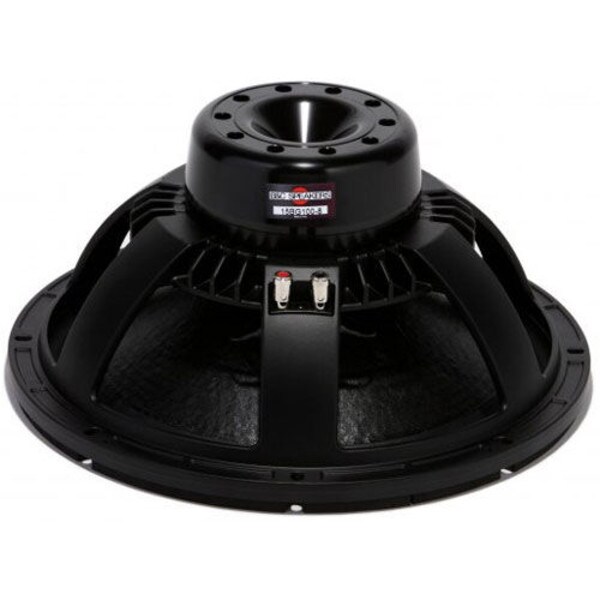

B&C 15BG100 15" Neodymium Subwoofer

B&C SpeakersPart # 294-698
Model: 15BG100
B&C's 15BG100 15" subwoofer features a strong yet light neodymium motor and is engineered to perform well in direct radiator or horn loaded speaker applications.

Key Features

  • High BL factor and generous Xmax deliver massive bass
  • Rubber half-roll surround for unrestricted, linear cone travel
  • Lightweight but powerful neodymium magnet
  • Ventilated voice coil gap reduces power compression
  • Aluminum demodulation ring minimizes distortion
  • Double silicone spider with optimized compliance
  • 2,000 watt continuous program power
Your Price: $439.38
+ FREE SHIPPING
MSRP: $732.30
Save $292.92 (40%)
Bulk Pricing
Only 2 In Stock
Get Notified When Available

We'll send you an email when B&C 15BG100 15" Neodymium Subwoofer is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 15BG100 15" Neodymium Subwoofer

B&C's 15BG100 15" subwoofer features a high strength/lightweight neodymium motor and is recommended for direct radiator or horn loaded applications. It will also perform superbly when used as the woofer in high-output 2-way speaker systems. Good power handling and Xmax capabilities thanks to a well-ventilated neodymium motor, 4" diameter 1" long voice coil, and carefully optimized suspension.

Product Details

BrandB&C Speakers
Model15BG100
Part Number294-698
UPC844632086250
Unit of MeasureEach
Weight22

Product Specifications

Nominal Diameter15"
Bolt Circle Diameter14.7
Power Handling (RMS)2000 Watts
Impedance
Frequency Response35 to 1,000Hz
Sensitivity94.5dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)36Hz
DC Resistance (Re)5.1Ω
Voice Coil Inductance (Le)1.6mH
Mechanical Q (Qms)5
Electromagnetic Q (Qes)0.49
Total Q (Qts)0.44
Compliance Equivalent Volume (Vas)2.93ft³
BL Product (BL)23T·m
Diaphragm Mass Inc. Airload (Mms)240g
Maximum Linear Excursion (Xmax)10.5mm
Surface Area of Cone (Sd)855cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter15.5"
Baffle Cutout Diameter13.9"
Depth7.44"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.5ft³
Sealed F364.8Hz
Vented Volume3.35ft³
Vented F333.5Hz
