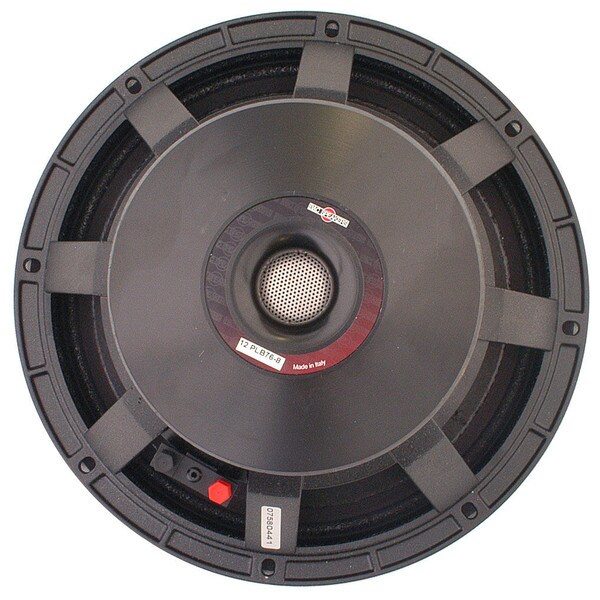

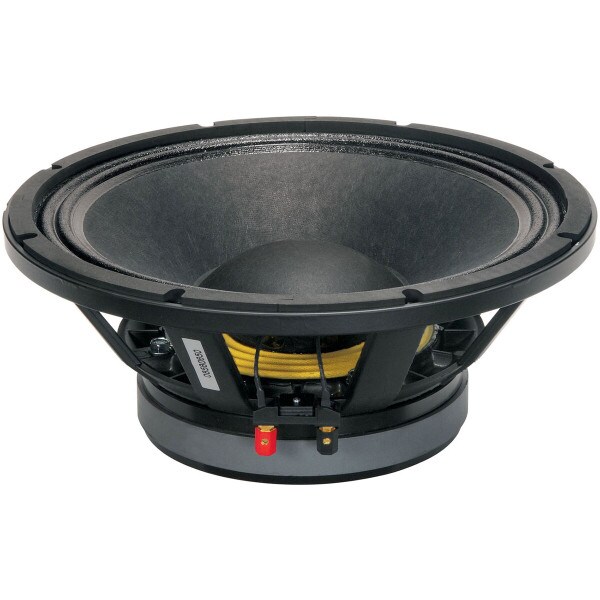

B&C 12PLB76 12" Woofer

B&C Speakers
Part #294-663

B&C 12PLB76 12" Woofer

B&C Speakers
Part #294-663
Model: 12PLB76
The B&C Speakers 12PLB76 12" pro audio speaker features a die cast frame, powerful ceramic ferrite magnet, and 3" aluminum voice coil. It combines solid bass performance with linear midrange response that extends into the midrange.
Key Features
  • 700 watt continuous program power
  • 3" aluminum voice coil
  • 98.5 dB 1w/1m sensitivity
  • Flat midrange response to 2 kHz
  • Excellent performance in 2-way or 3-way systems
Your Price: $209.40
+ FREE SHIPPING
MSRP: $349.00
Save $139.60 (40%)
Bulk Pricing
Order in the next 2 hr 47 min to ship today. Details

Only 3 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 12PLB76 12" Woofer

Great power handling and very smooth response to 2 kHz make the B&C 12PLB76 12" speaker ideal for 2-way PA stage systems, or in combination with a sub for a high performance 3-way rig.

Product Details

BrandB&C Speakers
Model12PLB76
Part Number294-663
UPC844632002106
Unit of MeasureEach
Weight18

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.6
Power Handling (RMS)350 Watts
Power Handling (MAX)700 Watts
Impedance8Ω
Frequency Response50 to 2,000Hz
Sensitivity99dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)50Hz
DC Resistance (Re)5.3Ω
Voice Coil Inductance (Le)1.2mH
Mechanical Q (Qms)5.2
Electromagnetic Q (Qes)0.24
Total Q (Qts)0.23
Compliance Equivalent Volume (Vas)2.6ft³
BL Product (BL)18.6T·m
Diaphragm Mass Inc. Airload (Mms)51g
Maximum Linear Excursion (Xmax)5mm
Surface Area of Cone (Sd)522cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.4"
Baffle Cutout Diameter11.1"
Depth5.35"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.36ft³
Sealed F3174Hz
Vented Volume1.5ft³
Vented F355.6Hz
