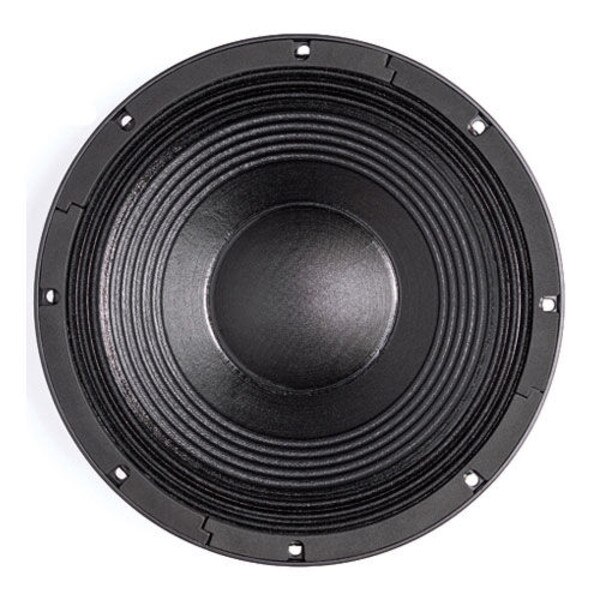

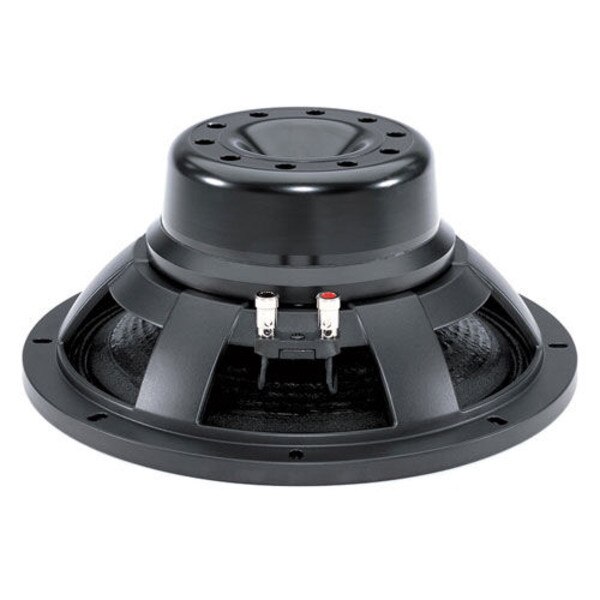

B&C 12NW100 12" Neodymium Subwoofer Speaker

B&C SpeakersPart # 294-571
Model: 12NW100
B&C's 12NW100 is a superb 12" subwoofer for direct radiator or horn loaded configurations. Also works well as the woofer in high-output 2-way speaker systems.

Key Features

  • Extremely high BL factor and generous Xmax deliver massive bass
  • Lightweight but powerful neodymium magnet
  • Ventilated voice coil gap reduces power compression
  • Double silicone spider
  • 2,000 watt continuous program power
  • 1" long, 4" diameter copper voice coil on fiberglass former
  • 96 dB 1W/1m sensitivity
Get Notified When Available

We'll send you an email when B&C 12NW100 12" Neodymium Subwoofer Speaker is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

B&C 12NW100 12" Neodymium Subwoofer Speaker

B&C's 12NW100 is a superb 12" subwoofer for direct radiator or horn loaded configurations. Also works well as the woofer in high-output 2-way speaker systems. Good power handling and Xmax capabilities thanks to a well-ventilated neodymium motor, 1" long voice coil, and carefully optimized suspension.

Product Details

BrandB&C Speakers
Model12NW100
Part Number294-571
UPC8059300642009
Unit of MeasureEach
Weight20.1

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.8
Power Handling (RMS)2000 Watts
Impedance
Frequency Response45 to 1,500Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)42Hz
DC Resistance (Re)5.1Ω
Voice Coil Inductance (Le)1.9mH
Mechanical Q (Qms)3.6
Electromagnetic Q (Qes)0.21
Total Q (Qts)0.2
Compliance Equivalent Volume (Vas)1.5ft³
BL Product (BL)28T·m
Maximum Linear Excursion (Xmax)9mm
Surface Area of Cone (Sd)531cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter12.5"
Baffle Cutout Diameter11.1"
Depth5.4"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.09ft³
Sealed F3169Hz
Vented Volume0.17ft³
Vented F3113Hz
