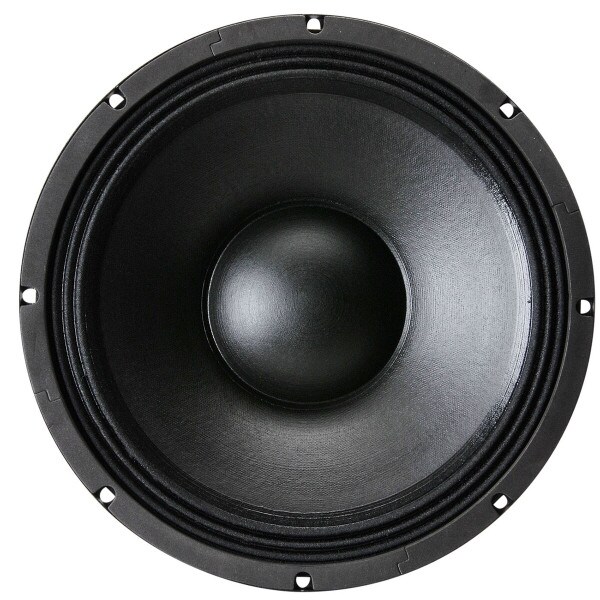

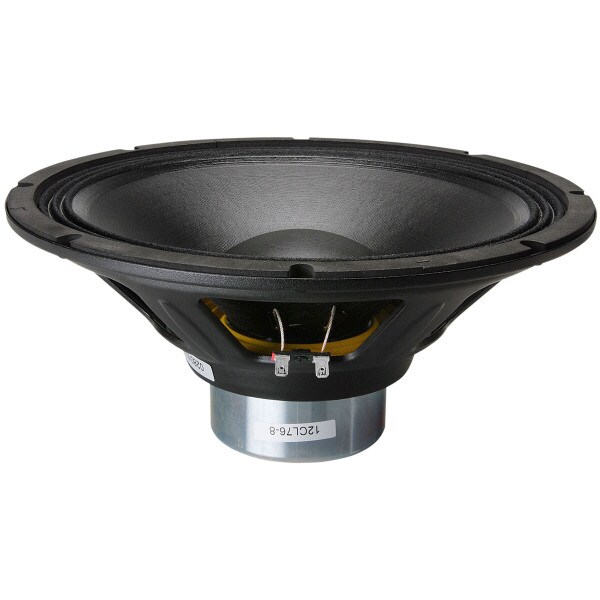

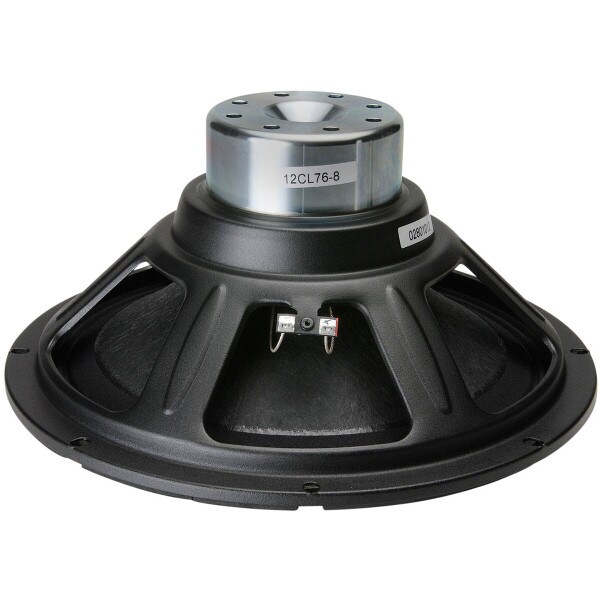

  • B&C 12CL76 12" Neodymium Woofer

B&C 12CL76 12" Neodymium Woofer

B&C SpeakersPart # 294-695
Model: 12CL76
Read 2 Reviews or
The B&C Speakers 12CL76 12" woofer features a 3" voice coil and lightweight neodymium motor, delivering high performance with less weight.

Key Features

  • Smooth and efficient
  • Lightweight but powerful neodymium magnet
  • Strong but cost effective stamped steel frame
  • Ventilated voice coil gap reduces power compression
  • 700 watt continuous program power
  • 3" copper voice coil
  • 98.5 dB 1w/1m sensitivity
Your Price: $197.10
+ FREE SHIPPING
MSRP: $328.50
Save $131.40 (40%)
Bulk Pricing
Only 1 In Stock More due any day
Get Notified When Available

We'll send you an email when B&C 12CL76 12" Neodymium Woofer is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 12CL76 12" Neodymium Woofer

The CL Series 12CL76 12" stamped metal frame woofer features performance similar to B&C's lightweight HPL Series, but at a significantly lower price. The CL Series drivers are aimed at the OEM builder, for a wide variety of applications including premium quality plastic speaker cabinets, bass guitar enclosures, or any cabinet that can benefit from a significant reduction in weight. The 12CL76 offers an excellent alternative to similar performance ceramic magnet drivers.

Product Details

BrandB&C Speakers
Model12CL76
Part Number294-695
UPC844632086229
Unit of MeasureEach
Weight8.5

Product Specifications

Nominal Diameter12"
Power Handling (RMS)700 Watts
Impedance
Frequency Response45 to 3,000Hz
Sensitivity98.5dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)48Hz
DC Resistance (Re)5.2Ω
Voice Coil Inductance (Le)1.5mH
Mechanical Q (Qms)4.8
Electromagnetic Q (Qes)0.22
Total Q (Qts)0.21
Compliance Equivalent Volume (Vas)2.1ft³
BL Product (BL)22.4T·m
Diaphragm Mass Inc. Airload (Mms)70g
Maximum Linear Excursion (Xmax)6mm
Surface Area of Cone (Sd)522cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter12.32"
Baffle Cutout Diameter11.10"
Depth5.59"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.5ft³
Sealed F3200Hz
Vented Volume1.13ft³
Vented F356.2Hz
