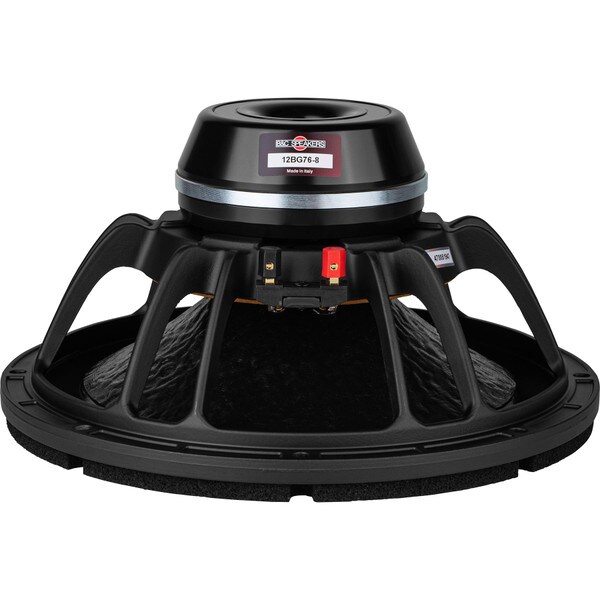

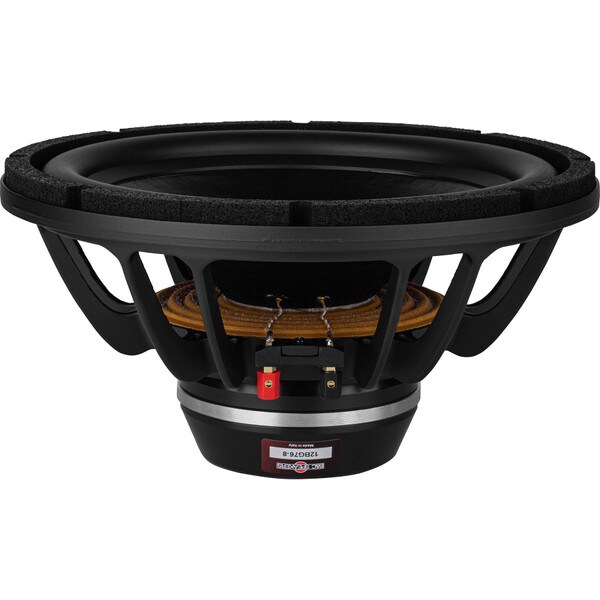

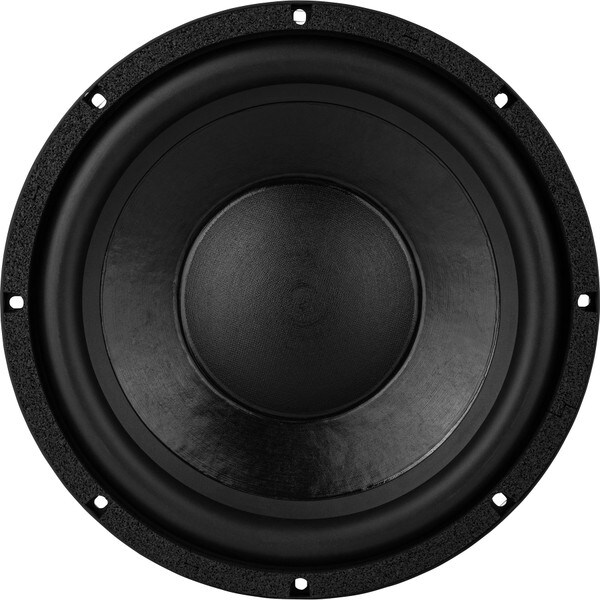

B&C 12BG76 12" 1000W Neodymium Subwoofer

B&C SpeakersPart # 294-692
Model: 12BG76
3 Questions, 4 Answers or
The 12BG76 12" professional woofer from B&C Speakers uses a neodymium motor to keep weight to a minimum while still having the capability to provide powerful bass response. With an aluminum shorting ring and dual spider design this driver will deliver low distortion output even when driver to its limits. With high excursion capability and good efficiency the 12BG76 is ideal for use in compact portable subwoofers and high output 2-way systems capable of impressive bass response.

Key Features

  • Extensive venting keeps the 3" voice coil cool for low power compression
  • Aluminum demodulation ring lowers inductance and minimized distortion
  • Dual silicone spider and rubber surround for high excursion capability
  • Copper voice coil on a fiberglass former to handle up to 500 watts RMS
  • Rugged cast aluminum frame to take the abuse of the pro sound environment
Your Price: $363.00
+ FREE SHIPPING
MSRP: $605.00
Save $242.00 (40%)
Bulk Pricing
Out of Stock
Get Notified When Available

We'll send you an email when B&C 12BG76 12" 1000W Neodymium Subwoofer is back in stock or available for preorder.

Special Order Item Ships in 3-7 Days
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 12BG76 12" 1000W Neodymium Subwoofer

For high output portable subwoofer designs the 12BG76 12" professional woofer from B&C Speakers is a great choice. With excellent response to over 1,000 Hz, this driver is also suitable for use in high output 2-way designs that are capable of excellent low frequency response. An FEA optimized neodymium motor assembly makes the 12BG76 weight only 11 pounds without sacrificing efficiency or overall output ability. For high power handling and low power compression the 3" copper voice coil is wound on a heat resistant fiberglass former and is kept cool by the ample venting through the frame and motor assembly. With dual silicone spiders and a half roll rubber surround allows outstanding excursion capability and keeps the cone linear even when driven to its limits. The rigid paper cone is treated with a waterproof coating making the 12BG76 ideal for use in outdoor installations where conditions are less that optimal.

Product Details

BrandB&C Speakers
Model12BG76
Part Number294-692
UPC848864061801
Unit of MeasureEach
Weight13.4

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.73
Power Handling (RMS)1000 Watts
Impedance8Ω
Frequency Response45 to 1,000Hz
Sensitivity92dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)44Hz
DC Resistance (Re)5.4Ω
Voice Coil Inductance (Le)1.1mH
Mechanical Q (Qms)5.9
Electromagnetic Q (Qes)0.44
Total Q (Qts)0.41
Compliance Equivalent Volume (Vas)1.13ft³
Mechanical Compliance of Suspension (Cms)0.08mm/N
BL Product (BL)22.7T·m
Diaphragm Mass Inc. Airload (Mms)148g
Maximum Linear Excursion (Xmax)9.5mm
Surface Area of Cone (Sd)522cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter12.4"
Baffle Cutout Diameter11.18"
Depth6.26"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.71ft³
Sealed F385.9Hz
Vented Volume1.5ft³
Vented F340.2Hz
