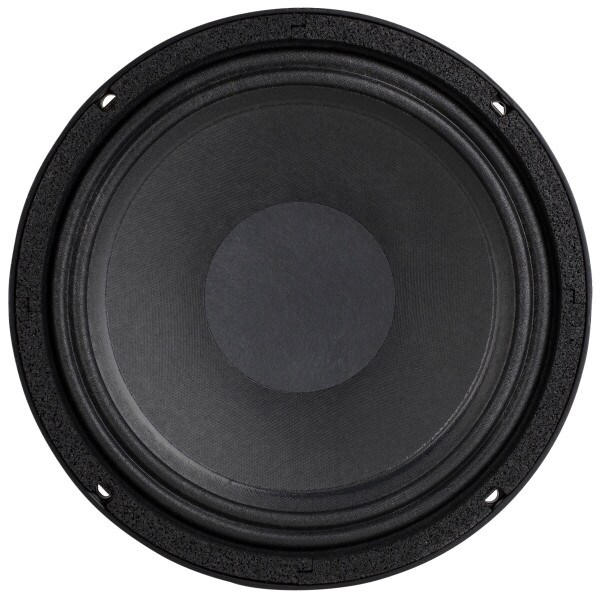

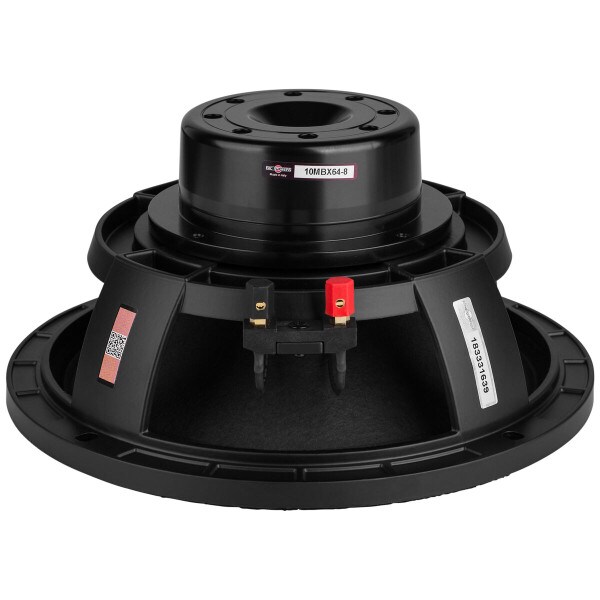

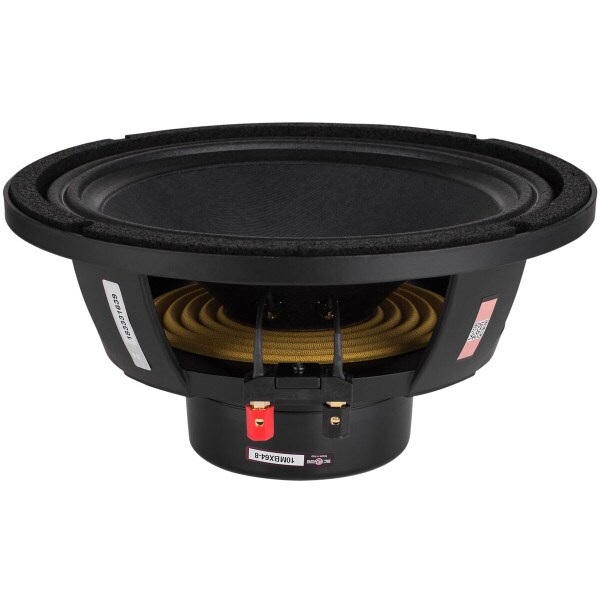

B&C 10MBX64 10" Professional Neodymium Woofer 8 Ohm

B&C Speakers
Part #294-6016

B&C 10MBX64 10" Professional Neodymium Woofer 8 Ohm

B&C Speakers
Part #294-6016
The 10MBX64 from B&C Speakers provides surprisingly wide frequency response and extremely high output making it perfect for use in compact 2-way sound reinforcement systems.
Key Features
  • Neodymium magnet produces more output with less weight
  • Aluminum shorting ring keeps distortion low
  • MBX Series drivers are ideal for use in compact 2-way loudspeaker designs
  • Weatherproof cone for use in less than ideal outdoor conditions
Your Price: $231.90
+ FREE SHIPPING
MSRP: $386.51
Save $154.61 (40%)
Bulk Pricing
Order in the next 1 hr 11 min to ship today. Details

6In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 10MBX64 10" Professional Neodymium Woofer 8 Ohm

The 10MBX64 10" mid-bass woofer from B&C Speakers offers acoustic designers a high efficiency, wide bandwidth driver capable of surprising output levels. This full-featured transducer incorporates a lightweight neodymium motor, inside/outside wound copper clad aluminum wire voice coil, weatherproof hydrophobic paper cone, and a symmetrical inductance profile. Everything about this driver has been designed for reliable and consistent low distortion output even when driven to its limit. All MBX Series drivers are especially well suited for 2-way loudspeaker designs.

Product Details

BrandB&C Speakers
Model10MBX64
Part Number294-6016
UPC848864032597
Unit of MeasureEach
Weight8.55

Product Specifications

Nominal Diameter10"
Bolt Circle Diameter9.65
Power Handling (RMS)350 Watts
Power Handling (MAX)700 Watts
Impedance8Ω
Frequency Response65 to 6,000Hz
Sensitivity99dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)65Hz
DC Resistance (Re)5.4Ω
Voice Coil Inductance (Le)0.44mH
Mechanical Q (Qms)4
Electromagnetic Q (Qes)0.28
Total Q (Qts)0.26
Compliance Equivalent Volume (Vas)0.92ft³
BL Product (BL)17.1T·m
Diaphragm Mass Inc. Airload (Mms)33g
Maximum Linear Excursion (Xmax)4mm
Surface Area of Cone (Sd)53.63cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter10.28"
Baffle Cutout Diameter9.06"
Depth4.92"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.4ft³
Sealed F3219.6Hz
Vented Volume0.75ft³
Vented F375.9Hz
