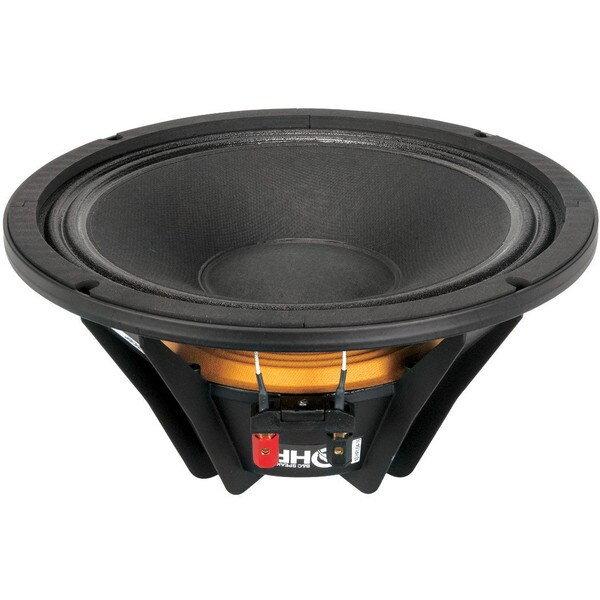

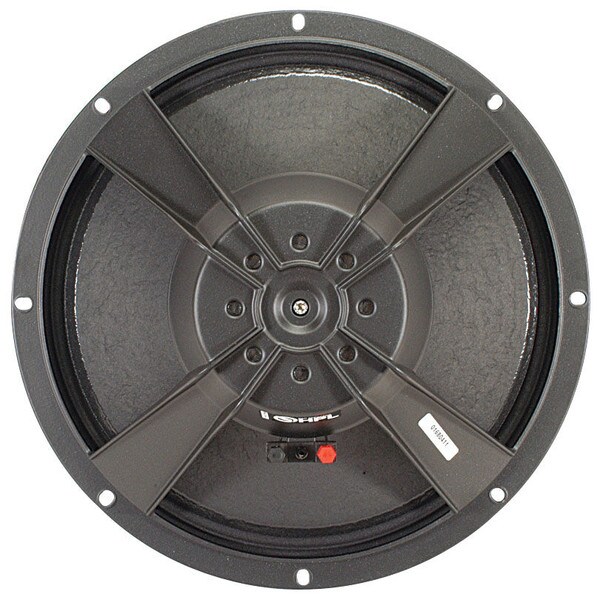

B&C 10HPL64 10" Neodymium Woofer

B&C SpeakersPart # 294-678
Model: 10HPL648M
The B&C Speakers 10HPL64 high efficiency 10" woofer uses an FEA computer-designed neodymium magnet assembly, resulting in an extremely lightweight (only 4.4 lbs.) yet powerful professional speaker.

Key Features

  • High energy neodymium magnet assembly
  • Aluminum basket is designed to dissipate heat
  • High in performance, low in weight
Your Price: $192.78
+ FREE SHIPPING
MSRP: $321.30
Save $128.52 (40%)
Bulk Pricing
Only 3 In Stock
Get Notified When Available

We'll send you an email when B&C 10HPL64 10" Neodymium Woofer is back in stock or available for preorder.

Order in the next 0 hr 46 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 10HPL64 10" Neodymium Woofer

The B&C 10HPL64 10" speaker's cast aluminum basket is designed to effectively dissipate heat during demanding use at full power, reducing power compression. Usefully lightweight thanks to its high-energy neodymium magnet, the 10HPL64 is recommended for compact two-way pro speaker systems in which power is limited to 200 watts RMS or 400 watts program.

Product Details

BrandB&C Speakers
Model10HPL648M
Part Number294-678
UPC844632002243
Unit of MeasureEach
Weight5

Product Specifications

Nominal Diameter10"
Power Handling (RMS)400 Watts
Impedance8Ω
Frequency Response60 to 4,000Hz
Sensitivity99dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)61Hz
DC Resistance (Re)5.4Ω
Voice Coil Inductance (Le)0.5mH
Mechanical Q (Qms)4.5
Electromagnetic Q (Qes)0.33
Total Q (Qts)0.31
Compliance Equivalent Volume (Vas)1.1ft³
BL Product (BL)15T·m
Diaphragm Mass Inc. Airload (Mms)29g
Maximum Linear Excursion (Xmax)4mm
Surface Area of Cone (Sd)320cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter10.3"
Baffle Cutout Diameter8.8"
Depth4.8"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.4ft³
Sealed F3160.9Hz
Vented Volume1ft³
Vented F365.1Hz
