B&C 10CXN64-8 10" Professional Neodymium Coaxial Speaker 80 x 80 Degree 8 Ohm

5 Questions, 5 Answers or
B&C Speakers
Part #294-5962

B&C 10CXN64-8 10" Professional Neodymium Coaxial Speaker 80 x 80 Degree 8 Ohm

B&C Speakers
Part #294-5962
5 Questions, 5 Answers or

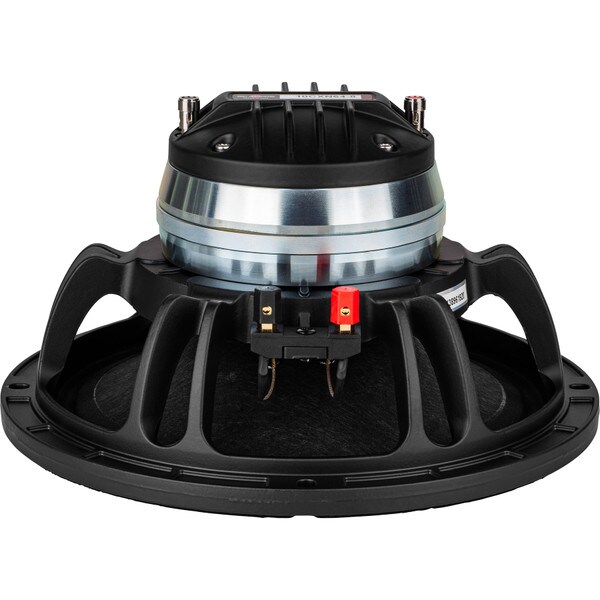

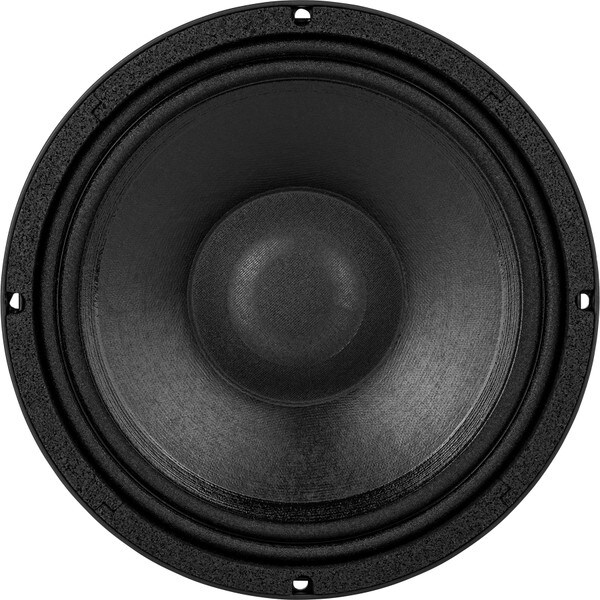

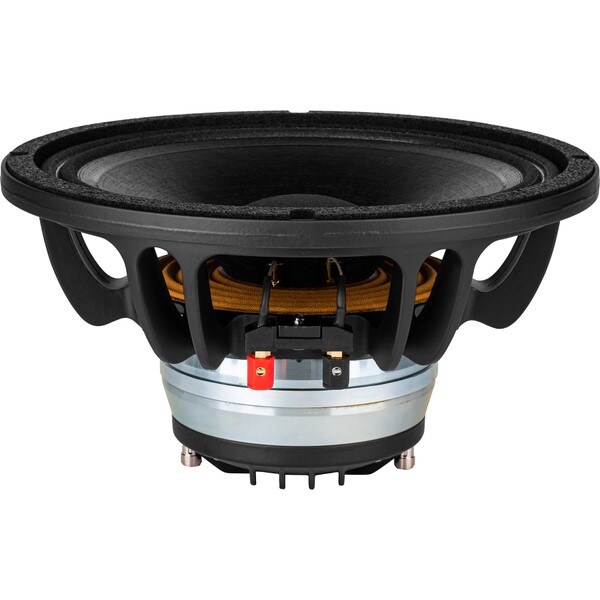

The B&C 10CXN64 10" coaxial speaker uses a single high-strength neodymium motor to drive both the woofer and compression driver. This driver is optimized to produce high output and minimal distortion with the ability to handle frequencies from 70 to 18,000 Hz making it perfect for use in a truly compact point source system.
Key Features
  • 97 dB efficiency with 250 watt power handling for high output capability
  • Compression driver has a 2-1/2" titanium diaphragm for detailed and accurate response
  • Woofer has high excursion capability to produce powerful low frequency response
  • Single high energy neodymium magnet keeps size and weight to a minimum
Your Price: $431.25
+ FREE SHIPPING
MSRP: $718.76
Save $287.51 (40%)
Bulk Pricing
Ships next business day. Details

Only 2 In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 10CXN64-8 10" Professional Neodymium Coaxial Speaker 80 x 80 Degree 8 Ohm

For compact high output point source speaker designs, the 10CXN64 10" professional coaxial driver from B&C Speakers is an excellent choice. This coaxial uses a powerful neodymium magnet to power both the woofer and high frequency compression driver to deliver high efficiency and low distortion while minimizing size and weight. With 5.5 mm xmax the woofer has significant displacement capability for some serious impact and low frequency dynamics. Both the woofer and titanium compression driver use 2-1/2" voice coils for great power handling and high SPL. Thanks to a waterproof treated paper cone, this coaxial driver is even suitable of use in harsh conditions. For high output applications where fidelity at maximum SPL is the primary concern, consider the 10CXN64 10" for ultra compact designs.

Specifications (Woofer): • Power Handling: 250 watts RMS/ 500 watts continuous program • VC dia: 2.5" • Le: 1.1 mH • Impedance: 8 ohms • Re: 5.6 ohms • Frequency response: 70 – 3,000 Hz • Fs: 68 Hz • SPL: 97 dB 2.83V/1m • Vas: 0.81 cu. ft. • Qms: 5.6 • Qes: 0.33 • Qts: 0.31 • Xmax: 5.5 mm.

Specifications (Compression driver): • Diaphragm: Titanium • Power handling: 80 watts RMS/ 160 watts continuous program (with recommended crossover of 1,200 Hz/12 dB slope) • VCdia: 2.5" • Impedance: 8 ohms • Frequency response: 1,200 – 18,000 Hz • SPL: 103 dB 2.83V/1m

Dimensions: • Outside diameter: 10.28" • Cutout diameter: 9.17" • Depth: 5.59"

Product Details

BrandB&C Speakers
Model10CXN64-8
Part Number294-5962
UPC848864063287
Unit of MeasureEach
Weight10.5

Product Specifications

Nominal Diameter10"
Bolt Circle Diameter9.65
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance8Ω
Frequency Response70 to 18,000Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)68Hz
DC Resistance (Re)5.6Ω
Voice Coil Inductance (Le)1.1mH
Mechanical Q (Qms)5.6
Electromagnetic Q (Qes)0.33
Total Q (Qts)0.31
Compliance Equivalent Volume (Vas)0.81ft³
BL Product (BL)15.8T·m
Diaphragm Mass Inc. Airload (Mms)33.5g
Maximum Linear Excursion (Xmax)5.5mm
Surface Area of Cone (Sd)320cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter10.28"
Baffle Cutout Diameter9.17"
Depth5.59"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.3ft³
Sealed F3179.7Hz
Vented Volume1ft³
Vented F366.4Hz
