  • B&C 10CL51 10" Neodymium Woofer

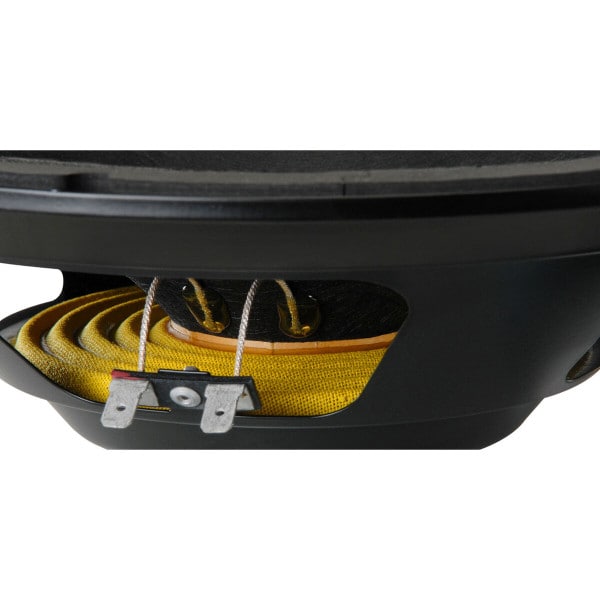

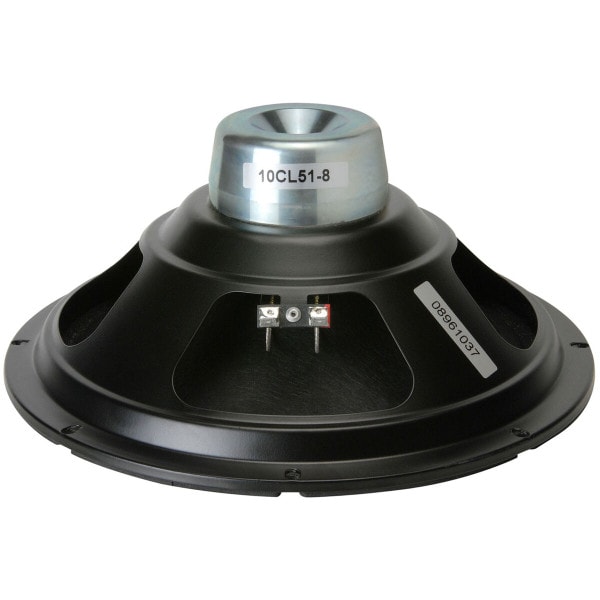

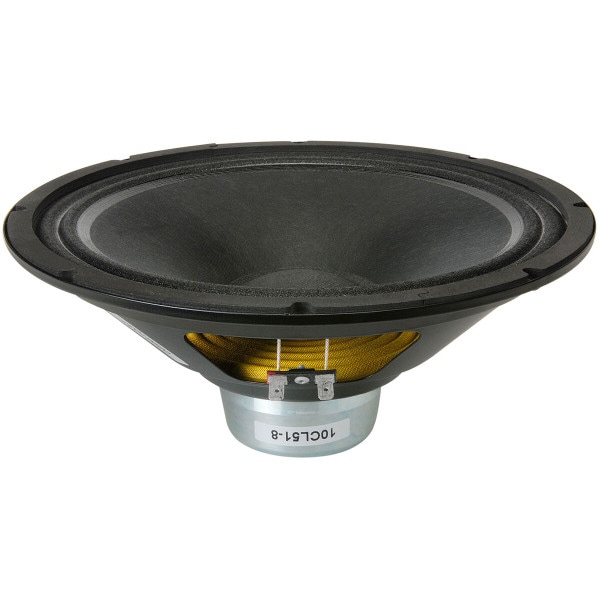

B&C 10CL51 10" Neodymium Woofer

B&C SpeakersPart # 294-693
Model: 10CL51
The B&C 10CL51 10" speaker offers high output and low weight when used in PA and guitar speaker applications.

Key Features

  • Smooth and efficient
  • Lightweight but powerful neodymium magnet
  • Strong but cost effective stamped steel frame
  • 300 watts continuous program power
  • 2" copper voice coil
  • 96 dB 1W/1m sensitivity
  • Net weight: 2.6 lbs.
Your Price: $126.48
+ FREE SHIPPING
MSRP: $210.80
Save $84.32 (40%)
Bulk Pricing
8 In Stock
Get Notified When Available

We'll send you an email when B&C 10CL51 10" Neodymium Woofer is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 10CL51 10" Neodymium Woofer

B&C's CL Series stamped metal frame 10CL51 10" neodymium woofers perform almost identically to B&C's lightweight HPL Series, but at a significantly lower price. They are aimed at the OEM builder, for a wide variety of purposes including premium quality plastic speaker cabinets, bass guitar enclosures, or any system that can benefit from a significant reduction in weight. The 10CL51 offers an excellent alternative to similar performance ceramic magnet drivers.

Product Details

BrandB&C Speakers
Model10CL51
Part Number294-693
UPC844632086205
Unit of MeasureEach
Weight4

Product Specifications

Nominal Diameter10"
Power Handling (RMS)300 Watts
Impedance8Ω
Frequency Response60 to 4,000Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)60Hz
DC Resistance (Re)5.2Ω
Voice Coil Inductance (Le)0.8mH
Mechanical Q (Qms)3.8
Electromagnetic Q (Qes)0.44
Total Q (Qts)0.39
Compliance Equivalent Volume (Vas)1.1ft³
BL Product (BL)12T·m
Diaphragm Mass Inc. Airload (Mms)31.5g
Maximum Linear Excursion (Xmax)5.5mm
Surface Area of Cone (Sd)320cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter10.1"
Baffle Cutout Diameter9.7"
Depth4.25"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.45ft³
Sealed F3121.8Hz
Vented Volume1.13ft³
Vented F358.8Hz
