B-52 Matrix-1500 BBE 3-Ch Plate Amplifier 1200WThe B-52 Matrix-1500 plate amp provides 1200W of power to three-channels. A 700W Class G amplifier powers a subwoofer, while the two 250W Class AB amplifier channels power two satellites.
Build your own cabinets and save a TON!!
The amplifier features an integrated BBE Sonic Maximizer which transforms the system from a flat response to deep lows and pristine highs. The LF contour and HF process allows you to fine tune the response to your venue and sound preferences. A built-in compressor / limiter makes sure to provide your system with protection from clipping.
With a 3rd order Butterworth crossover at 120 Hz, the amplifier provides thundering lows while maintaining the clarity of the top end. The 12dB/octave subsonic filter at 30 Hz helps clean up the muddiness of the low end. Adjust the sub phase with a 0/180 degree phase switch to ensure your system sounds the best it can. Combo XLR / 1/4" balanced stereo inputs and full range outputs, along with an unbalanced RCA inputs, allow for the amp to be used in a many situations. Each channel features level controls to fine tune the PA system. Thermal and short circuit protection circuitry along with efficient and quiet 2-speed fan cooling protects the amplifier.
Great for building pro PA systems, the B-52 Matrix-1500 provides the centerpiece amp for mobile DJ, installation, corporate audio, and live sound system builds.
Details:
• System Power: 1200W (700 SUB + 2 x 250 SATs)
• Input Impedance: 20k Ohm Balanced/ 10k Ohm Unbalanced
• Woofer low pass filter: 118 Hz, 18 dB/octave Butterworth
• Satellite high pass filter: 131 Hz, 18 dB/octave Butterworth
• Input Sensitivity: 775mV (0dBu)
• Controls: Right and Left Level Knobs, Sub Level Knob, BBE ON/OFF, BBE HF Process, LF Contour, Ground lift switch, Power switch, Sub Phase Switch, 115/230V switch
• Indicators: Power, Protect, Limit, Signal
• Cooling: 2 Speed Fan
• Amplifier Protection: Short circuit, Clip-limiter, Overheat mute, SOA output stage, Driver DC protection, Turn-on mute and soft ramp, Turn-on inrush current limiting
• Power Consumption (1/8 power pink noise): 5A
• Connectors: Balanced female XLR inputs, Balanced male XLR link output, Unbalanced RCA Inputs
For over 30 years, B-52 has manufactured Pro Audio gear in California using only high quality components. We recently acquired tons of product from them so they could free up space in their warehouse. This huge buyout of woofers, compression drivers, horns, crossover components, and cabinet hardware is listed here for a fraction of what you would normally pay. Many drivers in this factory buyout are New Old Stock (NOS) from famous brands and would be considered vintage. Like the B-52 bomber, this factory buyout travels the globe and includes drivers manufactured by famous brands around the world in places like the UK, USA, Denmark, and Brazil. This is a one-time buyout opportunity so quantities are limited.
Note: This product is manufactured in China
Specifications: • System power 1200W - 700W sub and 2 x 250W satellites • Input impedance 20k ohms balanced / 10k ohms unbalanced • Crossover: 3rd order Butterworth at 100 Hz • Subsonic filter: 12 dB/octave @ 30 Hz • Connectors: Balanced female XLR inputs, balanced male XLR link outputs, unbalanced RCA inputs, Speakon outputs • Input sensitivity: 775mV (0 dBu). Dimensions: 17.25" H x 22.25" W x 3.75" D • Cutout dimensions: 15" x 20.25".

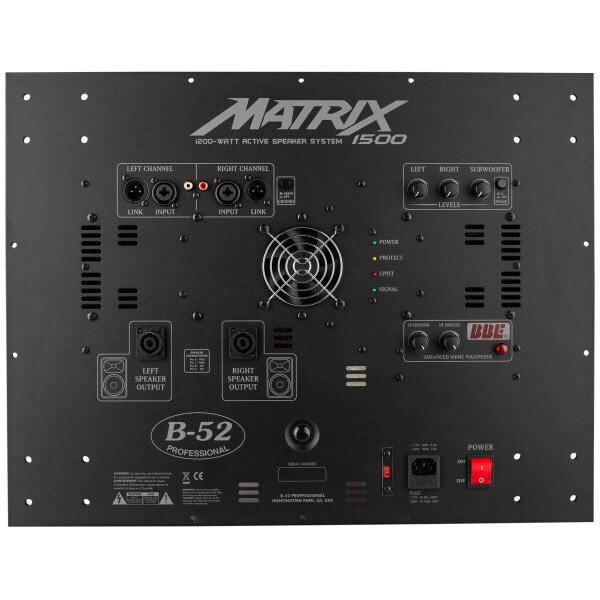

Matrix-1500 Rear Panel Subwoofer Connection
