Overview

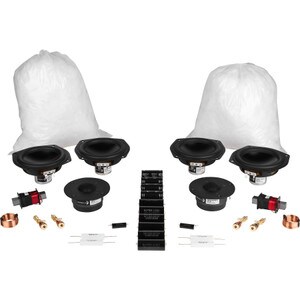

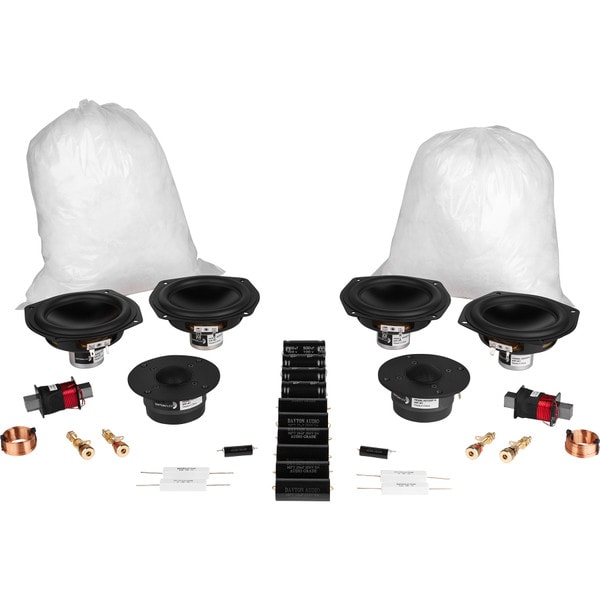

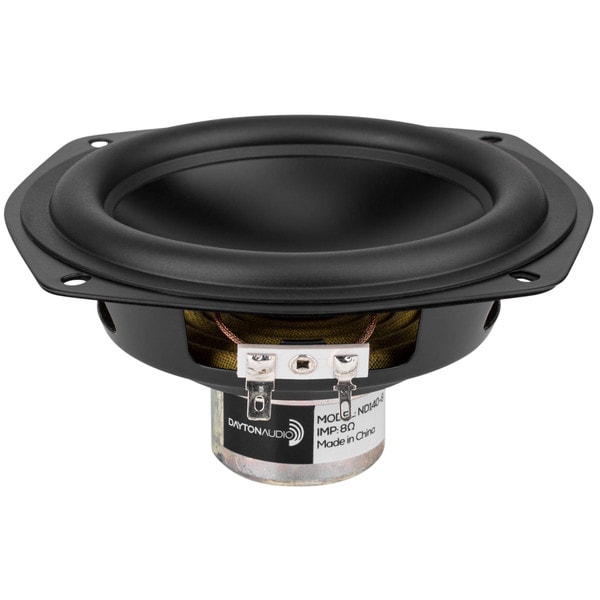

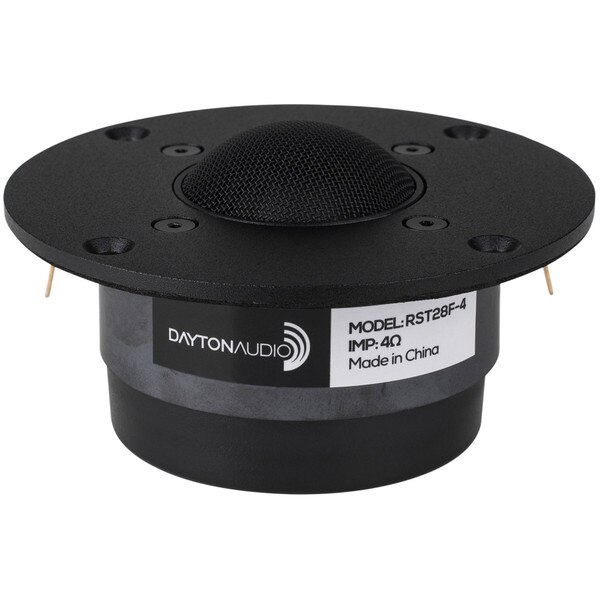

This AviaTrix-RST MTM components kit contains everything required to construct the sealed or mass loaded transmission line version of the MTM AviaTrix-RST speaker project. The crossover for this new version of the best selling Aviatrix MTM has been redesigned by Curt Campbell to use the Dayton Audio RST28F-4 fabric dome tweeter and deliver almost exactly the same sound that made the original Axiatrix speaker design so popular. The sealed version of the AviaTrix-RST uses a compact 0.53 cubic foot enclosure for center channel or as smaller mains—the F3 models below 60 Hz with an F10 of 40 Hz, and will integrate well with a subwoofer. The mass loaded transmission line version will result in an F3 in the mid 40's making it suitable for use even without a subwoofer. The AviaTrix-RST MTM has adequate bass extension and can be used as a stand alone speaker system for 2-channel music. At the heart of the components kit are two Dayton Audio RST28F-4 1-1/8" silk dome tweeters and four Dayton Audio ND140-8 5-1/4" aluminum cone midbass drivers.
Check the speaker project that inspired the Aviatrix Kit.
Note: Speaker wire and mounting screws are not included
Specifications:
• Power handling: 80 watts RMS/160 watts max
• Frequency response: 40-20,000 Hz
• Impedance: 6 ohms
• Sensitivity: 86 dB 1W/1m
• Dimensions: 18.5" H x 7.5" W x 10" D
Note: Crossover components may be substituted with parts of equal or higher quality depending on available inventory.
