Avel Lindberg Y236801 500VA 25V+25V Toroidal Transformer

Avel Lindberg
Part #122-655

Avel Lindberg Y236801 500VA 25V+25V Toroidal Transformer

Avel Lindberg
Part #122-655
Model: Y236801

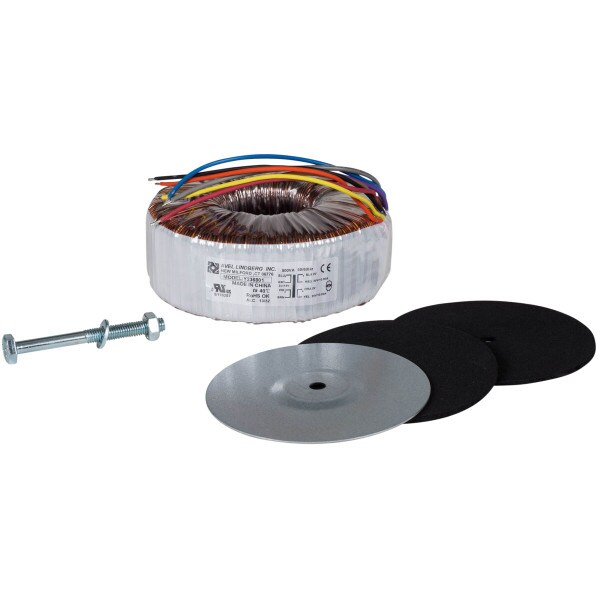

Transformers are wound with heavy gauge copper and are wrapped with polyester tape. Meeting all major industry standards, these include double-insulated primary leads and a mounting kit with plate, pads, nut, and bolt.
Your Price: $99.98
+ FREE SHIPPING
MSRP: $152.99
Save $53.01 (35%)
Bulk Pricing

Out of Stock

Special Order Items ships in 10-15 days
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details

Overview

Avel Lindberg Y236801 500VA 25V+25V Toroidal Transformer

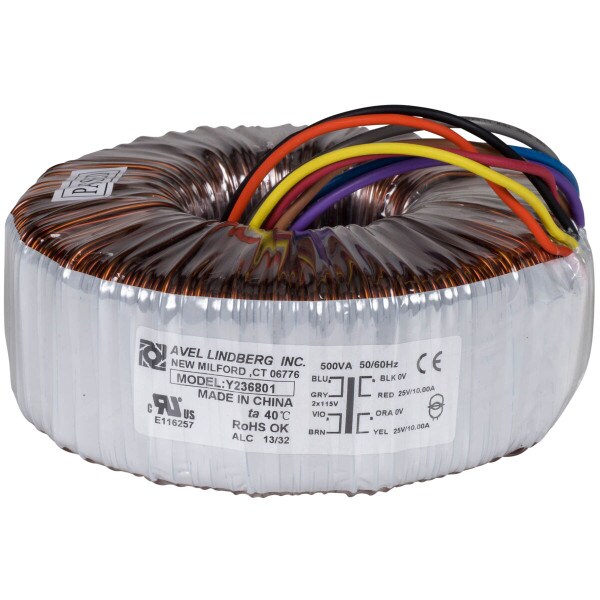

AVEL's Y23 series power transformers offer exceptional value and performance for use in any high-quality power supply. All Y23 transformers are wound with heavy gauge copper and are wrapped with polyester tape. Meeting all major industry standards, these include double-insulated primary leads and a mounting kit with plate, pads, nut, and bolt. Other features include: 3% secondary tolerance at full load, 6" stranded copper leads with PVC insulation, and UL506/ CSA 22.2 and CE certifications

Specifications: • Primaries: 115V + 115V • Frequency: 50/60 Hz • Load Capacity: 500 VA • Secondary Voltage: 25V + 25V • Dimensions: 5.3" D x 2.2" H • Weight: 8.8 lbs.

Product Details

BrandAvel Lindberg
ModelY236801
Part Number122-655
UPC844632051104
Unit of MeasureEach
Weight9.4
