  • Avel Lindberg Y236102 30VA 12V+12V Toroidal Transformer

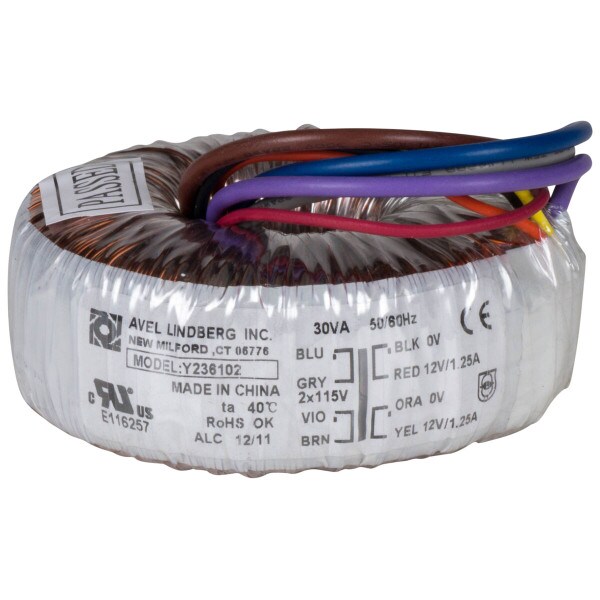

Avel Lindberg Y236102 30VA 12V+12V Toroidal Transformer

Avel LindbergPart # 122-600
Model: Y236102

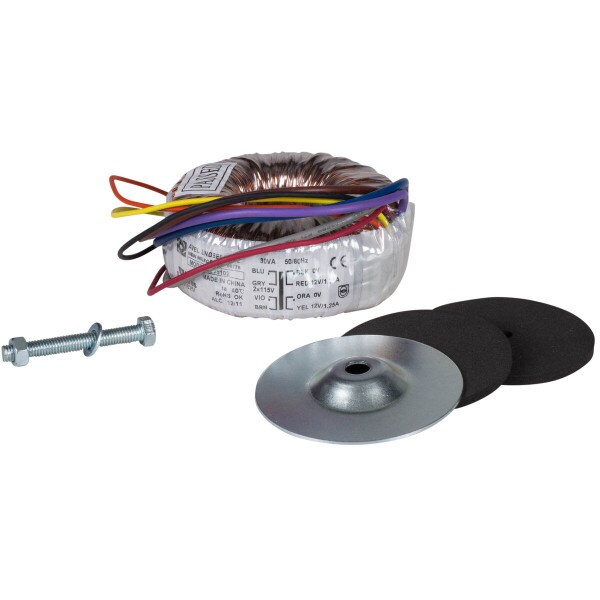

Transformers are wound with heavy gauge copper and are wrapped with polyester tape. Meeting all major industry standards, these include double-insulated primary leads and a mounting kit with plate, pads, nut, and bolt.
Your Price: $31.98
MSRP: $47.99
Save $16.01 (33%)
Bulk Pricing
Quantity:Qty: 1-3 $31.98/ea
Quantity:Qty: 4+ $30.88/ea
Out of Stock
Get Notified When Available

We'll send you an email when Avel Lindberg Y236102 30VA 12V+12V Toroidal Transformer is back in stock or available for preorder.

Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Avel Lindberg Y236102 30VA 12V+12V Toroidal Transformer

AVEL's Y23 series power transformers offer exceptional value and performance for use in any high-quality power supply. All Y23 transformers are wound with heavy gauge copper and are wrapped with polyester tape. Meeting all major industry standards, these include double-insulated primary leads and a mounting kit with plate, pads, nut, and bolt. Other features include: 3% secondary tolerance at full load, 6" stranded copper leads with PVC insulation, and UL506/ CSA 22.2 and CE certifications

Specifications:  • Primaries: 115V + 115V • Frequency: 50/60 Hz • Load Capacity: 30 VA • Secondary Voltage: 12V + 12V • Dimensions: 2.6" D x 1.1" H  • Weight: 0.88 lbs.

Product Details

BrandAvel Lindberg
ModelY236102
Part Number122-600
UPC844632050992
Unit of MeasureEach
Weight1.14
