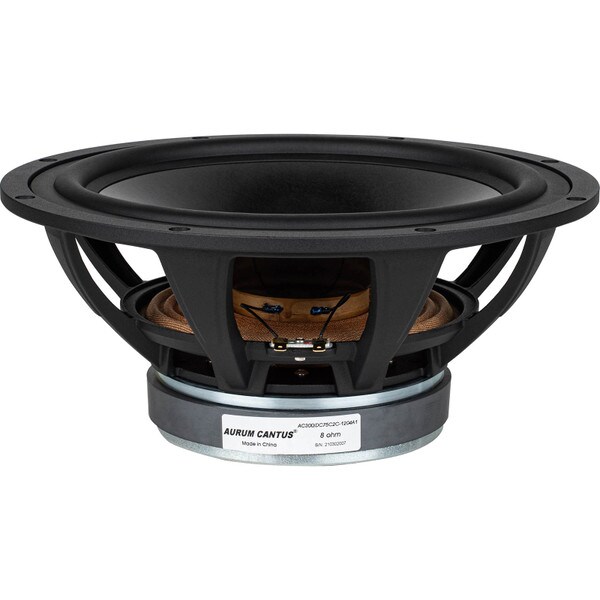

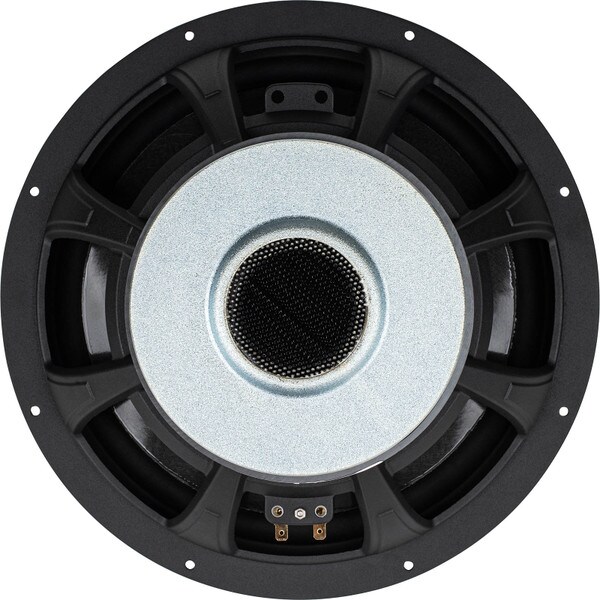

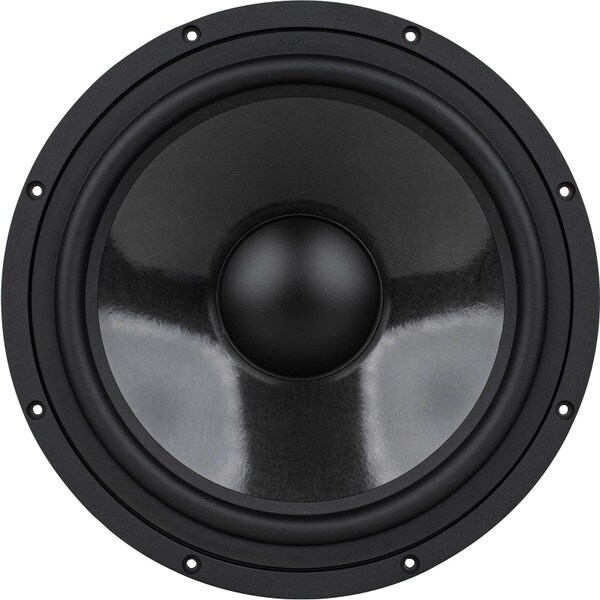

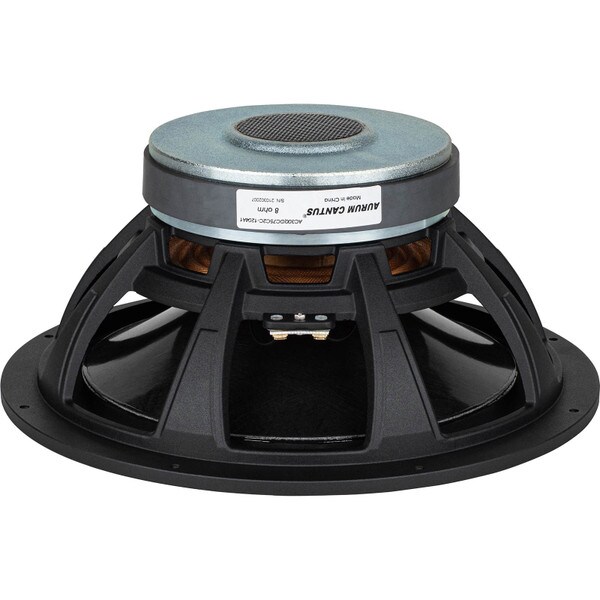

Aurum Cantus AC300/75C2C 12" Woofer

Aurum Cantus
Part #296-458

Aurum Cantus AC300/75C2C 12" Woofer

Aurum Cantus
Part #296-458
Model: AC500/75C2C
The Aurum Cantus AC300/75C2C 12" woofer features a 3" diameter voice coil, which combined with extensive thermal management techniques provides outstanding power handling and realistic impact.
Key Features
  • Non-woven carbon fiber sandwich cone
  • Large 3" diameter copper-clad aluminum flat wire voice coil maximizes dynamic range
  • Round cast aluminum alloy frame is strong; easy to flush mount
  • Powerful magnet structure features distortion-canceling fixtures
  • Long-throw design and good Xmax for strong bass
  • Vented pole piece and under-spider openings reduce power compression
Your Price: $324.98
+ FREE SHIPPING
MSRP: $434.99
Save $110.01 (25%)
Bulk Pricing
Quantity:Qty: 1-3 $324.98/ea
Quantity:Qty: 4+$305.31/ea

Back-Ordered

Estimated back in stock 7/30/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Aurum Cantus AC300/75C2C 12" Woofer

The Aurum Cantus AC300/75C2C 12" woofer features a 3" diameter voice coil, which combined with extensive thermal management techniques provides outstanding power handling and realistic impact. The tailored response of the speaker's exotic yet supremely engineered non-woven carbon fiber sandwich cone delivers the signature Aurum Cantus combination of depth, accuracy, and listenability. A copper-plated flat aluminum wire voice coil provides high efficiency and excellent power handling, complemented by a low-distortion magnet system and precisely cast aluminum alloy basket. Aurum Cantus woofers are characterized by fast transient response, minimal tonal coloration, and deep, dynamic bass.

Product Details

BrandAurum Cantus
ModelAC500/75C2C
Part Number296-458
UPC844632089206
Unit of MeasureEach
Weight15.4

Product Specifications

Nominal Diameter12"
Power Handling (RMS)250 Watts
Power Handling (MAX)375 Watts
Impedance8Ω
Frequency Response22 to 2,800Hz
Sensitivity91dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)22Hz
DC Resistance (Re)7Ω
Voice Coil Inductance (Le)1.31mH
Mechanical Q (Qms)2.16
Electromagnetic Q (Qes)0.42
Total Q (Qts)0.35
Compliance Equivalent Volume (Vas)8.19ft³
Mechanical Compliance of Suspension (Cms)0.65mm/N
BL Product (BL)13.2T·m
Diaphragm Mass Inc. Airload (Mms)84g
Maximum Linear Excursion (Xmax)8.5mm
Surface Area of Cone (Sd)500cm²

Materials of Construction

Cone MaterialCarbon Fiber
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.99"
Baffle Cutout Diameter11.1"
Depth5.59"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.75ft³
Sealed F350.4Hz
Vented Volume2.75ft³
Vented F329Hz
