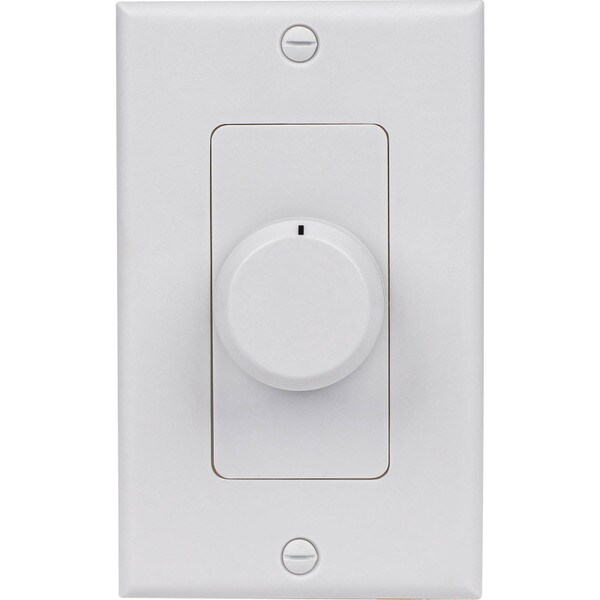

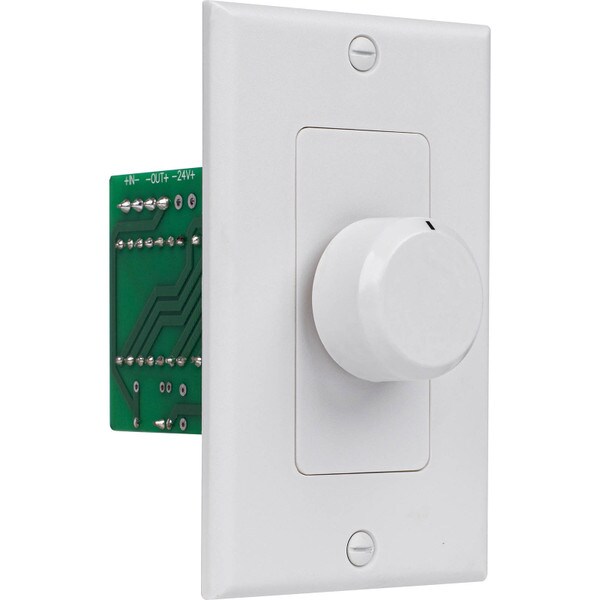

  • Audtek VC70-50R 70V Rotary Speaker Volume Control 50W

CLEARANCE Audtek VC70-50R 70V Rotary Speaker Volume Control 50W

Audtek ElectronicsPart # 300-558
Model: VC70-50R
1 Question, 1 Answer or
The Audtek VC70-50R Impedance Matching Rotary 50W Volume Control gives you 10 indented attenuation steps for use with any 70v speakers. Independent grounds allow you to use the volume control with any amplifier.

Key Features

  • 10 indented attenuation steps from no signal to full signal with no signal quality loss
  • Impedance matching design for use with any 70v speakers
  • Fits into most deep single gang electrical junction boxes

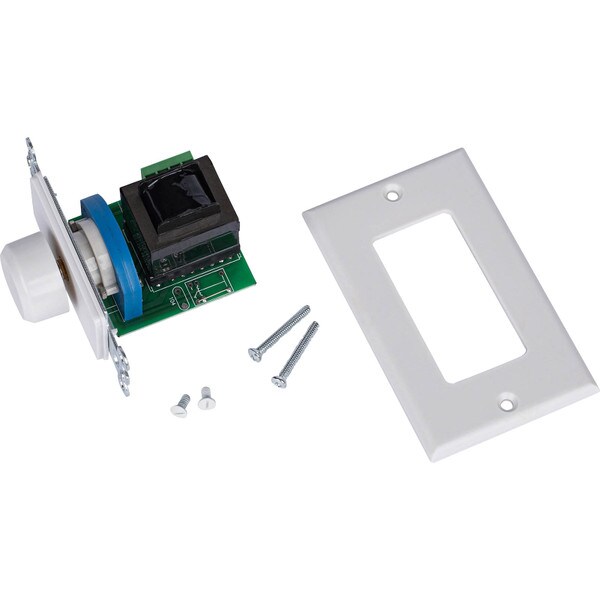

  • Includes matching white wall plate
Similar items that may interest you:
Audtek VC70-R50-v2 70V Rotary Speaker Volume Control 50W
Price: $17.98Part # 300-551
See all items in Attenuators / Auto-Transformers
Get Notified When Available

We'll send you an email when Audtek VC70-50R 70V Rotary Speaker Volume Control 50W is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Audtek VC70-50R 70V Rotary Speaker Volume Control 50W

The Audtek VC70-50R Impedance Matching Rotary 50W Volume Control gives you 10 indented attenuation steps for use with any 70v speakers. High-quality components ensure no signal quality loss while attenuating. A broad frequency response retains a tight low-end response and crisp highs. Phoenix-type connectors accept up to 16 AWG to simplify the installation process.

Specifications

  • Type: Rotary Matching Impedance
  • Power Handling: 50w
  • Speaker Compatibility: 70v
  • Attenuation Steps: 10 (step 1 is no signal, steps 2-7 at 3dB each, step 8-9 at 6dB each, step 10 is full signal.)
  • Frequency Response: 20hz - 20kHz
  • Input / Output Connections: 16AWG Phoenix-type connectors
  • Size: Standard Single Gang
  • Dimensions: 1-3/4" x 4" x 3-1/2"

Product Details

BrandAudtek Electronics
ModelVC70-50R
Part Number300-558
UPC848864066974
Unit of MeasureEach
Weight0.65
