  • Audtek SSW-8 Speaker Selector Switch Impedance Matching 1 In 8 Out

CLEARANCE Audtek SSW-8 Speaker Selector Switch Impedance Matching 1 In 8 Out

Audtek ElectronicsPart # 300-975
Model: SSW-8
The Audtek SSW-8 low-profile speaker selector box allows you to distribute a stereo amplifier to eight separate zones. Front plate zone selection buttons make it easy to turn zones on and off. Built-in selectable protection circuit ensures total impedance does not drop below unsafe operating levels.

Key Features

  • Distribute a stereo speaker level signal across up to eight listening areas

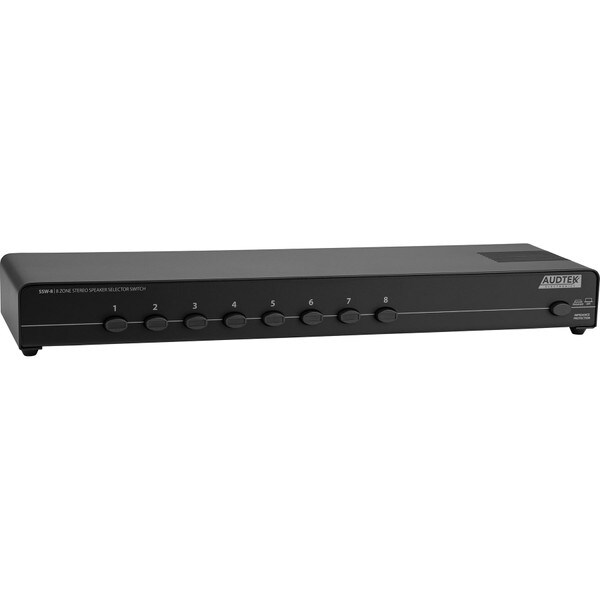

  • Easily turn zones on and off from ergonomic front panel zone selection buttons
  • Selectable protection circuit to ensure total impedance does not drop below 5 ohms
  • High-quality push-pin terminals accept up to 14 AWG for long cable runs
CLEARANCE $39.98
MSRP: $49.99
Save $10.01 (20%)
Bulk Pricing
75 In Stock
Get Notified When Available

We'll send you an email when Audtek SSW-8 Speaker Selector Switch Impedance Matching 1 In 8 Out is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Audtek SSW-8 Speaker Selector Switch Impedance Matching 1 In 8 Out

The Audtek SSW-8 low-profile speaker selector box allows you to distribute a stereo amplifier to eight separate zones. Accepting stereo speaker-level (amplified) signal, the SSW-8 provides up to 200 WPC for your zones. Front plate zone selection buttons make it easy to turn zones on and off.

Including a manually activated impedance protection circuit that can be turned ON, the SSW-8 prevents the impedance to your amplifier from dropping below an unsafe level of 5 ohms. The protection circuit ensures proper performance regardless of the number and impedance ratings of your speakers. The protector switch can also be turned off when used as part of a planned system of impedance matching volume controls, allowing you to get most out of your amplifier.

Specifications:


• Output zones: 8 x Stereo
• Protection circuit resistors: 3 x 10 ohm/15 WPC
• Power handling (protection on): 100 WPC
• Power handling (protection off): 200 WPC

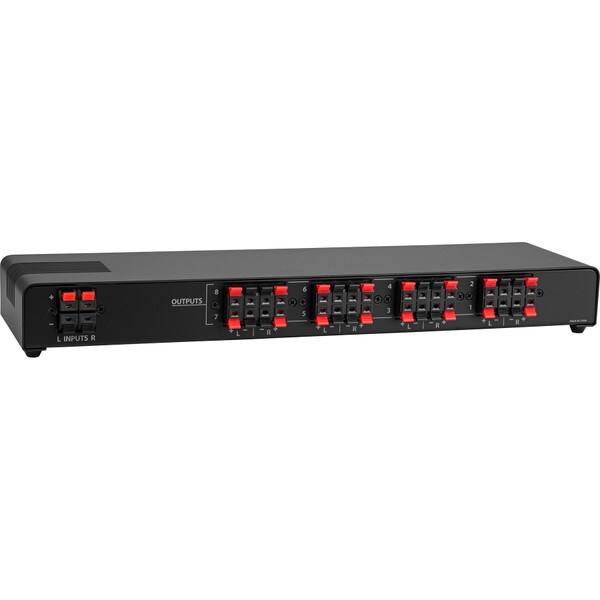

• Input connections: 1 x high-level with push-pin terminals (up to 14 AWG)
• Output connections: 4 x push-pin terminals (up to 14 AWG)
• Dimensions: 17" x 4.4" x 1.9"

Product Details

BrandAudtek Electronics
ModelSSW-8
Part Number300-975
UPC848864063133
Unit of MeasureEach
Weight4.35
