  • Audtek SSW-4 Speaker Selector Switch Impedance Matching 1 In 4 Out

CLEARANCE Audtek SSW-4 Speaker Selector Switch Impedance Matching 1 In 4 Out

Audtek ElectronicsPart # 300-971
Model: SSW-4
The Audtek SSW-4 low-profile speaker selector box allows you to distribute a stereo amplifier to four separate zones. Front plate zone selection buttons make it easy to turn zones on and off. Built-in selectable protection circuit ensures total impedance does not drop below unsafe operating levels.

Key Features

  • Distribute a stereo speaker level signal across up to four listening areas
  • Easily turn zones on and off from ergonomic front panel zone selection buttons
  • Selectable protection circuit to ensure total impedance does not drop below 5 ohms
  • High-quality push-pin terminals accept up to 14 AWG for long cable runs
Get Notified When Available

We'll send you an email when Audtek SSW-4 Speaker Selector Switch Impedance Matching 1 In 4 Out is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Audtek SSW-4 Speaker Selector Switch Impedance Matching 1 In 4 Out

The Audtek SSW-4 low-profile speaker selector box allows you to distribute a stereo amplifier to four separate zones. Accepting stereo speaker-level (amplified) signal, the SSW-4 provides up to 140 WPC for your zones. Front plate zone selection buttons make it easy to turn zones on and off.

Including a manually activated impedance protection circuit that can be turned ON, the SSW-4 prevents the impedance to your amplifier from dropping below an unsafe level of 5 ohms. The protection circuit ensures proper performance regardless of the number and impedance ratings of your speakers. The protector switch can also be turned off when used as part of a planned system of impedance matching volume controls, allowing you to get most out of your amplifier.

Specifications:


• Output zones: 4 x Stereo
• Protection circuit resistors: 2 x 10 ohm/15 WPC
• Power handling (protection on): 70 WPC
• Power handling (protection off): 140 WPC

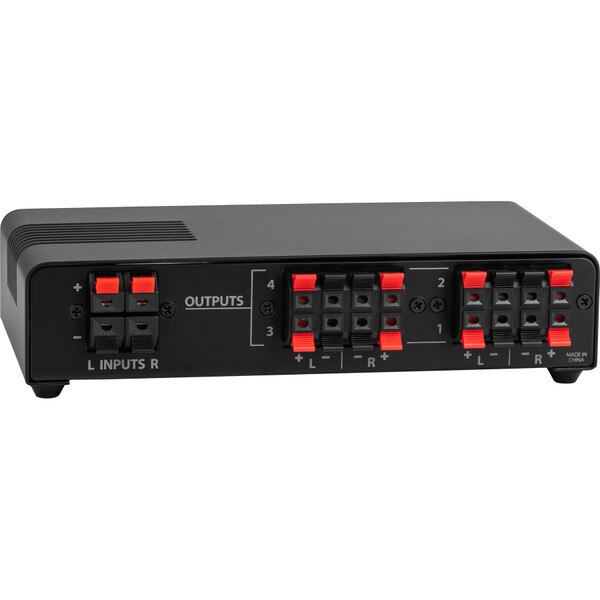

• Input connections: 1 x high-level with push-pin terminals (up to 14 AWG)
• Output connections: 4 x push-pin terminals (up to 14 AWG)
• Dimensions: 8.5" x 4.4" x 1.9"

Product Details

BrandAudtek Electronics
ModelSSW-4
Part Number300-971
UPC848864063096
Unit of MeasureEach
Weight2.6
