The all new System 10 PRO rack mount digital wireless system from Audio-Technica provides the same interference-free operation in the 2.4 GHz range (outside TV bands) as the original System 10 wireless system, but with even more features and versatility. The durable half rack chassis is equipped to house two receiver units that can be operated locally or released from the chassis and mounted remotely (up to 328 feet away) via Ethernet cable. Up to five chassis (10 receiver units) can be linked using the RJ12 cable included with each system, creating a stable, multichannel system with the simultaneous use of up to 10 channels.
Like all the products in the System 10 wireless family, the PRO Series features 24-bit operation, easy setup, clear, natural sound quality, and three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Space Diversity uses two antennas on each transmitter and receiver unit to maximize signal integrity.

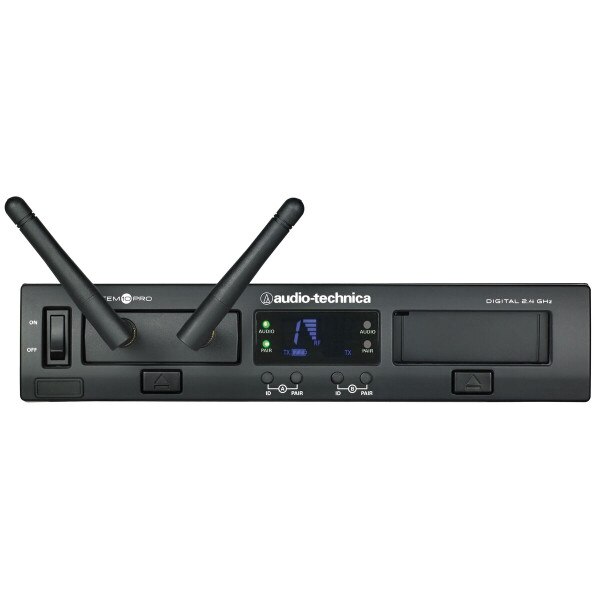

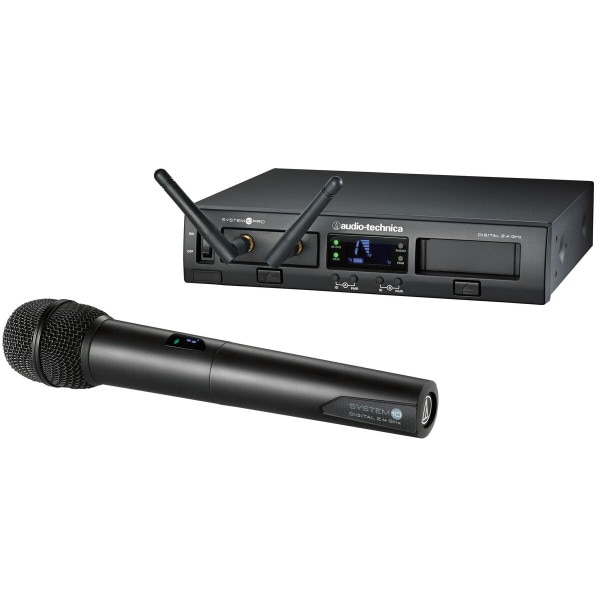

The ATW-1302 system includes an ATW-RC13 receiver chassis with rack-mount adapters, one ATW-RU13 receiver unit with mounting brackets, a joining plate, one RJ12 cable, an AC adapter, and the ATW-T1002 handheld microphone / transmitter. Both the receiver chassis and transmitters feature bright, easy-to-read displays.
Overall System Specifications: • Operating frequency: 2.4 GHz ISM band • Dynamic range: >109 dB (A-weighted, typical) • Total Harmonic Distortion: <0.05% typical • Operating range: 200 feet (60 m) (typical, open range environment with no interfering signals) • Operating temperature range: 0° C to 40° C (32° F to 104° F) (battery performance may be reduced at very low temperatures) • Frequency response: 20 Hz to 20,000 Hz (dependent upon microphone type).
Receiver Specifications: • Receiving system: Diversity (frequency/time/space) • Maximum output level: 0 dBV (XLR, balanced); +6 dBV (1/4", unbalanced) • Power supply (included): 100-240 VAC (50/60 Hz) to 12V DC 0.5A (center positive) switched mode external power supply • Dimensions: 8.26" x 1.73" x 6.67" (210 x 44 x 169 mm) • Net weight: 33.2 oz. (565 grams).

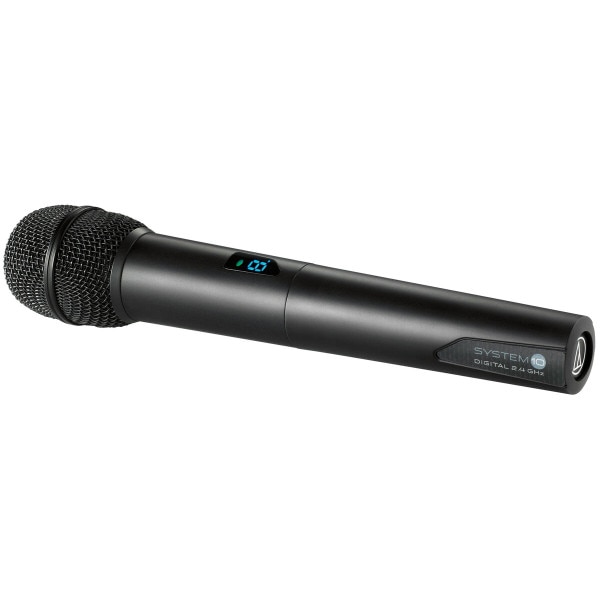

ATW-T1002 Handheld Transmitter Specifications: • RF power output: 10 mW • Spurious emissions: Following federal and national regulations • Batteries: Two 1.5V AA (not included) • Battery life: >7 hours (alkaline, depending on battery type and use pattern) • Dimensions: 10.03" x 1.97" (254.8 x 50 mm) • Net weight: 9.9 oz. (280 grams) (less batteries).
