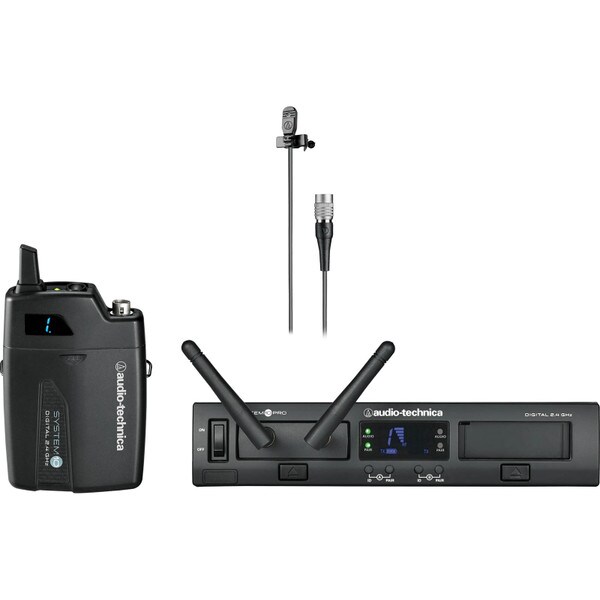

Audio-Technica ATW-1301/L System 10 PRO Digital Wireless Lavalier SystemMuch like all the other members of the System 10 wireless family, the PRO Rack-Mount offers 24-bit performance, effortless setup, crystal-clear and authentic sound quality, and three layers of diversity assurance: frequency, time, and space. Frequency Diversity transmits the signal over two dynamically allocated frequencies to ensure interference-free communication. Time Diversity sends the signal in multiple time slots, maximizing resistance to multipath interference. Space Diversity employs two antennas on both the transmitter and receiver units, optimizing signal integrity.
Each System 10 PRO Rack-Mount system includes an ATW-RC13 receiver chassis with rack-mount adapters, one or two ATW-RU13 receiver units accompanied by corresponding AT8690 receiver unit mounting brackets, a joining plate (exclusive to dual-channel systems), an RJ12 cable, an AC adapter, and one or two transmitters. Transmitter options encompass the ATW-T1001 cW-style body-pack transmitter, ATW-T1002 handheld transmitter, ATW-T1006 boundary microphone/transmitter, and ATW-T1007 microphone desk stand transmitter. Both the receiver chassis and transmitters feature user-friendly displays for convenient operation.
Overall System Specifications:
• Operating frequency: 2.4 GHz ISM band (2400 to 2483.5 MHz)
• Maximum deviation: ±40 kHz
• Dynamic range: > 110 dB (A-weighted), typical
• THD: < 0.05% typical
• Operating range: 60 m (200') typical; open range environment with no interfering signals
• Operating temperature range: 32º F to 104º F (0º C to 40º C)
• Frequency response: 20 Hz to 20 kHz (+1 dB, -3 dB)
Receiver Specifications
• Receiving system: True diversity
• Power requirements: 12V DC, 500 mA
• Dimensions: 8.27" W x 6.67" D x 1.73" H not including BNC connectors or feet
• Accessories included: AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet
Body-Pack Transmitter Specifications:
• RF power output: 10 mW
• Spurious emissions: Following federal and national regulations
• Input connections: Four-pin locking connectors; Pin 1: GND, Pin 2: INST, INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
• Batteries Two 1.5V AA, not included
• Battery life: High 7 hours (alkaline) depending on battery type and use pattern
• Dimensions: 2.76" W x 0.98" D x 4.21" H
