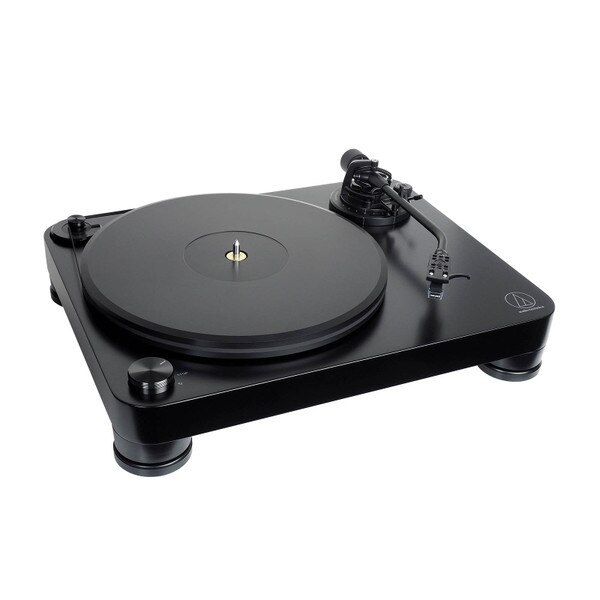

Audio-Technica AT-LP7 Manual Belt-Drive Turntable

Audio-Technica
Part #240-5720

Audio-Technica AT-LP7 Manual Belt-Drive Turntable

Audio-Technica
Part #240-5720
Model: AT-LP7

Established in 1962, Audio-Technica originated as a pioneer in the design and production of premium phonograph cartridges. Introducing the innovative Dual Moving Magnet stereo cartridge, the brand set new standards with exceptional channel separation, extended frequency response, and superb tracking. The AT-LP7 pays homage to this rich heritage.

Key Features
  • Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
  • Motor features a speed-sensor system to maintain accurate platter rotation speed
  • VM520EB Dual Moving Magnet Cartridge provides outstanding channel separation and extended frequency response, and allows for easy replacement with any VM stylus
  • J-shaped tone arm features a metallic gimbal suspension system and precision bearings for excellent tracking
  • Built-in switchable phono pre-amplifier with selectable modes for moving magnet or moving coil cartridges
  • 20 mm-thick, anti-resonance, polyoxymethylene platter
  • Lightweight AT-HS10 headshell
Your Price: $999.00
+ FREE SHIPPING
Bulk Pricing
Order in the next 0 hr 28 min to ship today. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Audio-Technica AT-LP7 Manual Belt-Drive Turntable

Crafted to elevate the quality of your cherished vinyl, the Audio-Technica AT-LP7 boasts exceptional features. The pre-mounted AT VM520EB moving magnet cartridge ensures top-notch performance, while a dense thermoplastic platter effectively minimizes distracting resonant frequencies. The turntable's solid MDF chassis, J-shaped tonearm, and sleek black finish contribute to its aesthetic appeal, matching its impressive sound quality.

Designed with versatility for audiophiles in mind, this turntable offers more options than many others. It comes with its own phono preamp, allowing you to connect to any receiver or directly plug into a pair of powered stereo speakers. Additionally, the phono preamp includes a switch on the back, enabling compatibility with both moving magnet and moving coil cartridges.

Specifications

  • Type 2-speed, fully manual operation
  • Motor DC motor
  • Drive Method Belt drive
  • Speeds 33-1/3 RPM, 45 RPM
  • Turntable Platter Polyoxymethylene
  • Wow and Flutter <0.08% WRMS (33 RPM) at 3 kHz
  • Signal-to-Noise Ratio >60 dB
  • Output Level Pre-amp “PHONO”: 4.5 mV nominal at 1 kHz, 5 cm/sec Pre-amp “LINE (MM)”: 280 mV nominal at 1 kHz, 5 cm/sec
  • Phono Pre-Amp Gain MM: 36 dB nominal, RIAA equalized MC: 56 dB nominal, RIAA equalized
  • Power Supply Requirements 100 to 240 V AC, 50/60 Hz, 0.6 A max.
  • Dimensions 450.0 mm (17.72") W x 352.0 mm (13.86") D x 157.0 mm (6.18") H
  • Weight 8.3 kg (18.30 lbs.), without dust cover
  • Accessories Included VM520EB Dual Moving Magnet stereo cartridge with replaceable stylus; AT-HS10 lightweight headshell; power cord; dual RCA (male) to dual RCA (male) stereo cable; 45 RPM adapter; dust cover
  • Replacement Cartridge: VM520EB
  • Notes: Tonearm Specifications Type: Static balanced J-shaped tonearm Effective length: 247 mm Overhang: 17 mm Maximum tracking error angle: Less than 2.5° Stylus pressure adjustment range: 0 to 2.5 g Applicable cartridge weight range (including headshell): 15 to 20 g

Product Details

BrandAudio-Technica
ModelAT-LP7
Part Number240-5720
Unit of MeasureEach
Weight24.5
