Overview

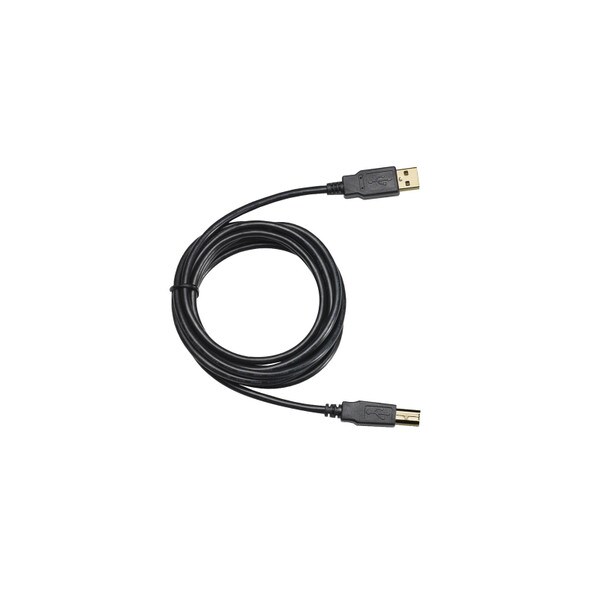

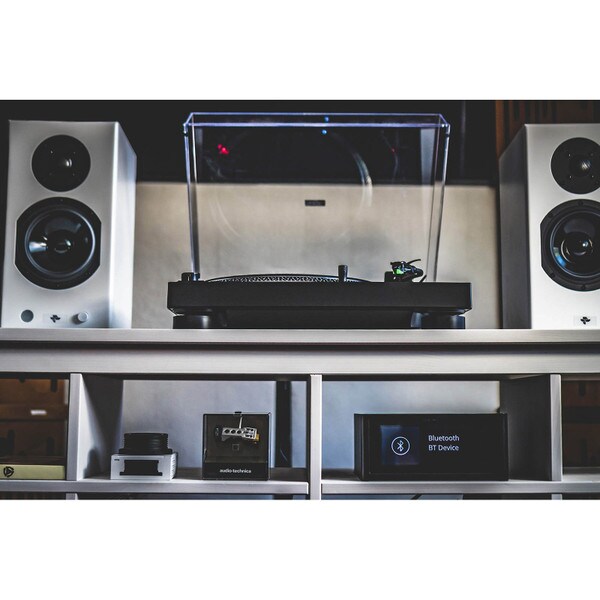

Equipped with a specially designed DC servo direct-drive motor and adjustable dynamic anti-skate control, the AT-LP120XBT-USB seamlessly plays 33-1/3, 45, and 78 RPM records, delivering high-fidelity audio to your chosen device. Utilize the provided RCA output cable and the built-in selectable phono preamp to connect to your home stereo or powered speakers. Alternatively, employ the USB cable to link the turntable to your computer and download the free Audacity recording software, compatible with both Mac and PC, for converting your vinyl records into digital audio files.

For a wireless experience, utilize Bluetooth technology to pair the turntable with speakers, headphones, or other devices supporting the Qualcomm® aptX™ audio codec.

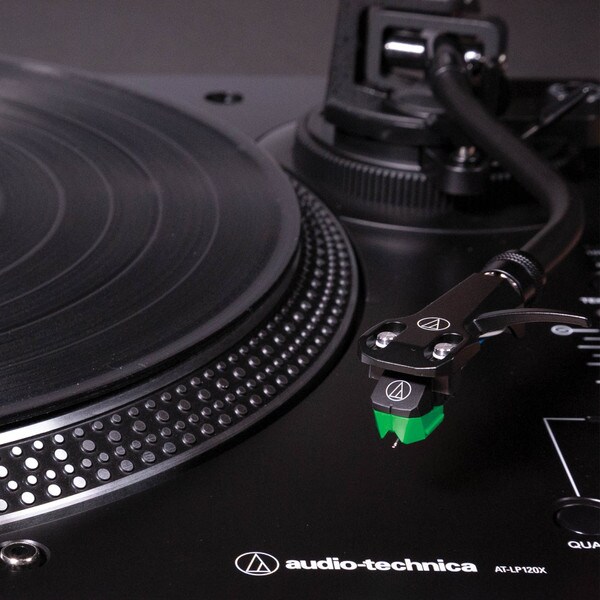

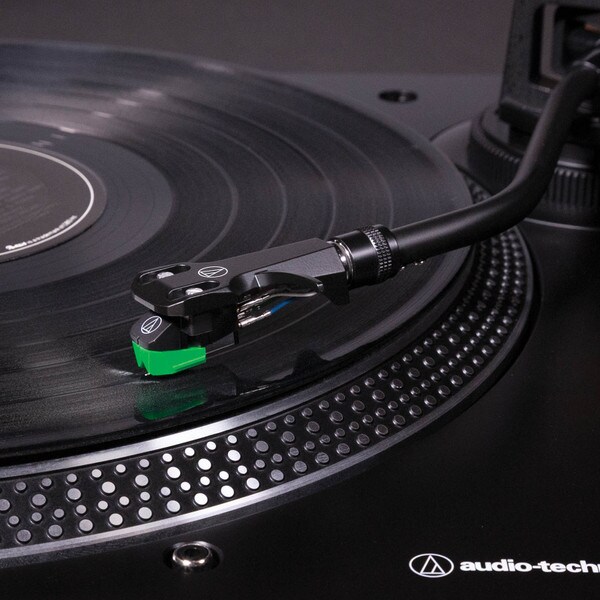

The turntable boasts an S-shaped tonearm with adjustable tracking force and an AT-HS6 universal ½"-mount headshell featuring an AT-VM95E Dual Moving Magnet™ phono cartridge. Drawing on over 50 years of phono cartridge design leadership, Audio-Technica delivers versatility and high performance with the AT-VM95E, equipped with a 0.3 x 0.7 mil elliptical stylus. It is also compatible with any VM95 Series replacement stylus, providing a range of options to suit various budgets and applications.

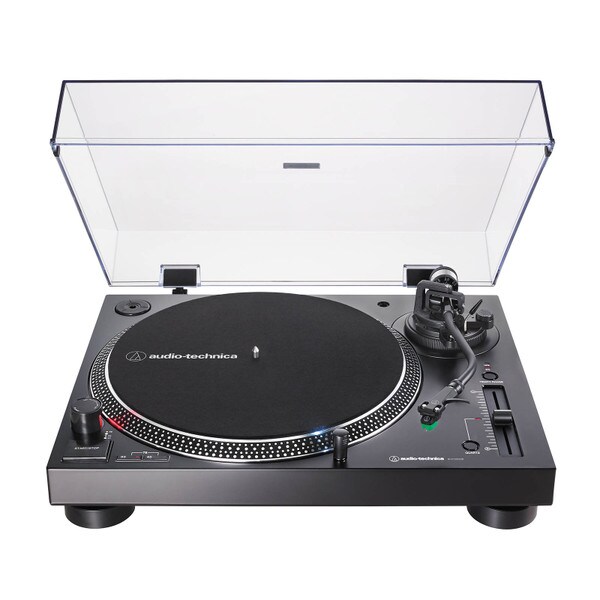

Additional professional features include a die-cast aluminum platter with a felt mat, start/stop button, selectable high-accuracy quartz-controlled pitch lock, pitch change slider control with +/-10% adjustment range, stroboscopic platter with speed indicator, removable plug-type stylus target light, external power supply, and a removable hinged dust cover.

Specifications

  • Type: 3-speed, fully manual operation
  • Motor: DC servo motor
  • Drive Method: Direct drive
  • Speeds: 33-1/3 RPM, 45 RPM, 78 RPM
  • Turntable Platter: Die-cast aluminum
  • Starting Torque: >1.0 kgf.cm
  • Braking System: Electronic brake
  • Wow and Flutter: <0.2% (WTD) @ 3 kHz (JIS)
  • Signal-to-Noise Ratio: >50 dB
  • Output Level:
    -Pre-amp “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec
    -Pre-amp “LINE”: 240 mV nominal at 1 kHz, 5 cm/sec
  • Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized
  • USB Function: A/D, D/A – 16-bit/44.1 kHz or 48 kHz USB selectable; Computer interface – USB 2.0 Compliant Windows 7 or above, or MAC OS X or above
  • Power Supply Requirements: 100 to 240 V, 50/60 Hz, 1.5A Max
  • Power Consumption: 2.75 W
  • Dimensions: 452.0 mm (17.80") W x 352.0 mm (13.86") D x 141.6 mm (5.57") H
  • Weight: 8 kg (17.6 lbs.), without dust cover

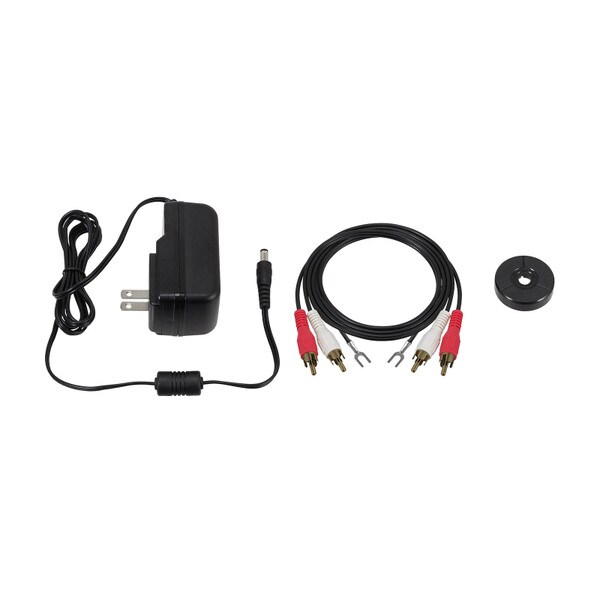

  • Accessories Included: AT-VM95E phono cartridge; AT-HS6 headshell; 1.9 m (6.2') USB cable; dual RCA (male) to dual RCA (male) cable with ground wire; counterweight; felt mat; dust cover; 45 RPM adapter; plug-type stylus target light
  • Tonearm Type: Balanced S-shaped tonearm with detachable headshell
  • Effective Arm Length: 230.5 mm
  • Overhang: 16 mm
  • Tracking Error Angle: Less than 3 degrees
  • Applicable Cartridge Weight: 3.5-8.5 g
  • Anti-skating Range: 0-4 g
  • Replacement Stylus: AT-VMN95E
  • Communication System: Bluetooth Version 5.0
  • Maximum Communication Range: Line of sight - approx. 10 m (33')
  • Compatible Bluetooth Profile: A2DP
  • Support Codec: Qualcomm® aptX™ Adaptive audio, Qualcomm® aptX™ audio, SBC
