  • AtlasIED SM82T-B 8" 2-Way Speaker Black 70V

AtlasIED SM82T-B 8" 2-Way Speaker Black 70V

AtlasIED
Part #242-826

AtlasIED SM82T-B 8" 2-Way Speaker Black 70V

AtlasIED
Part #242-826
Model: SM82T-B

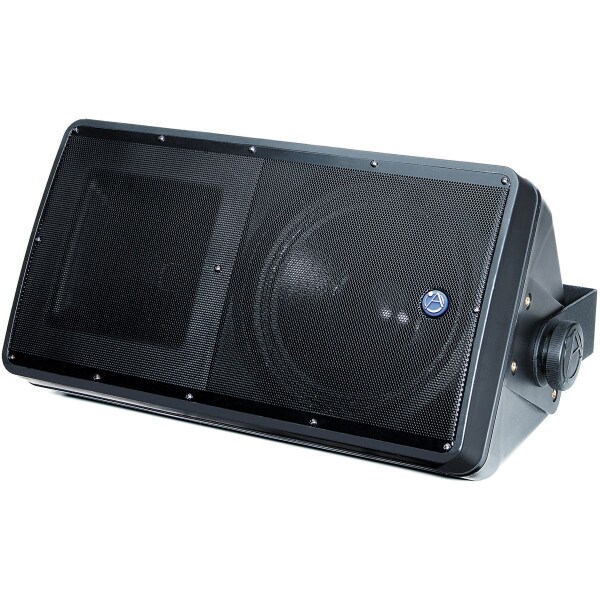

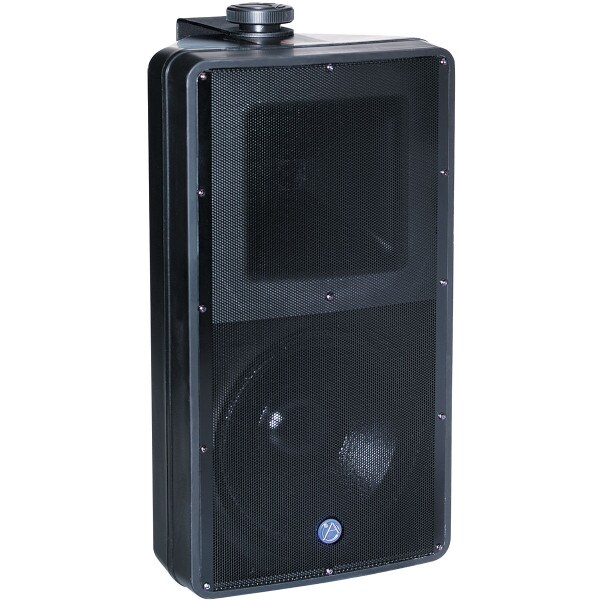

The AtlasIED Strategy Series® II two-way, surface-mount loudspeaker systems are ideal for indoor and outdoor installation in conference rooms & classrooms, boutiques/shops, restaurants/cafes, decks/patios, recreation/sport centers, amusement/theme parks, and houses of worship.

Key Features
  • Weather resistant construction for year-round indoor or outdoor use
  • UV-resistant, talc impregnated, polypropylene injection molded enclosure
  • Powder coated aluminum grill
  • Conforms to stringent 100HR salt spray test per the ASTM B117 standard
  • Color matched heavy-duty C-shaped mounting bracket is included
  • TRX WaveGuide™ high frequency director for vocal and music accuracy and clarity
  • SAE 1/4"-20 brass inserts allow easy integration of "off-the-shelf" security hardware
Similar items that may interest you:
Your Price: $452.99
+ FREE SHIPPING
MSRP: $563.99
Save $111.00 (20%)
Bulk Pricing
Ships next business day. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

AtlasIED SM82T-B 8" 2-Way Speaker Black 70V

The AtlasIED Strategy Series® II two-way, surface-mount loudspeaker systems are ideal for indoor and outdoor installation in conference rooms & classrooms, boutiques/shops, restaurants/cafes, decks/patios, recreation/sport centers, amusement/theme parks, and houses of worship. For surface mount applications where increased output and tighter pattern control in an environment-resistant, contemporarily styled enclosure is required, the SM82 series is the perfect choice. System components consist of a highly efficient 8" HYCONE™ treated woofer and 1" exit titanium compression driver. Sold individually.

Specifications: • Power rating: 60 watts (xfmr. limited) • 70.7V Taps: 1.9, 3.8, 7.5, 15, 30, 60 watts • Frequency response: 65 Hz-20 kHz • Sensitivity: 92 dB 1W/1m • Dispersion 65°H x 65°V • Dimensions (less bracket): 16-1/2" H x 9-1/16" W x 8-7/16" D • Mfg. #SM82T-B.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Product Details

BrandAtlasIED
ModelSM82T-B
Part Number242-826
UPC612079178889
Unit of MeasureEach
Weight22

Product Specifications

ColorBlack
Configuration2-way
Input Rating8 ohm|70V|100V
Woofer Diameter8"
Special FeaturesIndoor / Outdoor-Water Resistant
