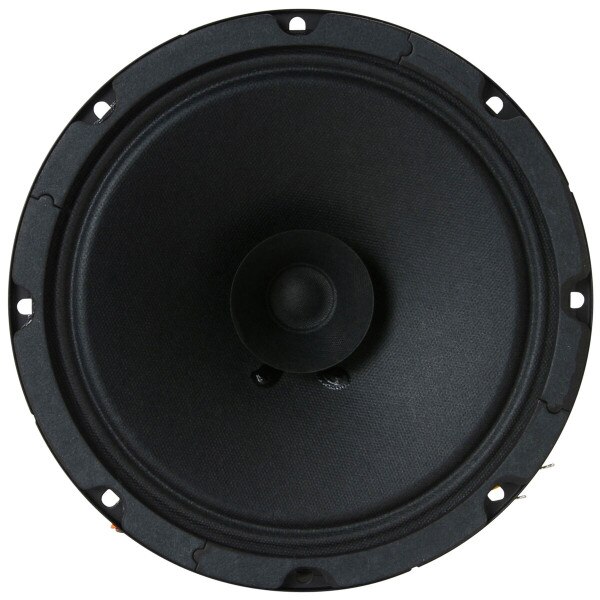

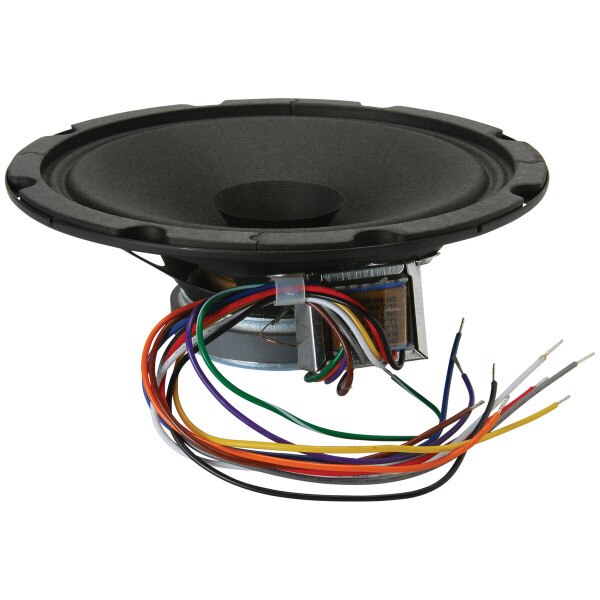

AtlasIED SD72 8" 5 Watt Loudspeaker

Name: AtlasIED SD72 8" 5 Watt Loudspeaker
Brand: AtlasIED
SKU: 242-9411
Price: 34.99 USD
Availability: InStock
Rating: 5 (1 reviews)

AtlasIEDPart # 242-9411

Model: SD72

Read 1 Review | 3 Questions, 3 Answers or

Model SD72 is a dual cone, 25 watt (maximum input @ 8?) 8" (205 mm) loudspeaker with a 10 oz. (260 g) ceramic magnet. It includes a curvilinear, treated paper cone for lower harmonic distortion.

Key Features

5 watt-dual voltage transformer
Individually packaged for stocking & ordering convenience
Quality 10 oz. dual cone speaker provides familiar response & performance

See all items in Commercial Ceiling Speakers

Your Price: $34.99

MSRP: $41.99

Bulk Pricing

In Stock

Get Notified When Available

We'll send you an email when AtlasIED SD72 8" 5 Watt Loudspeaker is back in stock or available for preorder.

Order in the next 9 hr 1 min to ship today. Details

QtyQuantity:

Free Shipping available on orders over $99.00 in the US. Details

60 Day No Hassle Return Policy

Overview

AtlasIED SD72 8" 5 Watt Loudspeaker

The speaker used in the SD72 is the next generation of Atlas high performance cone loudspeakers, very similar to the preceding C-Series speakers. Similarity in sonic qualities ensures that contractors and designers who have worked with the AtlasIED C-Series in the past will know exactly what to expect when they use the SD72. Model SD72 is a dual cone, 25 watt 8" (205 mm) loudspeaker with a 10 oz. (260 g) ceramic magnet. It includes a curvilinear, treated paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation.

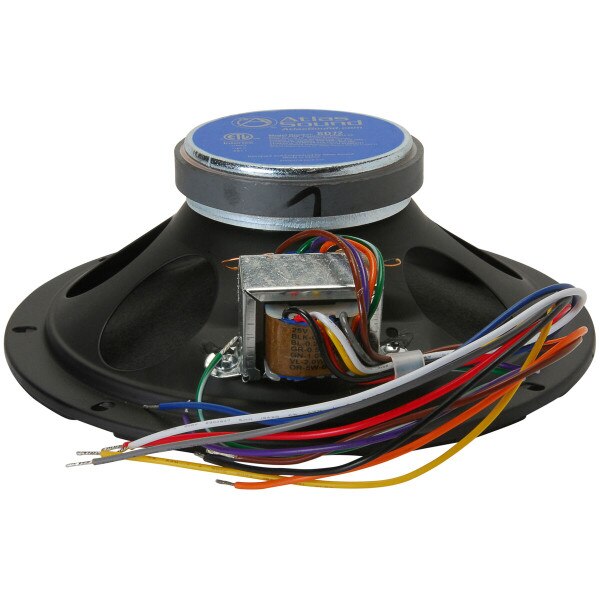

The SD72 operates within a frequency response range of 45 Hz to 19 kHz (nominal) with a sensitivity of 97 dB and a dispersion angle of 105°. Package includes factory installed 25/70.7V line matching transformer with tap selections ranging from .25 to 5 watts. The unit mounts a wide variety of AtlasIED round and square baffles and enclosures to meet functional and aesthetic application requirements.

Specifications: • Depth: 2-7/8" (7.30 cm) • Diameter: 8-1/8" (20.64 cm) • Shipping weight: 3.00 lbs. (1.36 kg) • Frequency response: 55 Hz-8 kHz (±5 dB) • Power taps: 70.7V • Speaker type: Treated paper • Dispersion: 105° (2kHz Octave Band, -6 dB Points) • Sensitivity: 97 dB average • UL listed/standard: 1480, 2043.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details
Brand	AtlasIED
Model	SD72
Part Number	242-9411
UPC	612079179947
Unit of Measure	Each
Weight	3

Product Specifications
Input Rating	8 ohm\|70V\|25V
Mounting Style	In-ceiling
Woofer Diameter	8"
Special Features	UL1480-UL2043-Without Baffle
