  • AtlasIED PD60A 60W Compression Driver 16 ohms

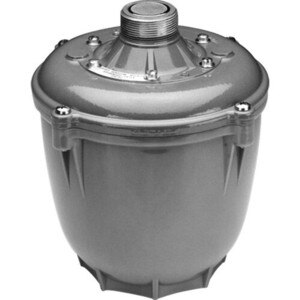

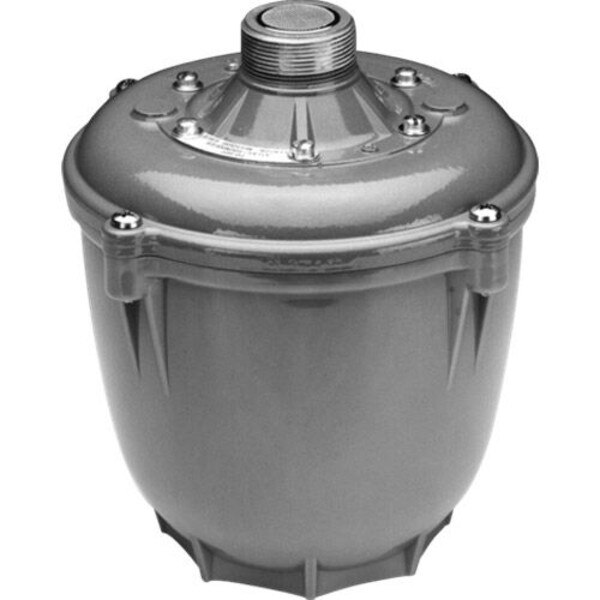

AtlasIED PD60A 60W Compression Driver 16 ohms

AtlasIEDPart # 242-9389
Model: PD60A
Model PD60A is a fully environment-resistant 60 watt driver for indoor or outdoor application recommended for use in expansive and/or high ambient sound-level areas.

Key Features

  • Driver provides Accurate Sound Reproduction, Optimum Intelligibility And Dependable Performance
  • Perfect For High Power Public Address Systems
  • Use With CJ-46 BIA100 And DR Series Horns
Your Price: $281.99
+ FREE SHIPPING
MSRP: $349.99
Save $68.00 (19%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when AtlasIED PD60A 60W Compression Driver 16 ohms is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

AtlasIED PD60A 60W Compression Driver 16 ohms

Model PD60A is a fully environment-resistant 60 watt driver for indoor or outdoor application recommended for use in expansive and/or high ambient sound-level areas. Unit features magnetic-structure components machined to optimum tolerances, 2" voice coil and a plane wave frequency response of 100 - 3,700 Hz (+5 dB). Model PD60A provides screw-type terminals for matching direct to the 16 ohm voice coil impedance. Corrosion-resistant terminal connections are protected by a transparent, impact-resistant plastic cover which provides strain relief for the interconnecting cable. The PD60A is terminated in standard 1-3/8" - 18" thread male couplings for use with screw-on horns.

Specifications: • Height: 6-7/8" (17.46 cm) • Diameter: 6-3/8" (16.19 cm) • Shipping weight: 8.66 lbs (3.93 kg) • Frequency response: 100 - 3,700 Hz • Impedance: 16 ohms • Power rating: 60W • Sensitivity: 112.7 (avg) 100 - 3,700 Hz.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandAtlasIED
ModelPD60A
Part Number242-9389
UPC612079161706
Unit of MeasureEach
Weight6.7
