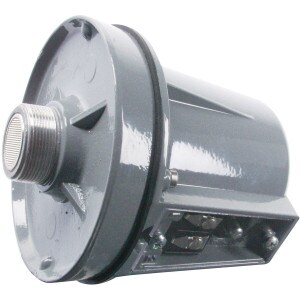

AtlasIED PD-30T 30W 70V Horn Driver

AtlasIEDPart # 242-854
Model: PD-30T
2 Questions, 2 Answers or
Competitively priced PD Series compression drivers provide accurate sound reproduction, optimum intelligibility, and dependable performance in commercial sound, high-power music, and PA loudspeaker systems.

Key Features

  • Environment-resistant construction for indoor/outdoor use
  • Extended frequency range for optimum intelligibility
  • Die-cast housing finished in gray baked epoxy
Similar items that may interest you:
AtlasIED PD60AT 60W 70V Horn Driver
Price: $358.99Part # 242-856
See all items in PA Horn Drivers
Your Price: $174.99
+ FREE SHIPPING
MSRP: $214.99
Save $40.00 (19%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when AtlasIED PD-30T 30W 70V Horn Driver is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

AtlasIED PD-30T 30W 70V Horn Driver

Competitively priced PD Series compression drivers provide accurate sound reproduction, optimum intelligibility, and dependable performance in commercial sound, high-power music, and PA loudspeaker systems. The integral 70V line-matching transformer is varnish impregnated for maximum environment resistance and life expectancy, and incorporates a screwdriver selectable tap/watts selector switch. It also includes a protective terminal cover with built-in strain relief to assure secure cable connection. Standard 1-3/8"-18" thread male coupling for use with screw-on horns.

Specifications: • Power rating: 30 watts • 70.7V Taps: 1.8, 3.7, 7.5, 15, 30 watts • Frequency response (plane wave, ±5 dB): 300-3,900 Hz • Low frequency limit (at full power): 500 Hz • SPL (±5 dB): 113.6 dB • Dimensions: 4-1/2" dia. x 4-1/2" D • Mfg. #PD-30T.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandAtlasIED
ModelPD-30T
Part Number242-854
UPC612079117116
Unit of MeasureEach
Weight4
