  • AtlasIED Surface Mount Sound Masking Transducer with 70V Transformer M2000-SM

AtlasIED Surface Mount Sound Masking Transducer with 70V Transformer M2000-SM

AtlasIEDPart # 242-9470
Model: M2000-SM

Save Even More

A Restocked, Refurbished or Open Box unit is available!

View Now
The subtle design of the Atlas Sound M2000-SM two-part transducer and transformer provides discrete placement and mounting options, including windows, doors, walls and ducts.

Key Features

  • Security masking setup for discrete placement
  • Works with many flat surfaces
  • Two part assembly
  • 0.5 to 4 watt transformer taps
Your Price: $126.99
+ FREE SHIPPING
MSRP: $154.99
Save $28.00 (18%)
Bulk Pricing
3 In Stock
Get Notified When Available

We'll send you an email when AtlasIED Surface Mount Sound Masking Transducer with 70V Transformer M2000-SM is back in stock or available for preorder.

Order in the next 7 hr 56 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

AtlasIED Surface Mount Sound Masking Transducer with 70V Transformer M2000-SM

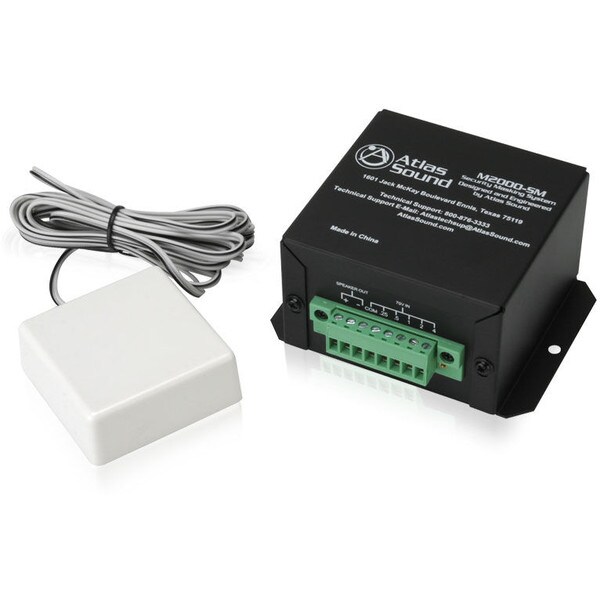

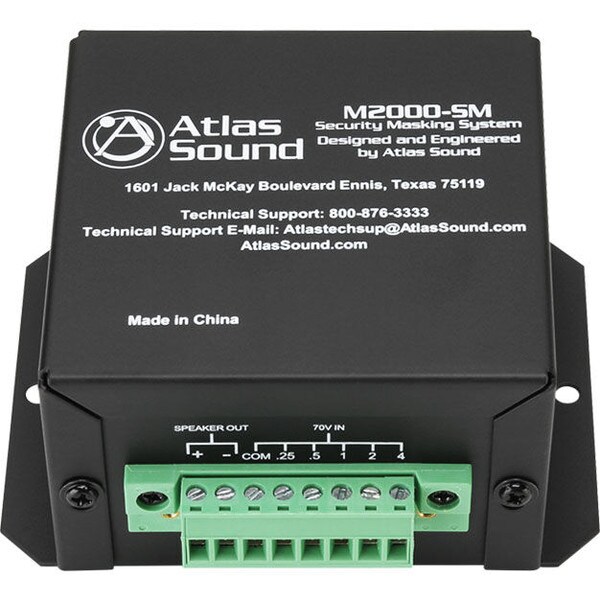

The AtlasIED M2000-SM is designed for security masking applications where disruption of planar surfaces is required to prevent laser microphone sensors. Use the M2000-SM on any flat surface, such as windows, doors, walls, ducts or any flat surface. The unit is a two-part assembly that consists of a transducer enclosure and an external transformer interface.

The transducer employs NXT exciter technology with a 1" plate mounted coil. The M2000-SM is housed in a discrete, high impact plastic enclosure with 10 ft. insulated lead wire for termination to the external transformer. Quickly install the M2000-SM to almost any flat surface with the pre-installed 3M peel and stick adhesive. Transformer includes simple "keyhole" slots for remote mounting.

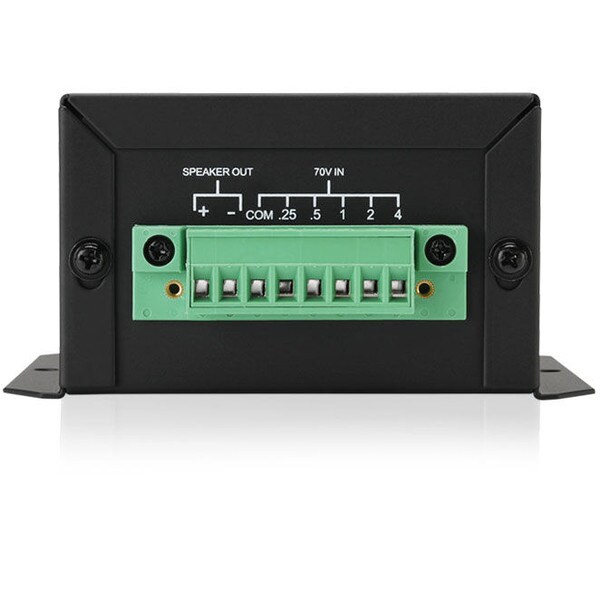

Specifications: Transformer: 70.7V taps at 0.25, 0.5, 1, 2, & 4 watts; Dimensions: 2-3/8" H x 3-1/2" L x 3-1/2" W Transducer: 1" H x 2-1/2" L x 2-1/2" W; Cable length: 117" (3 m).

Note: The M2000-SM requires a sound masking generator and 70.7V amplifier for operation.

Product Details

BrandAtlasIED
ModelM2000-SM
Part Number242-9470
UPC612079185009
Unit of MeasureEach
Weight1.55

Product Specifications

ApplicationFull-Range Exciter
Power Handling (RMS)4 Watts
Impedance8Ω
