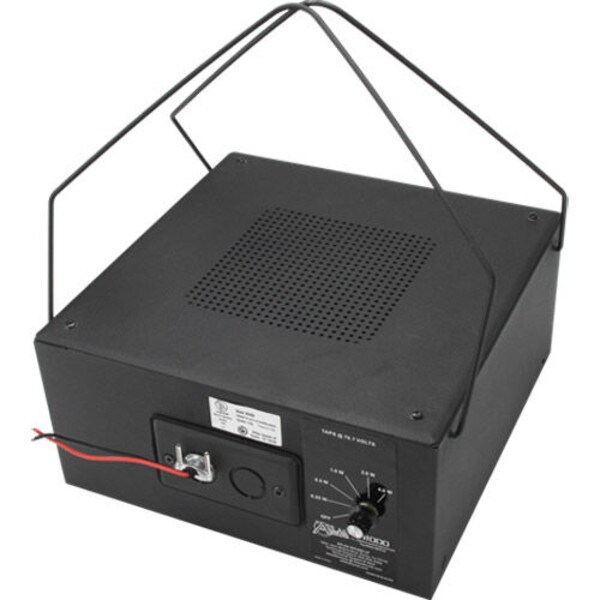

AtlasIED M1000 8" Masking Speaker System Black
$80.99
Ships next business day. Details
Free Shipping available on orders over in the US. Details
60 Day No Hassle Return PolicyOverview
The M1000 masking speaker assembly (black) is designed to accurately reproduce the required spectrum of masking signal into the plenum space. The innovative 734 cubic inch square enclosure ensures ample low frequency response. A specially designed 8" dual cone loudspeaker is included in the package. A high efficiency 70.7V internal transformer is coupled to an external tap selector switch for easy system tuning.
To meet most any local code requirement, the M1000 includes an innovative cover containing both knockouts and a strain relief. This system will allow the use of rigid or flexible conduit (if required) and easily accommodates "through" connections on the removable plate. UL 2043 listed for use in air handling spaces.
Specifications: • Height: 5-1/2" (13.97 cm) • Width: 110-9/16" (29.37 cm) • Depth: 110-9/16" (29.37 cm) • Shipping weight: 10.00 lbs. (4.54 kg) • Frequency response: 100 Hz - 10 kHz, ± 1.5 dB • Power taps: .25, .5, 1, 2 and 4 • Speaker type: 8" Dual cone • Dispersion: Upward, downward, horizontal • Sensitivity: 97 dB Peak, 94 dB average • UL listed/standard: 1480, 2043.
Constant Voltage (70-Volt) Audio Systems
Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.
