  • AtlasIED FAP62T 6" Speaker System Pair

CLEARANCE AtlasIED FAP62T 6" Speaker System Pair

Read 1 Review | 1 Question or
AtlasIED
Part #242-806

CLEARANCE AtlasIED FAP62T 6" Speaker System Pair

AtlasIED
Part #242-806
Model: FAP62T
Read 1 Review | 1 Question or

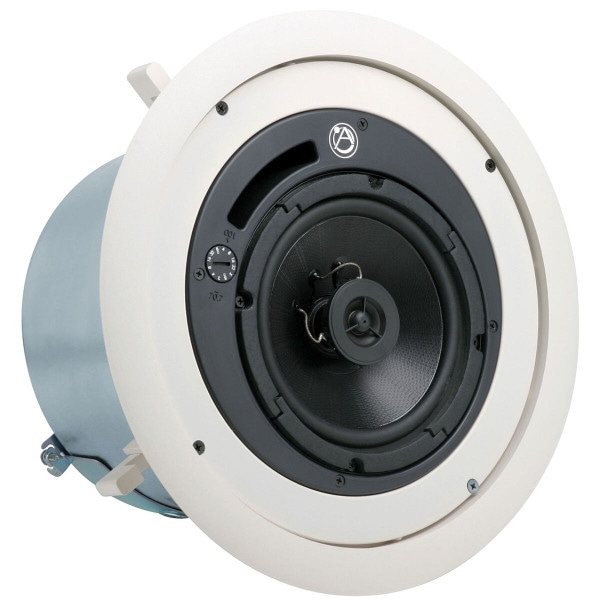

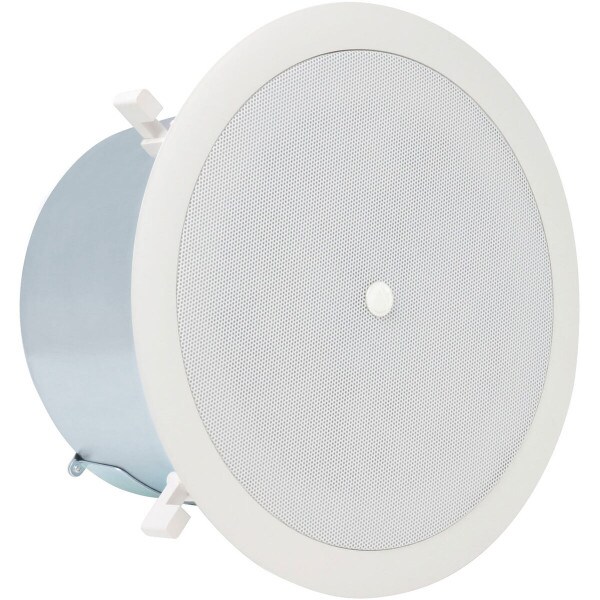

Compact profile enclosure and wide dispersion make the FAP62T a perfect choice for low ceilings.
Key Features
  • Easy installation in drop tile or sheetrock ceilings via included C-ring/V-rail tile bridge
  • Also incorporates "dog leg" mounting system
  • Front mounted tap selector switch for easy system tuning adjustments
  • Includes transformer bypass setting for 8 ohm direct coupled operation
  • Extended low frequency response from the optimally tuned and ported deep galvanized steel enclosure
  • 4-pole detachable "phoenix" style connector allows for easy pre-wiring and daisy chaining
  • Enhanced quality 70.7V/100V internal transformer minimizes insertion loss and maintains LF response
CLEARANCE $363.99
+ FREE SHIPPING
MSRP: $447.99
Save $84.00 (19%)
Bulk Pricing
Order in the next 0 hr 52 min to ship today. Details

1In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

AtlasIED FAP62T 6" Speaker System Pair

AtlasIED's Strategy Series® II premium ceiling speaker packages will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system. These high-performance systems are perfectly suited for many business music and public address applications. Each speaker system ships complete with speaker/transformer factory assembled into back can, grill, and unique C-ring/V-rail mounting hardware. Sold in pairs, priced per pair. Compact profile enclosure and wide dispersion make the FAP62T a perfect choice for low ceilings.

Specifications: • Power rating: 50 watts (transformer limited) • 70.7V Taps: 2, 4, 8, 16, 32 watts • Frequency response: 63 Hz-20 kHz • Dispersion: 110° • Dimensions: Overall: 12-1/2" dia. x 8-1/2" H; Cutout: 11" dia.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandAtlasIED
ModelFAP62T
Part Number242-806
UPC612079179831
Unit of MeasurePairs
Weight29.45

Product Specifications

Input Rating8 ohm|70V|100V
Mounting StyleIn-ceiling
Woofer Diameter6"
Special FeaturesEnclosed Back-UL1480
