Overview

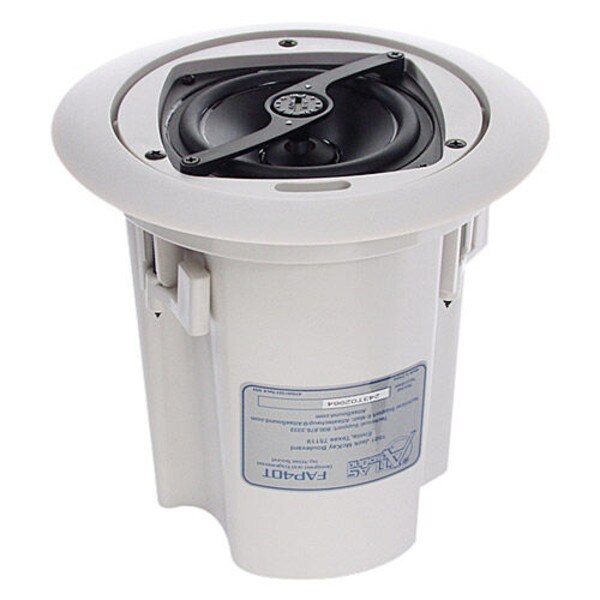

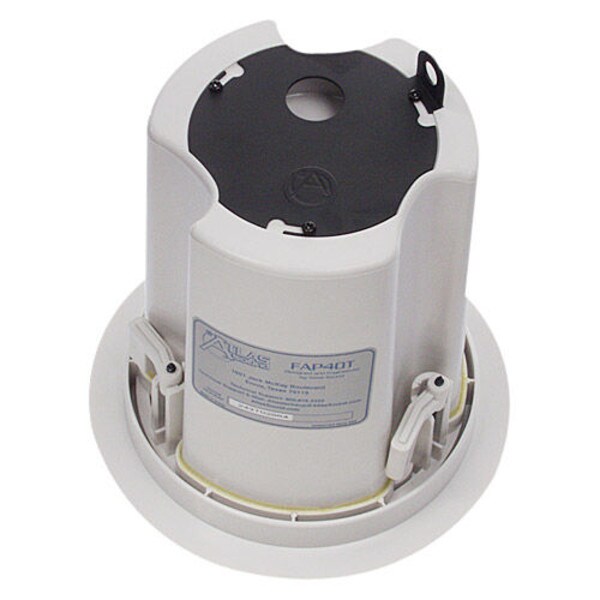

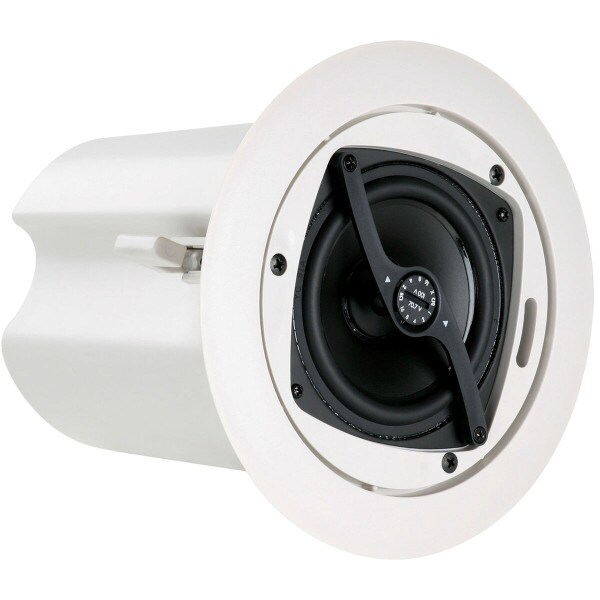

Atlas Sound's Strategy Series® II premium ceiling speaker packages will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system. These high-performance systems are perfectly suited for many business music and public address applications. Each speaker system ships complete with speaker/transformer factory assembled into back can, grill, and mounting hardware. Sold in pairs, priced per pair. The high frequency response of the FAP40T is so natural that many would assume the driver was a coaxial design instead of a single cone driver. The switch "knob" also functions as a diffuser cone, providing smooth, even dispersion of the high frequency content from the center of the 4" polypropylene driver.
Specifications: • Power rating: 16 watts • 70.7V Taps: 1, 2, 4, 8, 16 watts • Frequency response: 80 Hz-15 kHz (±5 dB) • Dimensions: Overall: 7-3/8" dia. x 7-1/8" H; Cutout: 6-5/16" dia.
Constant Voltage (70-Volt) Audio Systems
Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.
