AtlasIED EZHD72W 8" Pre-Assembled Ceiling Speaker Baffle

AtlasIED
Part #242-9360

AtlasIED EZHD72W 8" Pre-Assembled Ceiling Speaker Baffle

AtlasIED
Part #242-9360
Model: EZHD72W
The EZ Mount Support System transfers the composite weight of the loudspeaker, baffle, and enclosure to the ceiling’s support members via adjustable support rails (included).
Key Features
  • 62-8 Style grill with white finish
  • Equipped with 25/70.7V transformer
  • Quick assembly in standard 2 x 4 suspended Tile ceilings
Your Price: $72.99
MSRP: $88.99
Save $16.00 (18%)
Bulk Pricing
Order in the next 0 hr 59 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

AtlasIED EZHD72W 8" Pre-Assembled Ceiling Speaker Baffle

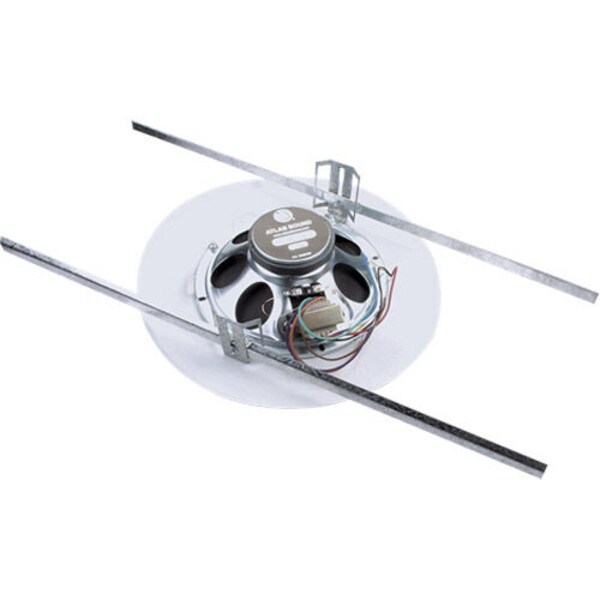

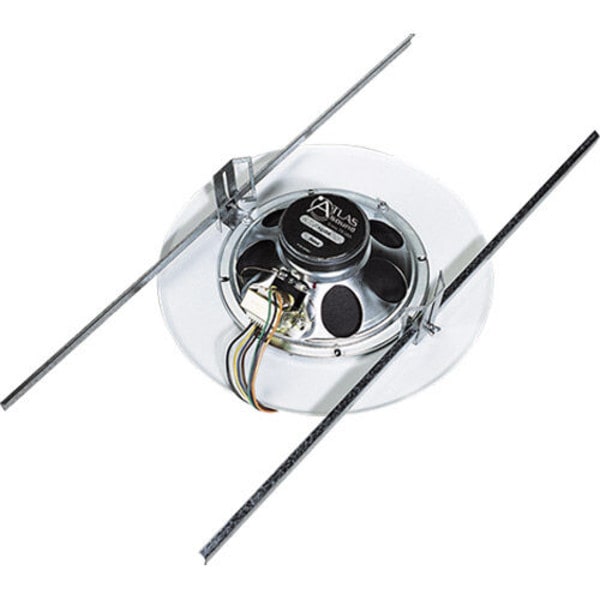

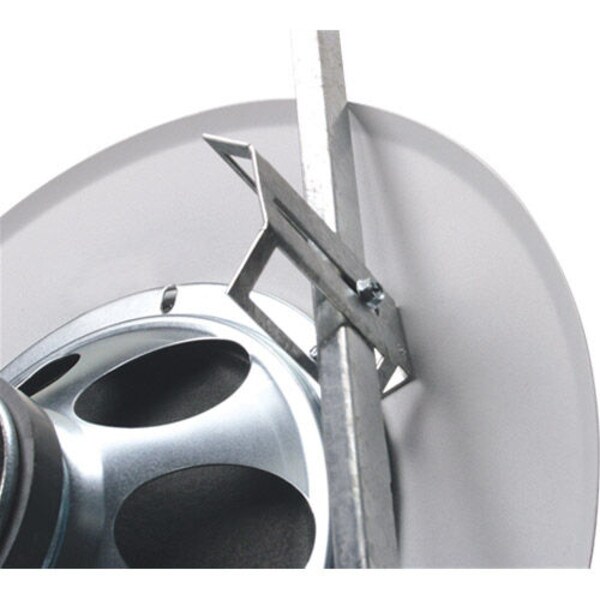

The EZ Mount Support System transfers the composite weight of the loudspeaker, baffle, and enclosure to the ceiling's support members via adjustable support rails (included). The rails may be adjusted vertically and then secured to the specially designed, pre-mounted enclosure brackets with screws (furnished). No tile bridge or time-consuming screw mounting is necessary.

Specifications: • Depth: 2-7/8" (7.30 cm) • Diameter: 8" (20.32 cm) • Shipping weight: 5.17 lbs (2.35 kg) • Frequency response: 100 Hz - 10 kHz, ± 1.5 dB • Power taps: .25, .5, 1, 2, 5 • Speaker type: Treated paper • Dispersion: 105° • Sensitivity: 97 dB Peak, 94 dB Average.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandAtlasIED
ModelEZHD72W
Part Number242-9360
UPC612079113088
Unit of MeasureEach
Weight6.5

Product Specifications

Input Rating70V|25V
Mounting StyleIn-ceiling
Woofer Diameter8"
