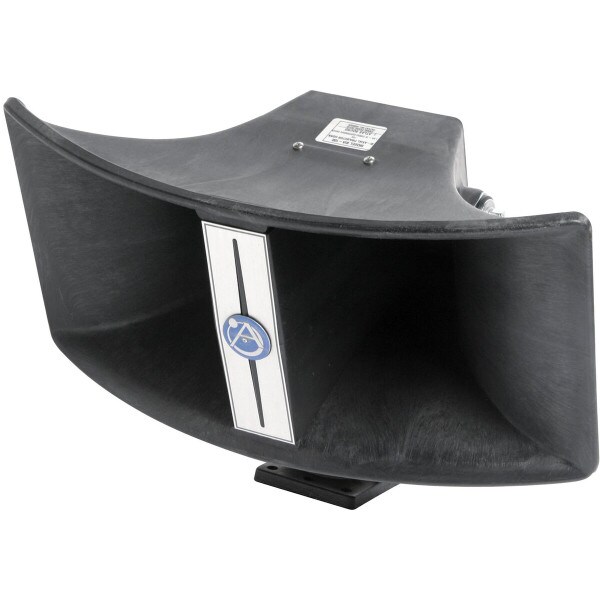

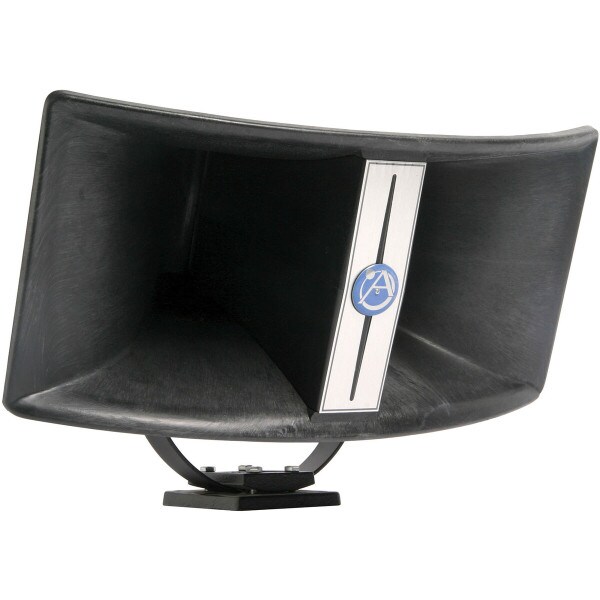

AtlasIED BIA-100 Bi-Axial Stadium Horn with Gimbal Mount 130 x 60

AtlasIEDPart # 242-850
Model: BIA-100
Model BIA-100 is the original reflex horn featuring a bi-axial design with twin air columns and exponential bell for wide-angle coverage with a linear frequency response. Dimensions: 21" W x 10-1/4" H x 10-3/4" D.

Key Features

  • High-efficiency bi-axial horn provides 130° x 60° wide-angle sound coverage
  • For use with AtlasIED PD Series compression drivers and other models having 1-3/8"-18 threads
  • Patented 180° gimbal-mount for installation flexibility
  • Weather-resistant, non-glare matte black foam horn is resistant to resonance
Similar items that may interest you:
AtlasIED CJ-46 Wide Angle Reflex Horn 120 x 60
Price: $281.99Part # 242-852
See all items in PA Horns
Your Price: $266.99
+ FREE SHIPPING
MSRP:
Save $62.00 (19%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when AtlasIED BIA-100 Bi-Axial Stadium Horn with Gimbal Mount 130 x 60 is back in stock or available for preorder.

Order in the next 15 hr 10 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

AtlasIED BIA-100 Bi-Axial Stadium Horn with Gimbal Mount 130 x 60

Model BIA-100 is the original reflex horn featuring a bi-axial design with twin air columns and exponential bell for wide-angle coverage with a linear frequency response. The horn provides excellent acoustic loading maintained to a 350 Hz low-frequency roll-off and optimizes delivery of high and mid-range signal levels. Includes a steel bracket, cast mounting base, and provisions for flange installation. Bracket assembly is finished in durable epoxy. Low-end cut-off: 180 Hz. Dimensions: 21" W x 10-1/4" H x 10-3/4" D (19-1/4" D w/mount).

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Product Details

BrandAtlasIED
ModelBIA-100
Part Number242-850
UPC612079111190
Unit of MeasureEach
Weight16

Product Specifications

ConstructionN/A
Entry / Throat Diameter0.7"
Mounting Type1-3/8"-18 TPI
