AtlasIED APC-30T Wide Angle Omni-Purpose Loudspeaker

AtlasIEDPart # 242-9340
Model: APC-30T

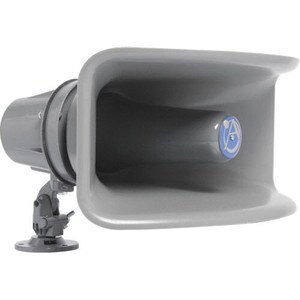

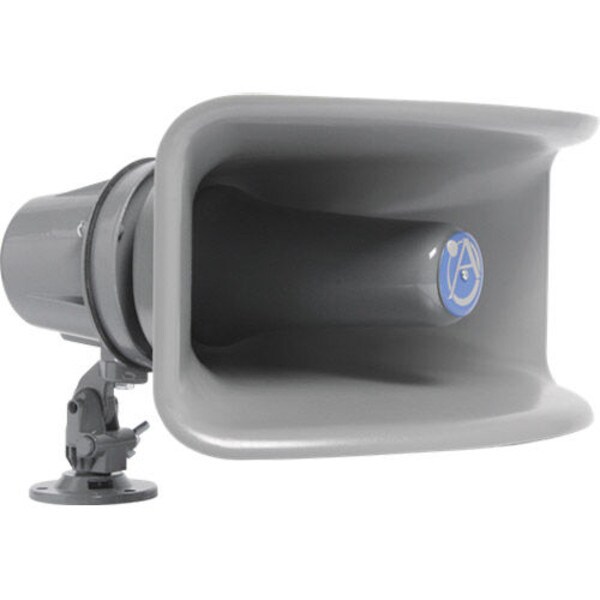

APC-30T is a high-power 30 watt loudspeaker with extended low frequency response. Unit is equipped with a wide-angle molded plastic bell for sound directivity.

Key Features

  • High-Powered Compression Driver Projects Superior Voice and Tone Signaling
  • Includes a 25, 70.7, 100V Transformer with a 45 ohm Tap
  • One-Step Method of Adjusting Bell from Horizontal to Vertical Positioning
  • Wide-Angle Sound Dispersion for Maximum Horizontal Pattern Coverage
  • IP34 Rated for Outdoor Use
Your Price: $262.99
+ FREE SHIPPING
MSRP: $326.99
Save $64.00 (20%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when AtlasIED APC-30T Wide Angle Omni-Purpose Loudspeaker is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

AtlasIED APC-30T Wide Angle Omni-Purpose Loudspeaker

APC-30T is a high-power 30 watt loudspeaker with extended low frequency response. Unit is equipped with a wide-angle molded plastic bell for sound directivity. Transformer includes a screwdriver-adjust power selection with a 45 ohm tap for intercom and talk-back use. For mounting, the APC-30T features the Omni-Purpose® bracket for vertical/horizontal positioning with provisions for surface/strap mounting to pillars and I-beams. Finished in gray baked epoxy.

Specifications: • Height: 8-1/4" (20.96 cm) • Width: 14-3/8" (36.51 cm) • Depth: 12-7/8" (32.70 cm) • Shipping weight: 9.00 lbs (4.08 kg) • Frequency response: 300 - 12,000 Hz • Power taps: 2, 3.8, 7.5, 15, 30W @ 70.7V • Dispersion: 70° x 95° • Power rating: 30 watts • Sensitivity: 109 dB.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandAtlasIED
ModelAPC-30T
Part Number242-9340
UPC612079110513
Unit of MeasureEach
Weight7.95

Product Specifications

Speaker TypePA Horn Speaker
