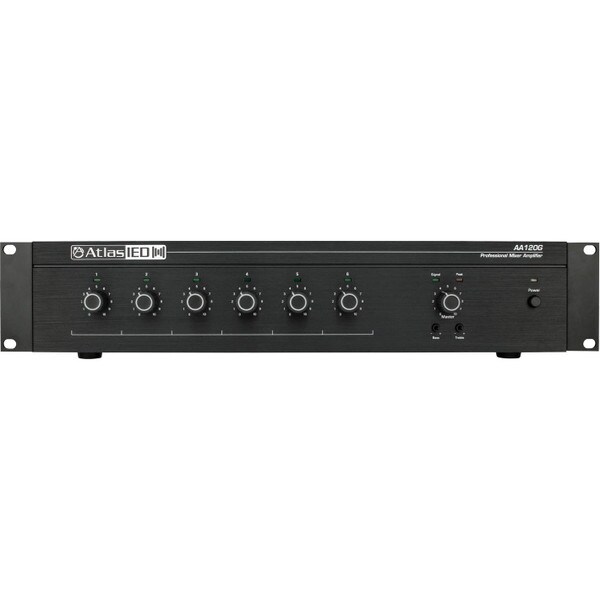

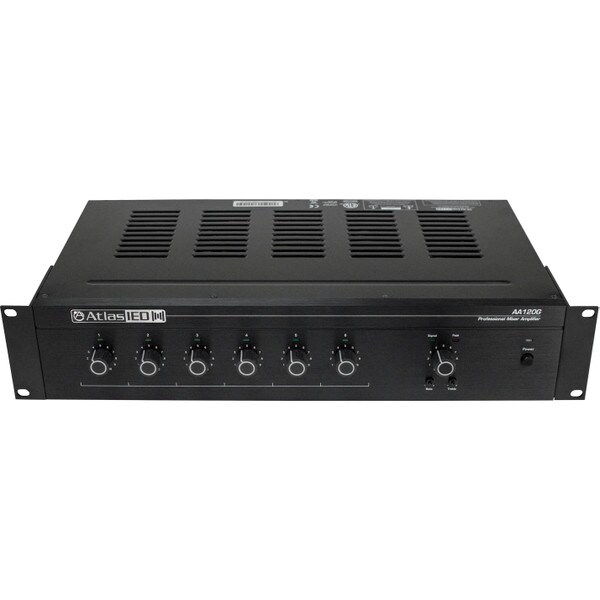

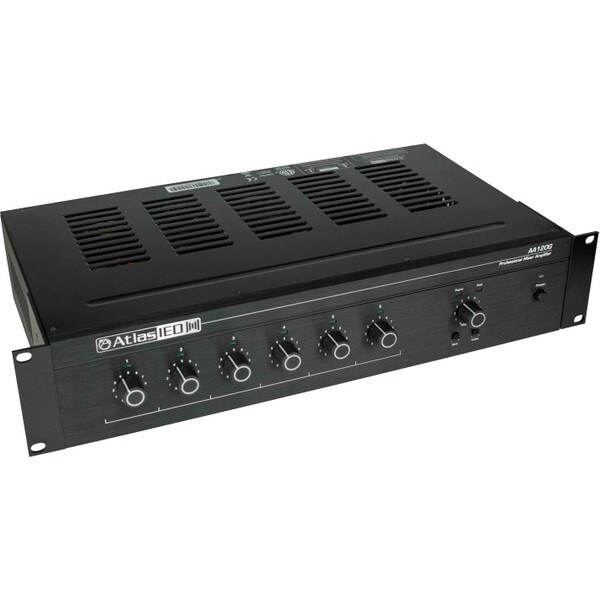

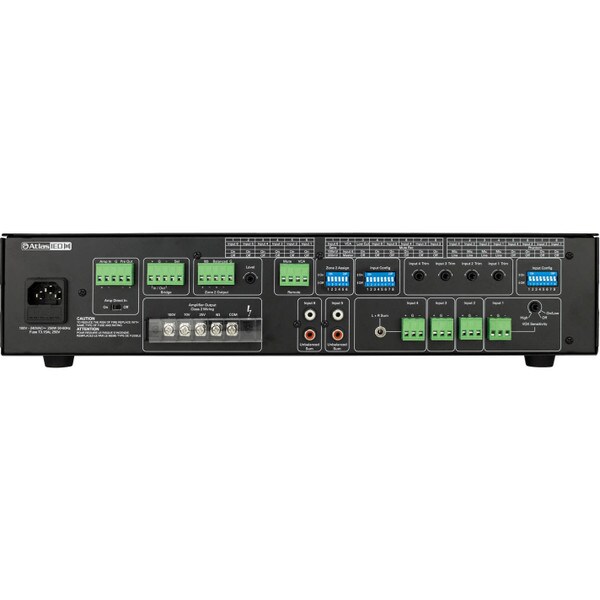

AtlasIED AA120G 120W 6 Input Commercial Mixer-Amplifier

1 Question, 1 Answer or
AtlasIED
Part #242-912

AtlasIED AA120G 120W 6 Input Commercial Mixer-Amplifier

AtlasIED
Part #242-912
Model: AA120G
1 Question, 1 Answer or

AtlasIED has worked to bring you the AA120G, a mixer-amplifier that is packed with features that many manufacturers consider extra! With Vox interrupts, linking abilities, and processing loop, you can configure the AA120G for any use! Compatible with 25v/70v/100v and 4ohm speakers, the AA120G provides the appropriate amplifier power for whatever your building requires!

Key Features
  • 120 Watt 6 input mixer/amplifier for commercial applications
  • 8 Ohm / 25v / 70v / 100v system compatibility
  • 4 Mic/Line inputs with Phantom Power available on each individual input
  • Capable of linking multiple units through bridge ports
  • VCA port for external volume control
  • VOX interrupt for paging systems
  • ETL (UL 60065 Standard), CE
Your Price: $992.99
+ FREE SHIPPING
MSRP: $1,237.99
Save $245.00 (20%)
Bulk Pricing
Order in the next 0 hr 27 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

AtlasIED AA120G 120W 6 Input Commercial Mixer-Amplifier

The AA120G Mixer-Amplifier from AtlasIED provides powerful solutions for installers in commercial settings in a standard rack mountable chassis. 4 Mic/Line inputs and 2 stereo pairs give you plenty of source options whether you need one microphone for a simple paging system, or multiple inputs for a multi-room music system! Compatible with 25v-100v speakers and 4-ohm speakers, The AA120G is perfect for retrofitting into any building! Connect multiple units together with the built-in linking ports, or use the processing loop to insert equalizers, compressors, or effects into the main outputs!

Need to turn it up and can't get to the unit itself? An optional volume knob can be added externally using the VCA port so you can feel in control wherever you are! Take control of your stereo system with the AA120G from AtlasIED!

Specifications

  • Output Power: 120w
  • Frequency Response: 50Hz-15kHz
  • THD+N: <1%
  • Inputs: 4x Mic/Line, 2x Stereo Pair
  • Outputs (Zone 1): 25v/70v/100v/4ohm
  • Output (Zone 2): 8ohm
  • S/N: Aux 75dB, Mic/line 55dB
  • Vox Trigger& Muting: Input 1 (Min: 1.25mV)
  • Dimensions: 17" W x 4" H x 11" D
  • Weight: 13.5 lbs
  • Certification:"Learn how to design your own 70-volt or 25-volt loudspeaker system. This guide will provide valuable insights into the benefits and complexities of constant voltage audio systems, commonly used in various commercial settings."ETL (UL 60065 Standard), CE

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandAtlasIED
ModelAA120G
Part Number242-912
UPC612079662708
Unit of MeasureEach
Weight17.05

Product Specifications

ConditionNew
Item ConditionNew
OptionsIn Stock
Power Output (RMS @ 70V)101W to 200W
Weight Range10 to 19 lbs.
