  • ART USBDI USB Digital to Analog Convertor with Stereo XLR Outputs and Headphone Monitoring

ART USBDI USB Digital to Analog Convertor with Stereo XLR Outputs and Headphone Monitoring

ARTPart # 245-8661
Model: USBDI
Read 1 Review or
The ART USBDI takes in USB audio, converts it to analog audio and then isolates the output using custom transformers. The output isolation is key to removing ground loops and other system noise between the digital and analog audio systems which is perfect for connecting computers to stereos, receivers, and amplifiers.

Key Features

  • High quality D to A Converter with switchable Transformer isolated outputs perfect for connecting computers to any audio system
  • Front panel headphone output and volume control
  • Compact rugged package designed for years of use
  • Sample rates from 32 kHz to 48 kHz
  • Runs off USB power
Your Price: $99.99
+ FREE SHIPPING
MSRP: $142.99
Save $43.00 (30%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when ART USBDI USB Digital to Analog Convertor with Stereo XLR Outputs and Headphone Monitoring is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

ART USBDI USB Digital to Analog Convertor with Stereo XLR Outputs and Headphone Monitoring

The USBDI takes in USB audio, converts it to analog audio and then isolates the output using custom transformers. The output isolation is key to removing ground loops and other system noise between the digital and analog audio systems.

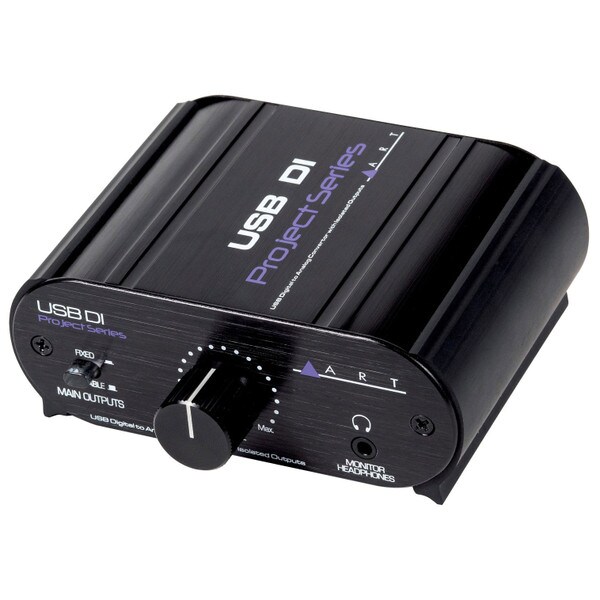

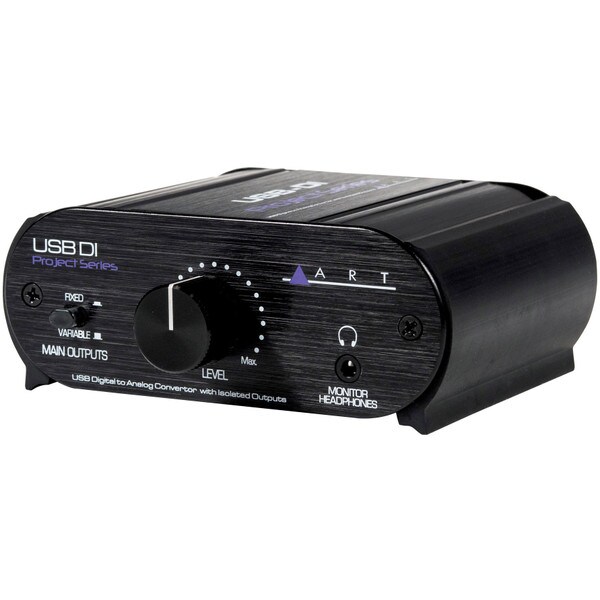

A large knob on the USBDI front panel allows quick, precise control over the output level, while a separate headphone output allows the user to monitor the system. The front panel Main Outputs switch allows the user to keep the isolated outputs at a fixed level while controlling level of the headphones output.

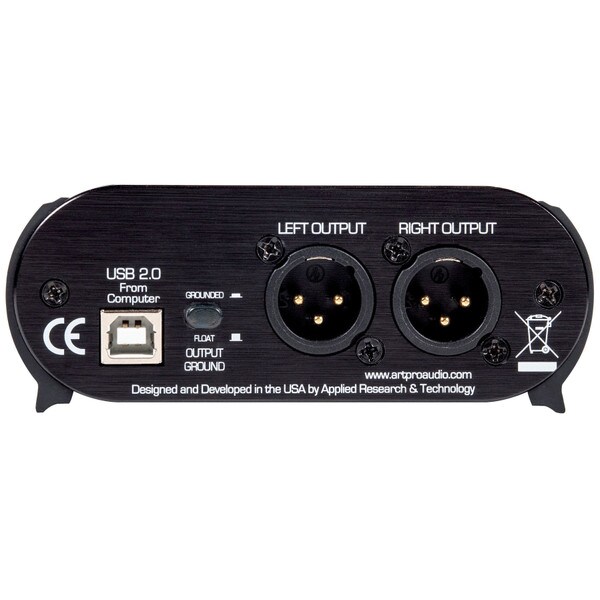

The line level XLR outputs are available for connecting to all sorts of systems. The main outputs are always isolated but allow the user to control the ground reference to reduce noise.

The USBDI is powered by USB, drawing less than 200 mA and eliminating the need for an external power source.

Specifications:


• Input connections: USB 2.0
• Output connections: Balanced XLR and 1/8" headphone output
• Max output level: +7.5 dBu. (balanced line)
• Headphone output: 150 mW/channel max
• Frequency Response: 20-20,000 Hz +/- 1dB
• THD: <0.020% (typical)
• Dynamic range: 96 dB typ. “A” weighted
• Supported sample rates: 32kHz, 44.1kHz, 48kHz
• Power requirements: USB, 500 mA max

Product Details

BrandART
ModelUSBDI
Part Number245-8661
UPC840402046820
Unit of MeasureEach
Weight1.3
