ART SPLITCom Pro Mic Splitter/Combiner

ARTPart # 245-872
Model: SPLITCom Pro

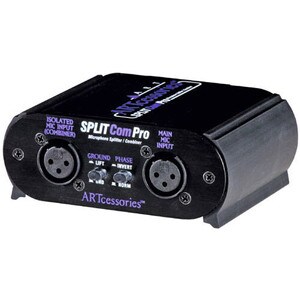

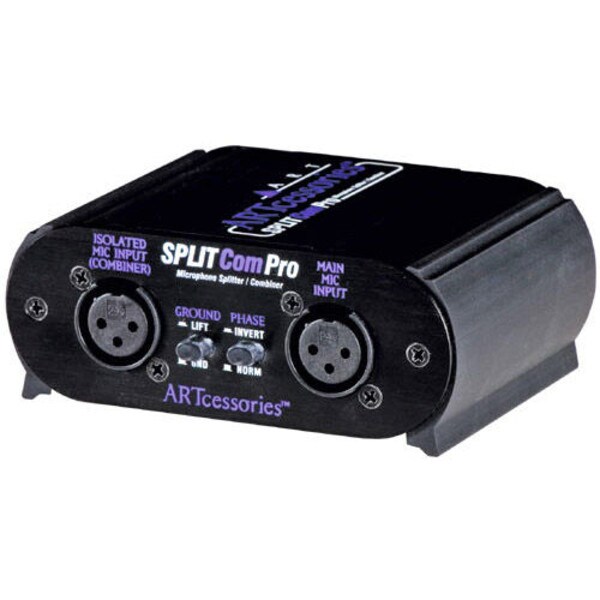

Use the SPLITCom Pro to Split or Combine balanced low impedance microphone signals. As a splitter: provides one direct-coupled output and one isolated output from a single microphone. As a combiner: provides one output from two microphone inputs.

Key Features

  • Low distortion with wide frequency response
  • Two functions in one box – combines and/or splits
  • Phase invert switch for subtractive combining
  • Galvanic isolation to block phantom power between channel
  • Ground lift switch to reduce noise due to ground loops
Similar items that may interest you:
Rolls MS20c Microphone Splitter / Combiner / Isolator
Price: $59.00Part # 245-045
See all items in Microphone Splitters / Combiners
Your Price: $59.99
MSRP: $85.99
Save $26.00 (30%)
Bulk Pricing
Out of Stock
Get Notified When Available

We'll send you an email when ART SPLITCom Pro Mic Splitter/Combiner is back in stock or available for preorder.

Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

ART SPLITCom Pro Mic Splitter/Combiner

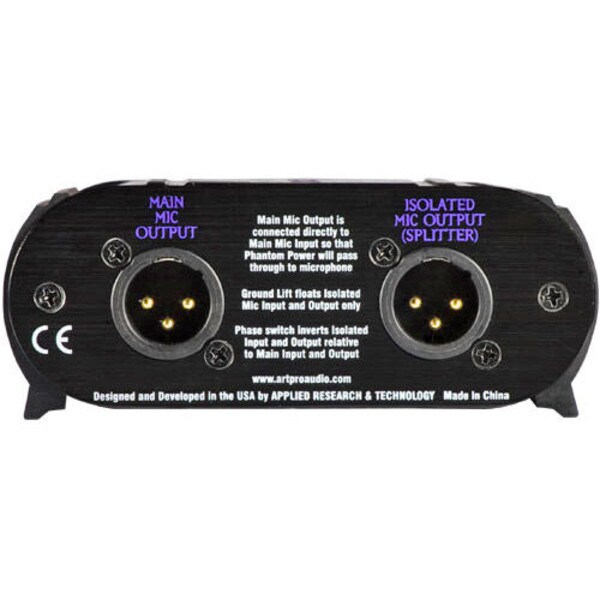

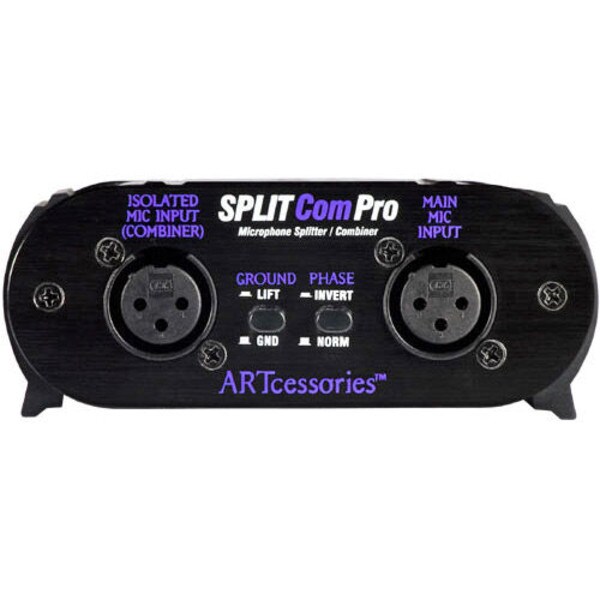

Use the SPLITCom Pro to Split or Combine balanced low impedance microphone signals. As a splitter: The SPLITCom Pro provides one direct-coupled output and one isolated output from a single microphone. Applications include sending the direct output to the main or FOH mixer, and the second isolated output to a monitor or recording mixer. The main MIC output passes phantom power from the main mixer to the main MIC input for use with condenser microphones. Phantom power is blocked from passing to the isolated MIC output. As a combiner: The SPLITCom Pro provides one output from two microphone inputs. The phase switch can be used to invert the relative phase of the isolated MIC input. Applications include dual micing of percussion instruments, choirs, and instrument amplifiers. Phantom power passes through each output to their respective input, (main to main, isolated to isolated), however phantom power is blocked from passing between the main and isolated signal paths. Only the audio passes between the main and isolated signal paths (it is present on all inputs and outputs).

ARTcessories™ are taking the audio world by storm and quickly becoming a popular brand with musicians, DJs and studio engineers everywhere around the World. Split, combine, mix, power... you name it. On stage, in the studio, in your living room, they’re easy to use and are built to last. For those times when you need a little box to fix a big need or to make more out of a smaller project, ARTcessories™ has you covered. You'll discover a robust line of useful tools which include a complete range of direct boxes, headphone amps, small mixers, mic cable combiner/splitters and much more. ARTcessories™ are designed to deliver affordable solutions for a multitude of audio needs for any size project.

Product Details

BrandART
ModelSPLITCom Pro
Part Number245-872
UPC840402018308
Unit of MeasureEach
Weight1.5
