Overview

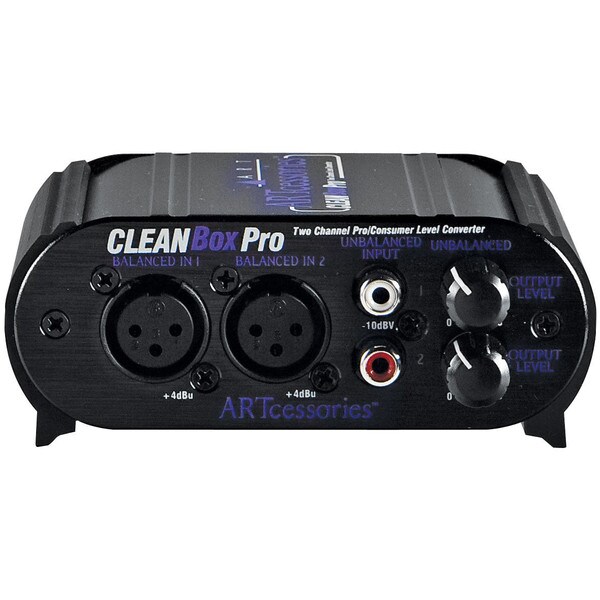

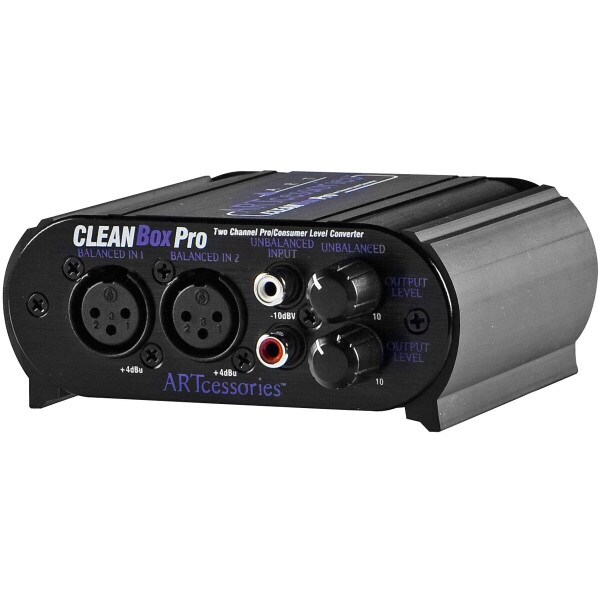

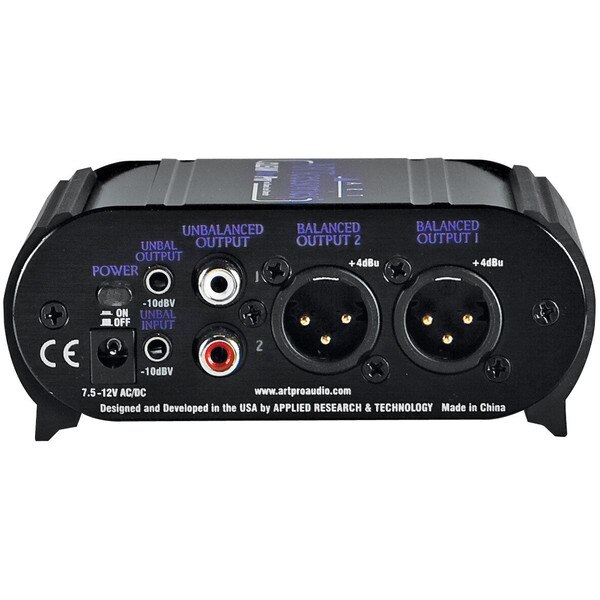

The CLEANBoxPro provides two channels of unbalanced to balanced level conversion and two channels of balanced to unbalanced level conversion in a rugged, compact, and portable unit. Balanced lines offer increased immunity to external electrical noise, such as hum. Since a balanced system minimizes induced noise, it is the preferred method of connecting audio gear, especially when long lengths of cable are used. One section of the CLEANBoxPro converts two channels of consumer-level unbalanced input signals into two channels of pro line-level balanced output signals. It has two RCA jack inputs and a stereo mini-phone jack input connected in parallel. The balanced output feeds two XLR male jacks. The other section of the CLEANBoxPro converts two channels of line-level balanced input signals into two channels of consumer unbalanced output signals. It has two XLR female input jacks. The unbalanced output feeds two RCA jacks and a stereo mini-phone jack connected in parallel. Each section has stereo level controls to optimize signal levels. An LED indicator lights when power is applied.
The CLEANBoxPro can be an invaluable tool in application areas including (but not limited to!): home or professional recording studios, live sound, PA, permanent installs, DJ, AV, consumer Hi-Fi, podcasting and broadcasting. The CLEANBoxPro can be used with: mixers, audio processors, laptop computers, computer sound cards, CD/DVD players, video gaming machines, MP3 player/recorders, powered monitors, and digital audio workstations.
Specifications: • Frequency response: 20 Hz – 20 kHz, ± 1 dB • Total harmonic distortion: <0.01% @ 1 kHz • Signal-to-noise ratio: > 90 dB • Common mode rejection ratio: > 40 dB • Input impedance: Balanced: 20k Ohms; Unbalanced: 100k Ohms • Output impedance: Balanced: 100 Ohms; Unbalanced: 300 Ohms • Maximum gain: Balanced to unbalanced: -6 dB; Unbalanced to balanced: +21 dB • Maximum input level: +21 dBu • Maximum output level: Balanced: +21 dBu; Unbalanced: +15 dBu • Power: 7.5-12 V AC/DC, < 150 mA • Dimensions: 1.85" x 4.6" x 4.3" (47 x 117 x 109 mm) • Weight: 1.10 lbs. (0.50 kg)
ARTcessories™ are taking the audio world by storm and quickly becoming a popular brand with musicians, DJs and studio engineers everywhere around the World. Split, combine, mix, power... you name it. On stage, in the studio, in your living room, they’re easy to use and are built to last. For those times when you need a little box to fix a big need or to make more out of a smaller project, ARTcessories™ has you covered. You'll discover a robust line of useful tools which include a complete range of direct boxes, headphone amps, small mixers, mic cable combiner/splitters and much more. ARTcessories™ are designed to deliver affordable solutions for a multitude of audio needs for any size project.
