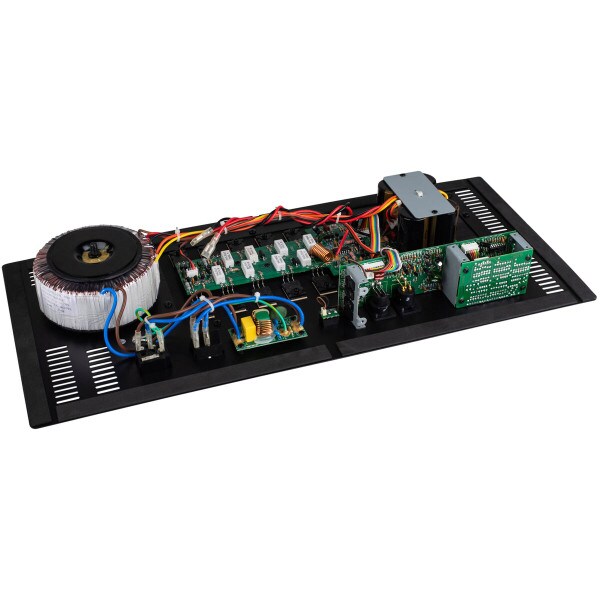

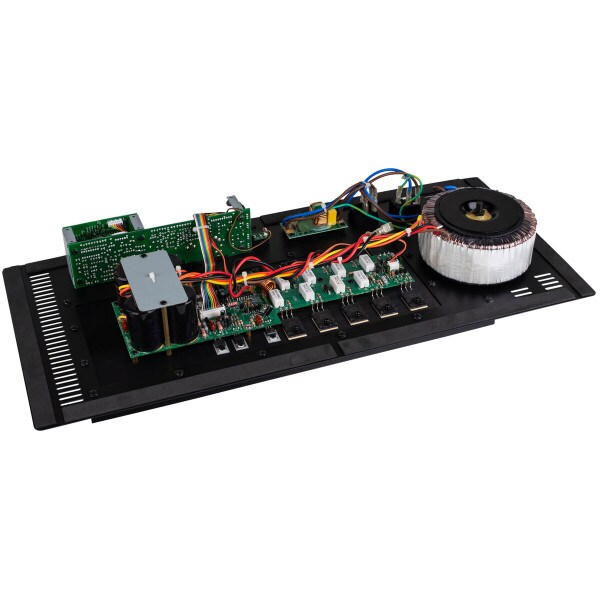

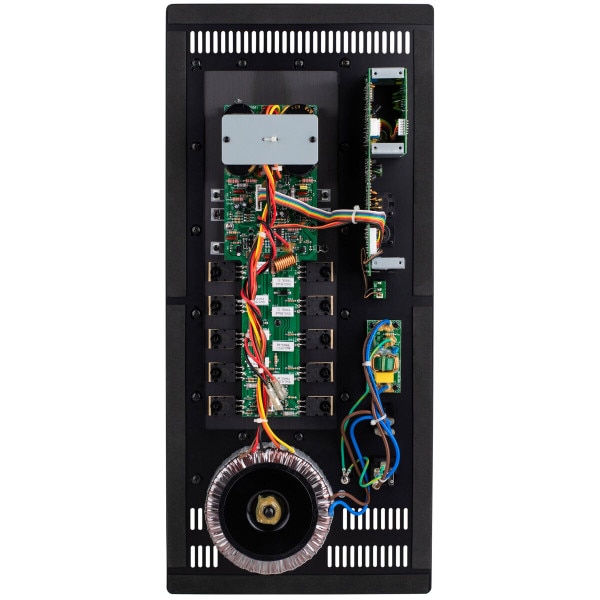

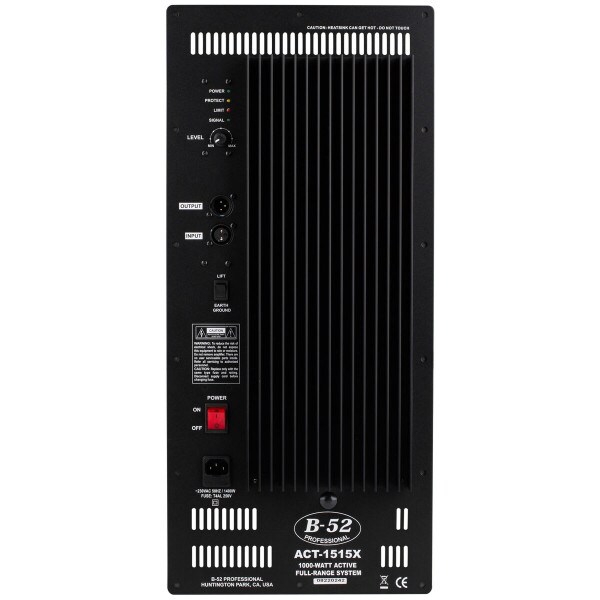

B-52 ACT-1515X-230V 1000 Watt Full-Range Plate Amplifier - 230VThe B-52 ACT-1515X 1000W plate amplifier provides full-range output to power custom built PA speakers. Produce deep, clean low end and detailed, clear high end with the ACT-1515X. The amp offers built-in a compressor/limiter, 4-stage EQ, a 24 dB/octave subsonic filter and thermal and short circuit protection. The built-in compression circuitry allows for the ACT-1515X to produce high SPLs while minimizing the risk of damage to the amp or the speakers. An ultra-wide frequency response of 35 - 19,000 Hz will rock any application the amp is used in. With high output, in a compact size, the Class H amplifier will give any PA speaker system build a strong centerpiece to power the most demanding speakers.
Details:
• Full-Range Amplifier – external crossover must be used for components
• Class: H (Dual Voltage Power Supply)
• Sensitivity (for rated power): 1 Vrms @ input (Volume Max)
• Frequency Response (with EQ bypassed): 10 Hz to 60 kHz + 0 -3 dB
• Rated THD: Less than 0.02%
• Damping factor into 4 ohms: >800
• Signal Noise Ratio: 100 dB A-weighted
• Input / Loop Output type: Balanced XLR (pin 2 hot)
• Impedance: 20K Ohm balanced
• Built-in Compressor-Limiter
• Subsonic Filter: 32 Hz, 18 dB/octave
• XLR Balanced Inputs
• Full Range Output
• Thermal & Short Circuit Protection
• European Power/Fuse requirements: 230V AC / 50 Hz - 4A slow-blow fuse
Specifications: • Amplifier type: Class H with 2-stage power supply • Power output: 1000W @ 4 ohms • Max SPL: 136 dB • Frequency response: 35 - 19,000 Hz • Power requirements: 230 VAC, 3A • Rated THD: 0.03% • DSP: Built-in compressor/limiter, 4-stage EQ • S/N ratio: 100 dB A-weighted • Subsonic filter: 18 dB/octave @ 32 Hz • Inputs: 2 x XLR • Outputs: 2 x XLR • Thermal and short circuit protection • Cutout dimensions: 22.75" x 9.31" • Dimensions: 24.5" x 11".
PLEASE NOTE: This unit is designed for the European market and only works on 230 VAC 50 Hz.
For over 30 years, B-52 has manufactured Pro Audio gear in California using only high quality components. We recently acquired tons of product from them so they could free up space in their warehouse. This huge buyout of woofers, compression drivers, horns, crossover components, and cabinet hardware is listed here for a fraction of what you would normally pay. Many drivers in this factory buyout are New Old Stock (NOS) from famous brands and would be considered vintage. Like the B-52 bomber, this factory buyout travels the globe and includes drivers manufactured by famous brands around the world in places like the UK, USA, Denmark, and Brazil. This is a one-time buyout opportunity so quantities are limited.
