The AC Infinity CONTROLLER2 Intelligent Thermal Fan Controller provides easy programming capabilities for up to six AC Infinity Cabinet and USB fans. Automated programming self-adjusts cooling power changes in response to the rack temperatures to keep all of your equipment running properly.
Key Features
  • Intelligent thermal fan controller with on-board processor and digital LCD display
  • Controls up to six AC Infinity Cabinet and USB Fans
  • Automated programming that self-adjusts cooling power in response to changing temperatures
  • Alarm system, display lock, six fan speeds, two buffer options, and power failure memory
  • Includes precision thermal probe, mounting screws, and power wall adapter
Your Price: $49.99
Bulk Pricing

Out of Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

AC Infinity CONTROLLER 2 Intelligent Thermal Fan Controller Single Zone

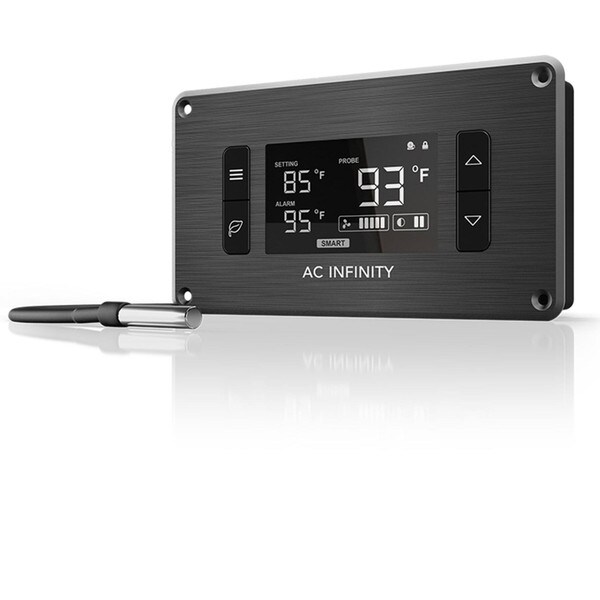

The Controller 2 is designed to control AC Infinity AIRPLATE Series cabinet fans and MULTIFAN Series component fans. The unit measures 5.2 by 3.1 by 1.1 inches, and contains a back lit LCD digital display, which can display Fahrenheit or Celsius. Its metal frame features a brushed anodized aluminum finish and can be mounted onto wall panels and cabinets up to 1.25 inches thick. On the back side are two USB fan ports, one power port, and one thermal probe port. Includes a 6-foot precision thermal probe that is water resistant. Operating temperature can be set between 32 to 140 degrees Fahrenheit. Complete kit includes thermal controller, mounting screws, plastic stencil, instruction manual, and 100-125V AC wall adapter.

Programming

The controller features an on-board processor with active temperature monitoring as well as intelligent programming that will automatically adjust fan speeds to respond to varying temperatures. Additional features includes an alarm system, display lock or off while programs are running, six fan speeds, three back-light settings, two buffer options, and power failure memory.

Compatibility

The Controller 2 can power up to 10 watts worth of AC Infinity AIRPLATE and MULTIFAN Series fans. This is approximately six fans but please note that some models contains more than one fan. For example, dual fan systems such as the AIRPLATE S7 or MULTIFAN S5 contains two fans. The controller would only be able to power up to three of these models for a total of six fans. Other 5V USB fans can be compatible but may not be fully functional with the speed control feature.

Applications

This ultra-quiet cooling system is popular in a variety of applications including home theaters, entertainment centers, and audio video cabinets; and smaller enclosures and racks holding computers, receivers, amplifiers, and other AV equipment.

Specifications:


• Maximum fans controlled: 6
• Programming temperatures:32 – 140° F
• Display size:2.25" x 1.25"
• Thermal probe length: 6 ft.
• Cord length: 6 ft.
• Power: 10W
• Current: 2A
• Input voltage: 3 - 7 VDC
• Wall adapter input: 100/240 VAC
• Dimensions: 5.2" x 3.11" x 1.1"

Product Details

BrandAC Infinity
ModelCONTROLLER 2
Part Number305-415
UPC854759004402
Unit of MeasureEach
Weight1.05
