BUYOUT 78G314-2-Y 5/8" x 1-3/8" Fabric Cone Mini Speaker

Factory Buyouts
Part #289-2074

BUYOUT 78G314-2-Y 5/8" x 1-3/8" Fabric Cone Mini Speaker

Factory Buyouts
Part #289-2074
Model: 78G314-2-Y
The 78G314-2-Y mini-speaker features a treated fabric diaphragm for smooth, natural sound with excellent self-damping. The small size makes this speaker ideal for use in small toys, models, or electronics.
Key Features
  • Ultra-shallow mounting depth for installation almost anywhere, only 1/4" deep
  • Extremely light diaphragm produces decent efficiency for its size
  • 4 mounting holes for easy installation

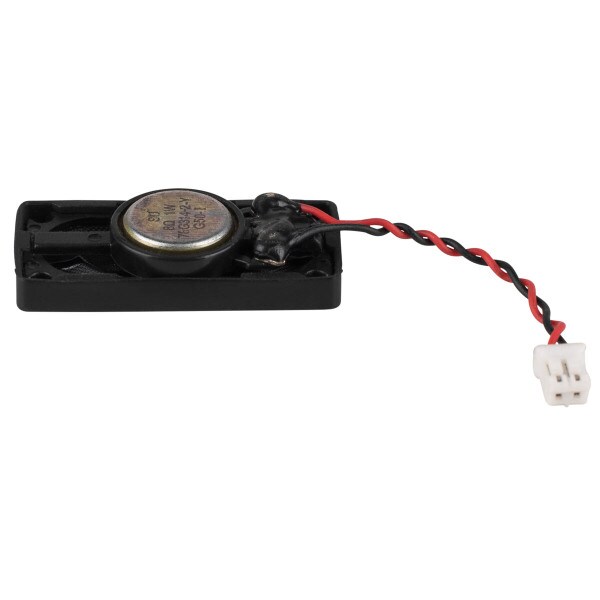

  • Neodymium magnet keeps size and weight to a minimum
BUYOUT $0.98
Bulk Pricing
Quantity:Qty: 1-9 $0.98/ea
Quantity:Qty: 10-49 $0.68/ea
Quantity:Qty: 50+$0.48/ea
Order in the next 0 hr 53 min to ship today. Details

2351In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

78G314-2-Y 5/8" x 1-3/8" Fabric Cone Mini Speaker

We at Parts Express constantly hunt the globe for unique buyout opportunities so that we can provide our customers with the best products at the lowest cost. We are excited to offer this 5/8" x 1-3/8" micro speaker, which is part of a massive TV speaker factory buyout from Brazil.

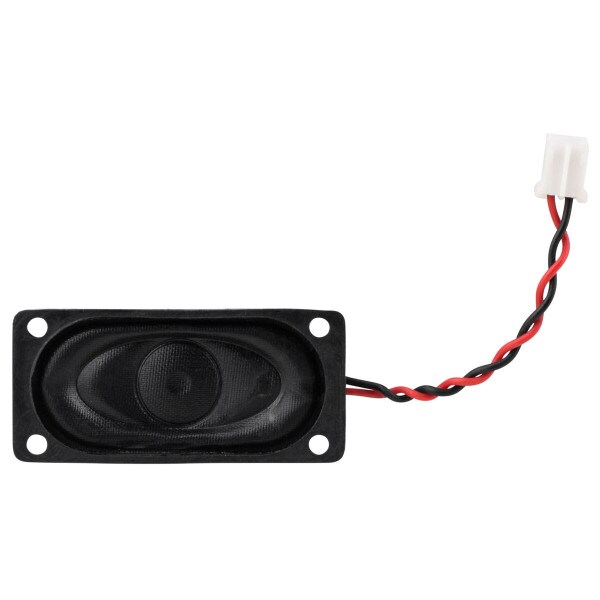

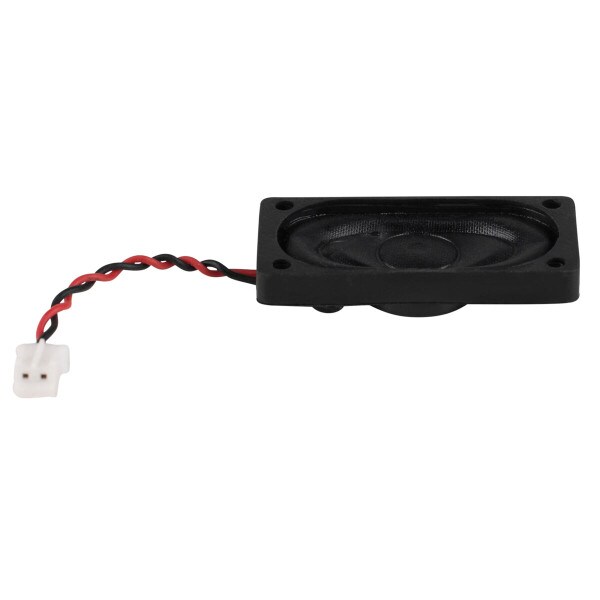

The 78G314-2-Y is a compact rectangular mini-speaker featuring a stadium-shaped, coated fabric diaphragm for extremely low resonance and excellent detail from a small driver. The highly damped diaphragm is an excellent choice for use as an extended-range mini speaker in laptops and flat-screen displays, or as a mini-tweeter to complement small woofers.

Use these speakers in any low cost audio project whether it be a portable speaker, adding music to toys and models, or building an enormous line array for pennies. At such an economical price, these drivers won't last forever, quantities are limited.

Product Details

BrandFactory Buyouts
Model78G314-2-Y
Part Number289-2074
UPC848864047591
Unit of MeasureEach
Weight0.05

Product Specifications

Nominal Diameter1 x 2"
Power Handling (RMS)1 Watts
Power Handling (MAX)2 Watts
Impedance8Ω
Frequency Response500 to 20,000Hz
Sensitivity76dB 2.83V/1m
Voice Coil Diameter0.375"

Thiele-Small Parameters

Resonant Frequency (Fs)820Hz
DC Resistance (Re)7.62Ω
Voice Coil Inductance (Le)0.45mH
Mechanical Q (Qms)4.275
Electromagnetic Q (Qes)18.57
Total Q (Qts)3.47

Materials of Construction

Cone MaterialSoft Dome
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter1.5" x 0.6875"
Depth0.25"
# Mounting Holes4
