  • 7/8" x 2" 3.5W Speaker 8 Ohm 78T494-511-Y-PAR

BUYOUT 7/8" x 2" 3.5W Speaker 8 Ohm 78T494-511-Y-PAR

1 Question, 4 Answers or
Factory Buyouts
Part #289-2110

BUYOUT 7/8" x 2" 3.5W Speaker 8 Ohm 78T494-511-Y-PAR

Factory Buyouts
Part #289-2110
Model: 78T494-511-Y-PAR
1 Question, 4 Answers or
mount brackets for easy mounting.
Key Features
  • The gasket on the front of the woofer allows the woofer to seal completely when rear-mounted
  • Simple side mounting tabs paired with the sealing gasket allow an easy installation in many projects
  • The 8 Ohm impedance of each woofer mates well to most amplifiers
BUYOUT $1.82
Bulk Pricing
Quantity:Qty: 1-9 $1.82/ea
Quantity:Qty: 10-49 $1.60/ea
Quantity:Qty: 50+$1.44/ea
Order in the next 0 hr 52 min to ship today. Details

3248In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

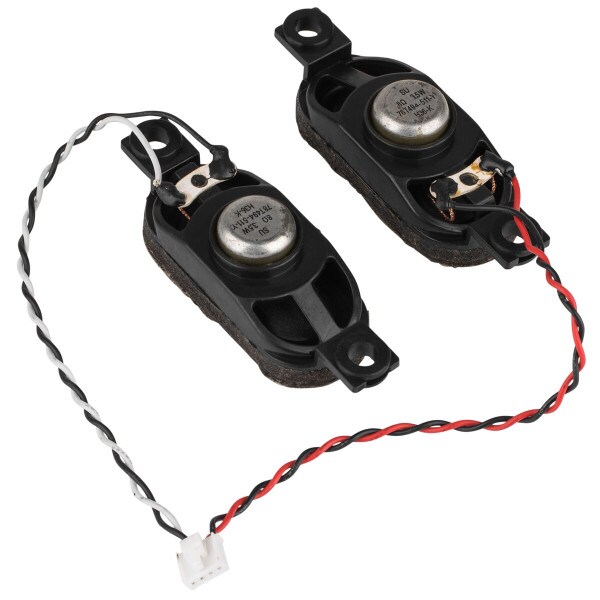

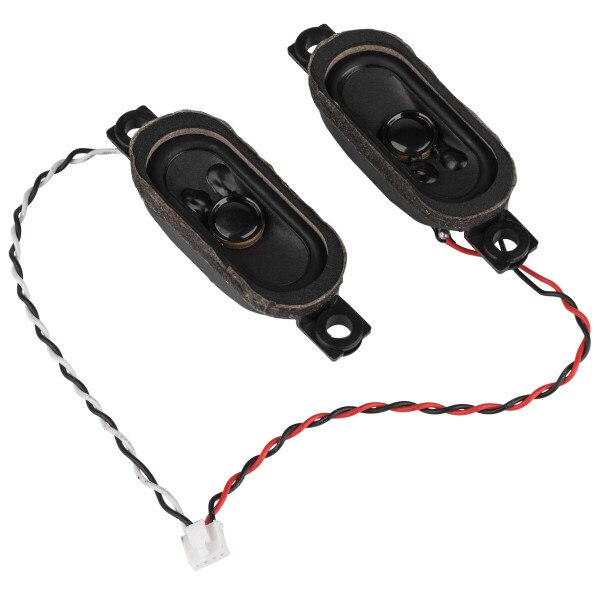

7/8" x 2" 3.5W Speaker 8 Ohm 78T494-511-Y-PAR

The 78T494-511-Y-PAR is a pair of woofers that are connected to a simple plug. The mounting tabs and gasket make this speaker pair easy to mount. The 8 ohm impedance of each woofer means that you have wide assortment of amplifiers to choose from.

Product Details

BrandFactory Buyouts
Model78T494-511-Y-PAR
Part Number289-2110
UPC848864047775
Unit of MeasureEach
Weight0.05

Product Specifications

Nominal Diameter1 x 2"
Power Handling (RMS)3.5 Watts
Power Handling (MAX)8 Watts
Impedance8Ω
Frequency Response370 to 12,000Hz
Sensitivity73.5dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)366.7Hz
DC Resistance (Re)7.057Ω
Voice Coil Inductance (Le)0.08799mH
Mechanical Q (Qms)4.397
Electromagnetic Q (Qes)7.691
Total Q (Qts)2.798

Materials of Construction

Cone MaterialPoly
Surround MaterialRubber
Basket / Frame MaterialPolymer
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter3.14 x 1"
Baffle Cutout Diameter2.3 x 1"
Depth0.36"
# Mounting Holes2
