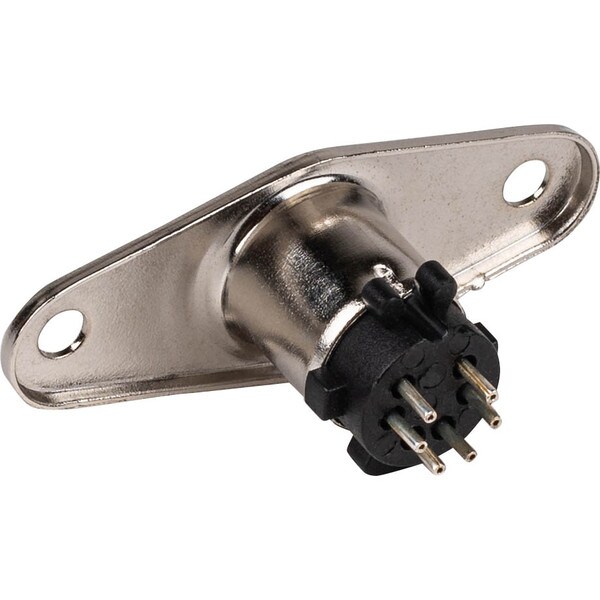

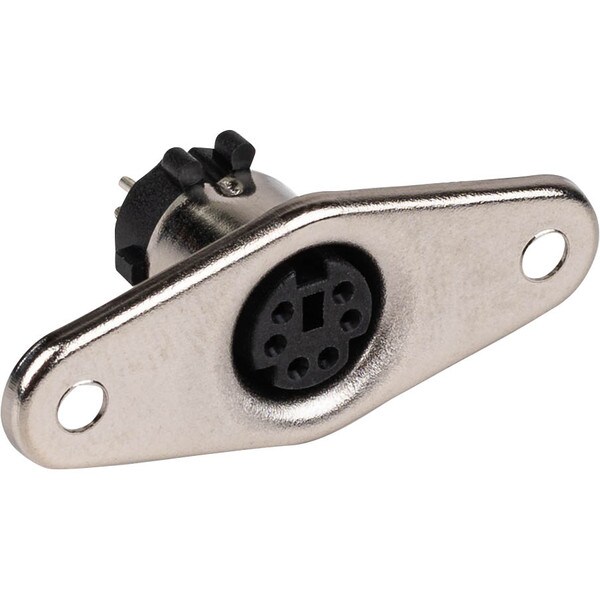

This 6-pin mini-DIN works perfect for DIY projects that require program changes. Mount this 6-pin DIN inside a project box to enable you to change audio settings for the KABD boards. Save the program and remove the cable and you're ready to use the new settings.
It also enables you to transfer audio/video signals with one small plug. The 2-pins for composite video and 4-pins for L/R audio. The jack requires a 0.50" hole and has outer dimensions of 1.5" W x 0.60" H x 0.68" D. Two 0.11" mounting holes 1.18" apart form center.
Product Details | |
|---|---|
| Brand | Parts Express |
| Part Number | 090-627 |
| UPC | 848864069746 |
| Unit of Measure | Each |
| Weight | 0.05 |
Product Specifications | |
|---|---|
| Conductors | 6-Pin |
| Gender | Female / Jack |
| Mounting Type | Chassis / Panel Mount |
