  • 6-Pairs 24K Gold Plated Banana Plug Solderless Compression Style with Non-conductive Shell

NEW 6-Pairs 24K Gold Plated Banana Plug Solderless Compression Style with Non-conductive Shell

Parts ExpressPart # 091-3623

High quality compression style banana plug provides a reliable and professional solution for your audio hookup needs. They quickly and securely plug and unplug so you're not wasting time with bare copper strands.

Key Features

  • 24 karat gold plated brass plus beryllium copper for superior signal transfer
  • Matte shell with color coded rings and rubber grip ring

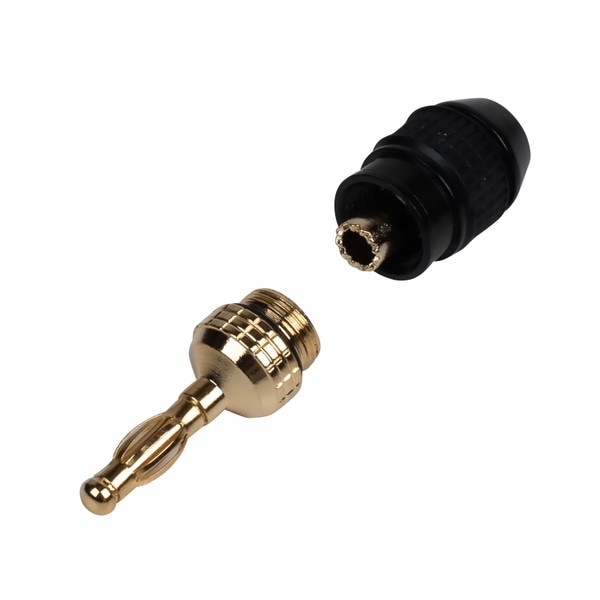

  • Threads are on the connector body out of the way of the cable strands
  • Teeth to "bite" into the wire strands for maximum retention

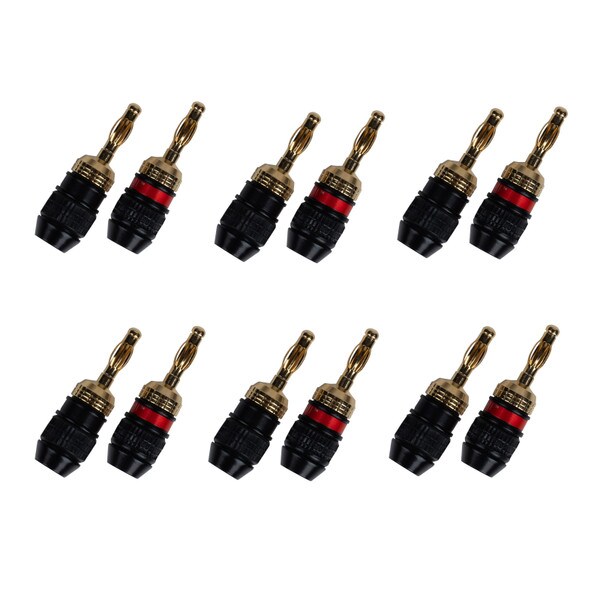

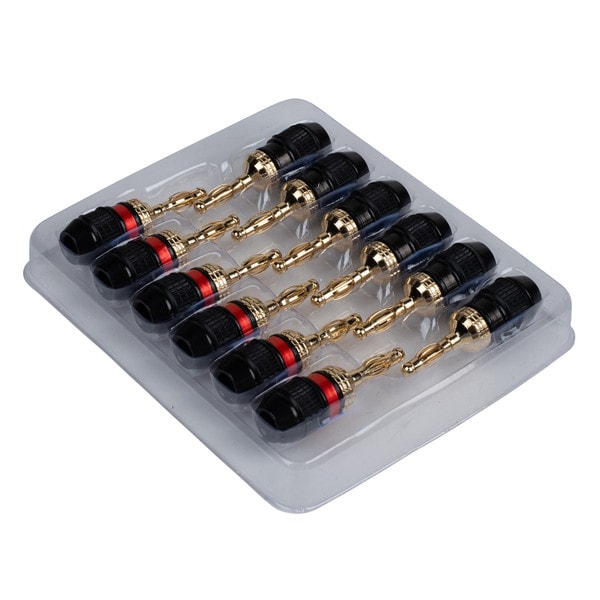

  • Economical 6-pair for home theater hookup
NEW $15.98
MSRP: $29.99
Save $14.01 (47%)
Bulk Pricing
Quantity:Qty: 1-9 $15.98/ea
Quantity:Qty: 10+ $15.49/ea
In Stock
Get Notified When Available

We'll send you an email when 6-Pairs 24K Gold Plated Banana Plug Solderless Compression Style with Non-conductive Shell is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

6-Pairs 24K Gold Plated Banana Plug Solderless Compression Style with Non-conductive Shell

Secure, Safe Connections

High-quality compression style gold-plated banana plugs are the superior choice when making professional speaker cables. These connectors are designed to deliver exceptional reliability and performance, ensuring that your audio connections remain long-lasting and secure. The hard plastic barrel shell design, with rubber ring, prevents the positive and negative metal terminals from accidently touching each other. This offers worry free hookup vs. all metal shells.

Quick and Easy with Compression Style

What sets compression style banana plugs apart is their innovative design, which provides a tighter and more dependable connection compared to traditional soldered, set screw, or crimped options. This feature not only enhances the overall integrity of your audio system but also reduces the risk of signal loss that can occur with inferior connectors.

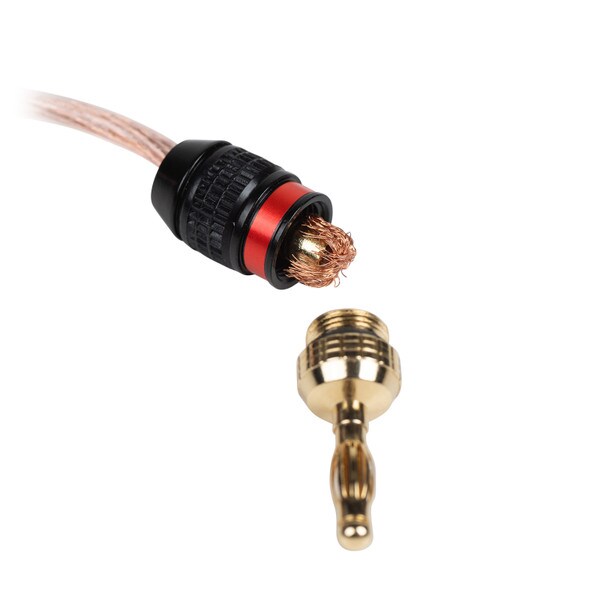

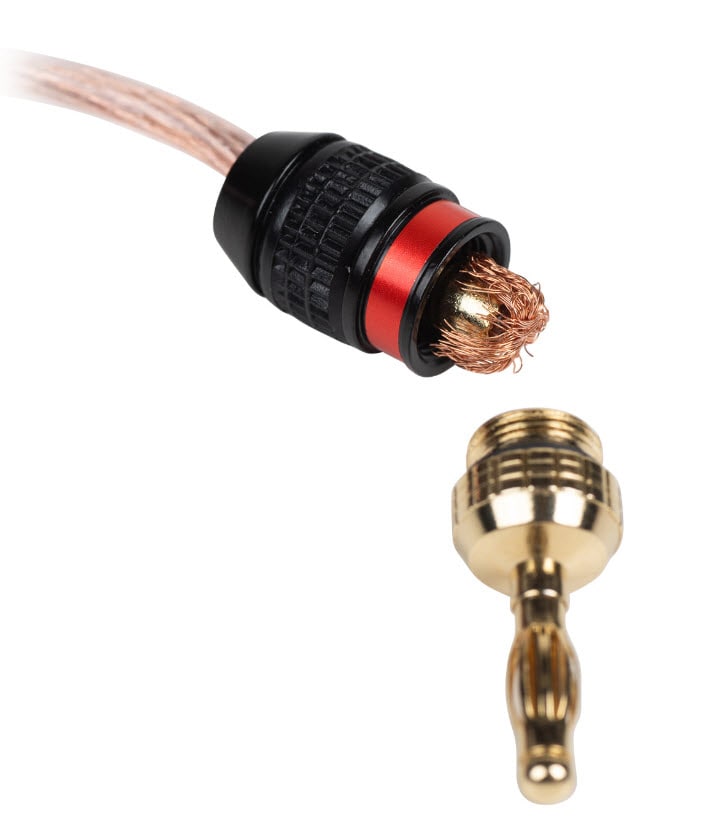

Installing these banana plugs is straightforward. Their user-friendly design allows for quick assembly without the need for specialized tools. Simply strip off a 1/4" of the wire's insulator, insert it into the shell, spread back the strands around the center post and secure it by screwing the plug into the jacket. This process provides a robust and professional finish to your audio setup.

Plug and Unplug

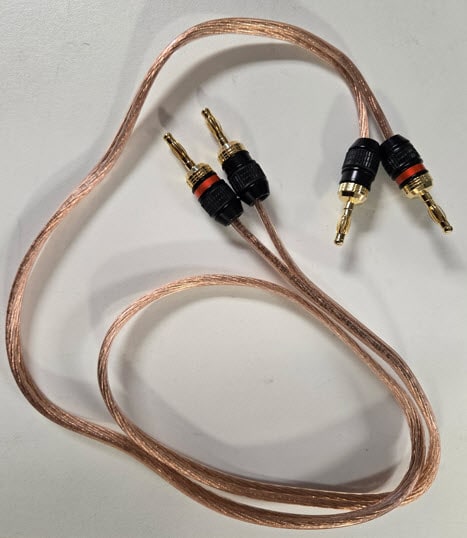

Moreover, these banana plugs are compatible with a wide range of audio equipment, making them a versatile addition to your toolkit. Most high end amplifiers, receivers, and speakers come with binding post which banana plugs insert into. Whether you are setting up a home theater system, a professional sound system, or a high-fidelity stereo setup, these connectors will help you achieve optimal sound quality.

Why fool around with inserting bare wires in and out of your audio equipment? Invest in high-quality compression style banana plugs for a reliable and professional solution to your audio connections. With these plugs, you can enjoy peace of mind knowing that your audio system is equipped with components that prioritize performance and dependability. Elevate your audio experience today!

Specifications: • Total dimensions: 1-11/16" x 9/16" Dia. • Wire gauge: Up to 12 AWG with total D.O. less than 9/64" (3.6 mm) • Shell rear entry diameter: 1/4" (6 mm) • Base metal: brass + beryllium copper • Gold plating: 1 Micron .

Product Details

BrandParts Express
Part Number091-3623
UPC848864077864
Unit of MeasurePackages
Weight0.38

Product Specifications

Contact PlatingGold
Style / TypeSingle
