BUYOUT 3" 580325-008 3W Mini Black paper Cone Speaker 16 Ohm

Factory Buyouts
Part #299-4178

BUYOUT 3" 580325-008 3W Mini Black paper Cone Speaker 16 Ohm

Factory Buyouts
Part #299-4178
Model: 580325-0008
This 3" 580325-5 3W black paper cone full-range speaker is perfect for the hobbyist or tinkerer.
Key Features
  • Neodymium motor for light weight efficiency
  • Coated paper surround for a non-resonant response
  • Less than 1" deep for shallow mounting applications
BUYOUT $0.88
Bulk Pricing
Quantity:Qty: 1-49 $0.88/ea
Quantity:Qty: 50-99 $0.78/ea
Quantity:Qty: 100-499 $0.68/ea
Quantity:Qty: 500+$0.38/ea
Order in the next 0 hr 54 min to ship today. Details

13409In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

3" 580325-008 3W Mini Black paper Cone Speaker 16 Ohm

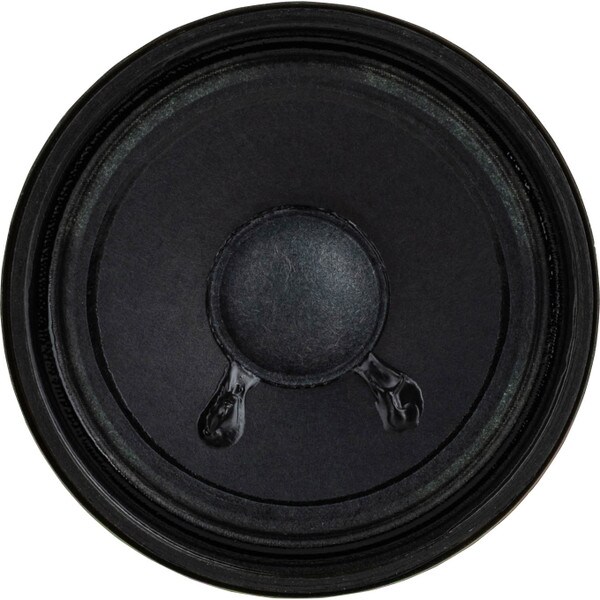

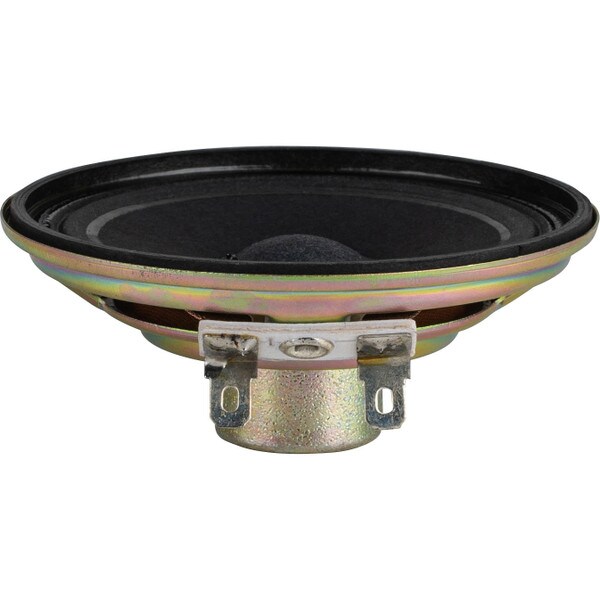

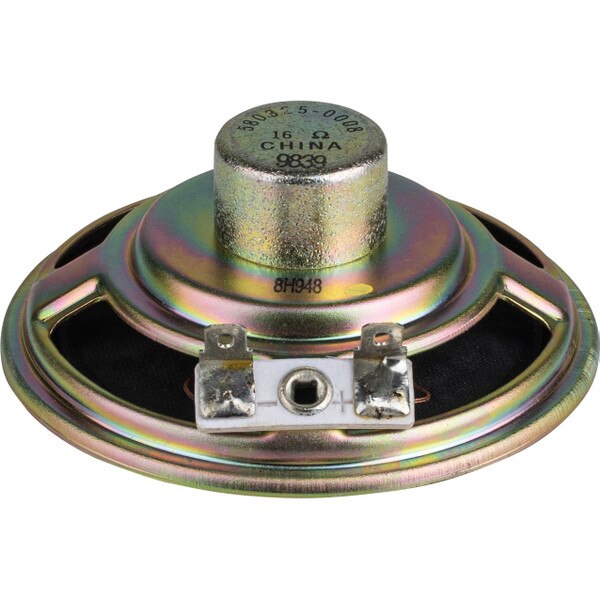

With an un-treated black paper cone, this 3" full-range speaker is a great choice for the electronic hobbyist or tinkerer. A coated paper surround, 1/2" voice coil on paper former and oversize spider make for a very smoot response from 180 - 10,000 Hz, while the neodymium magnet and extremely low moving mass help boost sensitivity. Its 16 ohm impedance means it can be used in multiples for arrays and with numerous wiring configurations.

Product Details

BrandFactory Buyouts
Model580325-0008
Part Number299-4178
UPC848864073361
Unit of MeasureEach
Weight0.2

Product Specifications

Nominal Diameter3"
Power Handling (RMS)4 Watts
Power Handling (MAX)8 Watts
Impedance16Ω
Frequency Response180 - 10,000Hz
Sensitivity83.34dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)175.8Hz
DC Resistance (Re)14.78Ω
Mechanical Q (Qms)4.717
Electromagnetic Q (Qes)5.799
Total Q (Qts)2.601
Compliance Equivalent Volume (Vas)0.052ft³
Diaphragm Mass Inc. Airload (Mms)0.9038g
Maximum Linear Excursion (Xmax)1mm
Surface Area of Cone (Sd)34.21cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialPaper
Voice Coil Wire MaterialCopper
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter3"
Baffle Cutout Diameter2.75"
Depth1.125"
