  • 5" Sealed Back Paper Cone Midrange Speaker 4 Ohm

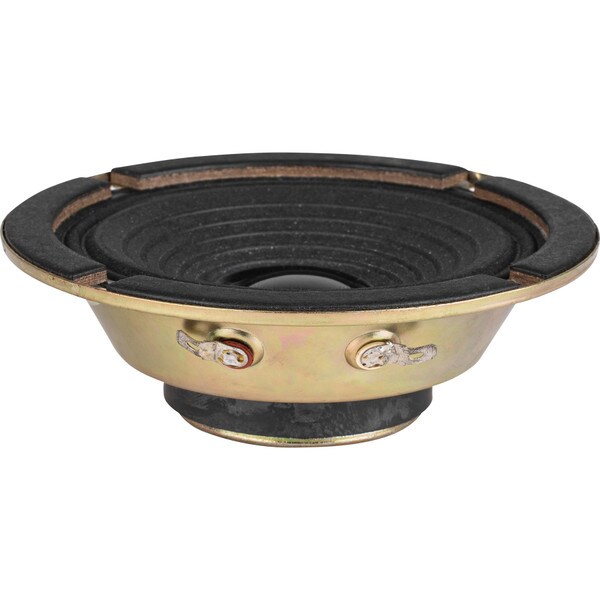

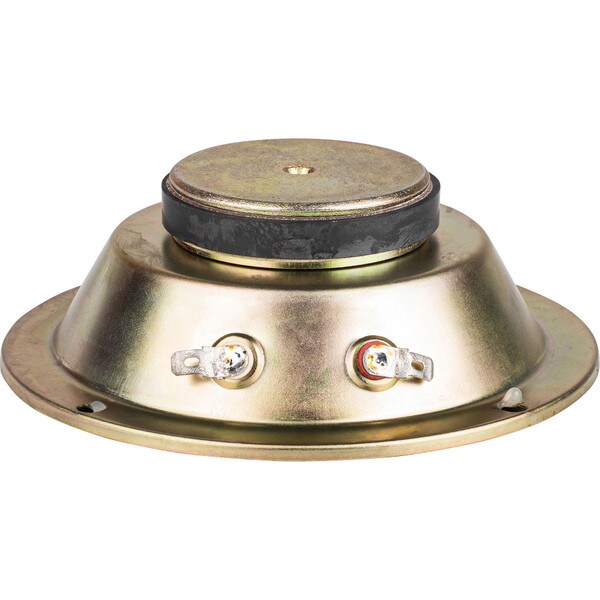

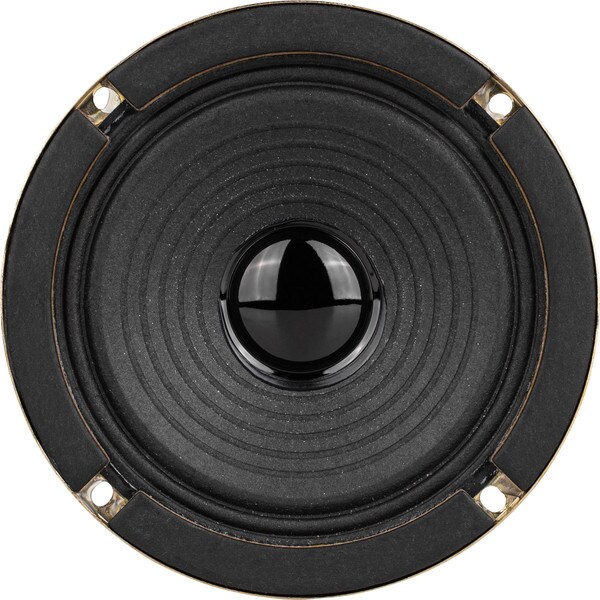

BUYOUT 5" Sealed Back Paper Cone Midrange Speaker 4 Ohm

Factory BuyoutsPart # 299-550
Perfect as a replacement driver for many 3-way and 4-way manufactured in the 80's and 90's, this 5" sealed back midrange speaker uses a ribbed paper cone and surround to keep resonant peaks under control.

Key Features

  • 4 Ohm impedance to maximize sensitivity
  • Sealed back design eliminates the need for a separate sub enclosure
  • Mylar dust cap improves high frequency response
  • Paper cone and surround for natural response
Get Notified When Available

We'll send you an email when 5" Sealed Back Paper Cone Midrange Speaker 4 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

5" Sealed Back Paper Cone Midrange Speaker 4 Ohm

This 5" sealed back midrange speaker makes it easy to replace blown or damaged drivers for many popular 3-way and 4-way loudspeaker systems produced during the last couple of decades. The sealed back design eliminates the need to provide a separate sub-enclosure to isolate this driver from the higher pressure from the woofer. This 5" midrange makes a great budget friendly drop-in alternative driver for many existing designs, as well as providing high performance in new projects, too.

Product Details

BrandFactory Buyouts
Part Number299-550
UPC848864062044
Unit of MeasureEach
Weight0.7

Product Specifications

Nominal Diameter5"
Bolt Circle Diameter4.75
Power Handling (RMS)20 Watts
Power Handling (MAX)40 Watts
Impedance4Ω
Frequency Response600 to 10,000Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter0.813"

Thiele-Small Parameters

Resonant Frequency (Fs)600Hz
DC Resistance (Re)3.8Ω

Materials of Construction

Cone MaterialPaper
Surround MaterialPaper
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.16"
Baffle Cutout Diameter4.3"
Depth1.75"
# Mounting Holes4
