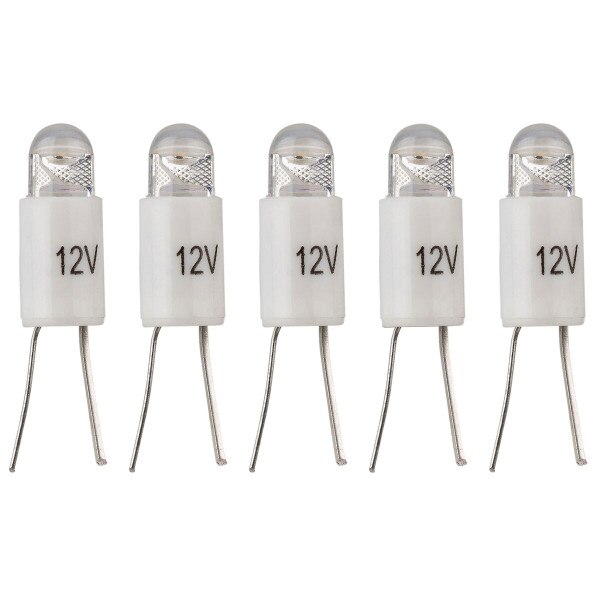

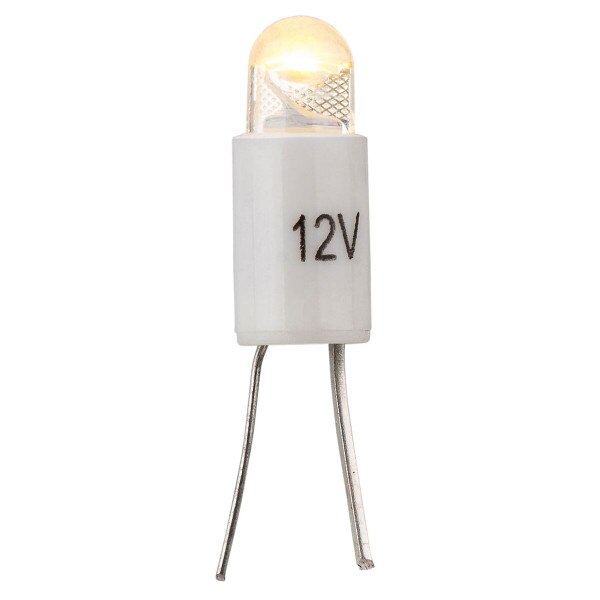

12 Volt Warm White LED Bi-pin Style Lamp for Marantz Sansui Kenwood Yamaha Sony 5 Pack

Parts ExpressPart # 070-134
Rejuvenate your vintage stereo receivers without worrying that you will be replacing the lamps again. These LED bi-pin 12 volt lamps provide a warm white glow for tuner dials, level meters, and LCD displays so your vintage equipment will come back to life.

Key Features

  • Popular in vintage Marantz, Sansui, Kenwood, Yamaha, Sony, and other classic stereo receivers
  • Amp runs cooler compared to incandescent bulbs
  • Saves energy by drawing only 20 mA vs. 40 mA with standard bulbs
  • Economical 5-pack
  • Versatile 12 volt AC or DC operation
Your Price: $6.69
MSRP: $10.99
Save $4.30 (39%)
Bulk Pricing
Quantity:Qty: 1-9 $6.69/ea
Quantity:Qty: 10+ $6.14/ea
139 In Stock
Get Notified When Available

We'll send you an email when 12 Volt Warm White LED Bi-pin Style Lamp for Marantz Sansui Kenwood Yamaha Sony 5 Pack is back in stock or available for preorder.

Order in the next 0 hr 33 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

12 Volt Warm White LED Bi-pin Style Lamp for Marantz Sansui Kenwood Yamaha Sony 5 Pack

These 12 volt LED bi-pin lights' design, push or solder right in to the original bulb's location in Marantz, Sansui, Kenwood, Yamaha, Sony, and other classic stereo receivers. Manufacturers used bi-pin style incandescent lamps to back light tuner and panel displays in stereo amplifiers. Using LED lights to replace original burnout incandescent bulbs saves energy and practically illuminates having to replace the bulbs in the future. You will fall in love with your stereo receiver all over again once you install these new LED lights.

These LED bi-pin lamps have multiple application possibilities, because they can work with 12 volt AC or DC and their pins fit right into PC boards for easy soldering. Many cars use these bi-pin lamps to light up dash instrument panels and car stereo displays. It's more efficient to replace incandescent bulbs with LED lights to save the hassle of having to replace them again. If your vehicle has a power surge or likes off road driving the LEDs are less likely to burn out like standard filament bulbs. You will also find them backlighting LCD displays in portable and desk style communication radios. Next time a repair or a new project needs a bi-pin light, use an LED lamp.

Specifications: • Dimensions: 0.5" H x 0.2" Dia. without the pins and at its widest point • LED dimensions: 0.18" H x 0.16" Dia. • Pin size: 0.35" L x 0.014" Dia. and 0.35" L x 0.020" • Color: Warm white • Brightness: 30 LM • Recommended voltage: 12 volts @ 20 mA • Working voltage: 3 to 15 volts.

Product Details

BrandParts Express
Part Number070-134
UPC848864032856
Unit of MeasurePackages
Weight0.008
