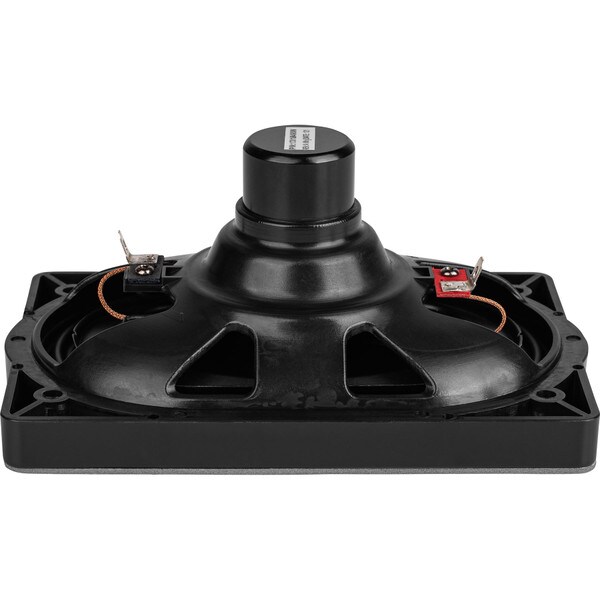

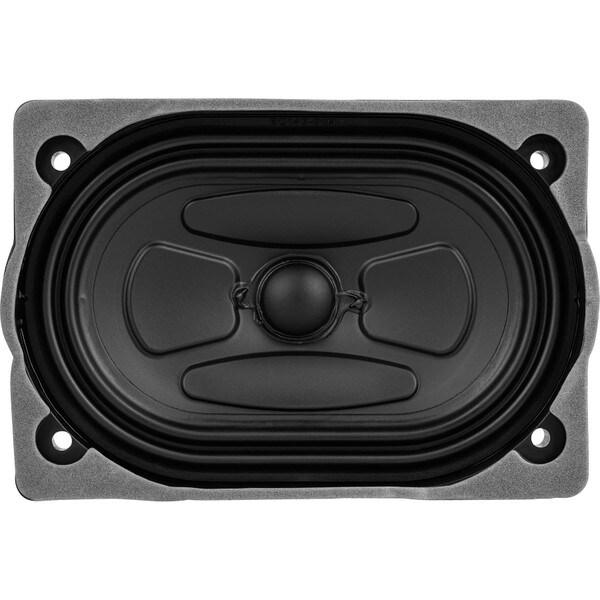

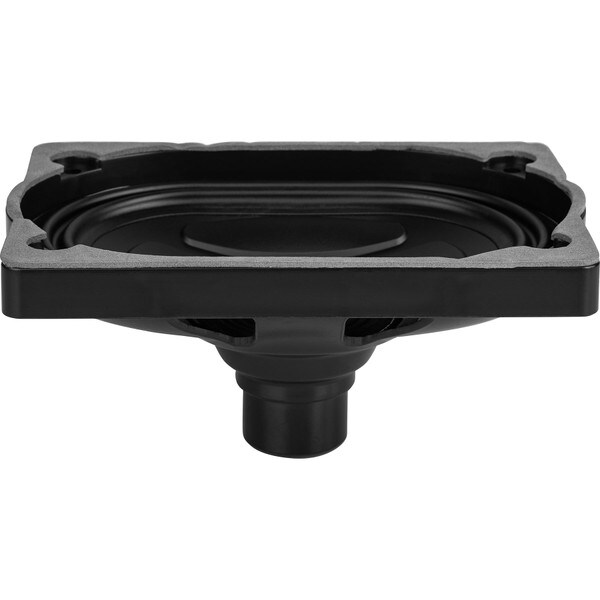

BUYOUT 4" x 6" High Excursion Poly Cone Woofer with Neodymium Magnet

Factory BuyoutsPart # 299-714
Originally used in a high-end sound bar, this 4" x 6" subwoofer is perfect for use in compact systems, or even in multiples to create low frequency line arrays or open baffle designs. With a rubber double roll surround and large diameter spider you can expect low distortion even under high excursion.

Key Features

  • 19 mm long 4-layer voice coil for incredible excursion from a 4" x 6" driver
  • Compact neodymium motor and rigid polymer frame for minimal weight
  • Qts of 0.83 is perfect for open and infinite baffle array designs
  • Reinforced poly cone keeps resonances to a minimum
  • Double roll rubber surround keeps excursion linear
  • Vented aluminum voice coil former improves power handling
Get Notified When Available

We'll send you an email when 4" x 6" High Excursion Poly Cone Woofer with Neodymium Magnet is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

4" x 6" High Excursion Poly Cone Woofer with Neodymium Magnet

This 4" x 6" subwoofer is a unique driver that was originally used in a high-end sound bar, but the high excursion, low Fs, and Qts of 0.83 makes it a great candidate for use in open baffle or infinite baffle line array designs. The 19 mm long voice coil and 4 mm gap combine for an X-max of 7.5 mm, allowing this driver to move more air that you expect. The 0.75" diameter 4-layer coil is wound on a vented aluminum former to ensure that compression remains at a minimum even when driven to its limit. A double roll rubber surround and 2" diameter spider (large for a 4" x 6") keep the cone linear under high excursion. A reinforced poly cone keeps unwanted resonance well out of the useful frequency response. With a one of a kind polymer frame and neodymium motor, this driver is extremely light weight…don't let that fool you, it can deliver some impressive bass performance (especially in multiples). The efficiency might not be high, but neither is the price, so this is the perfect driver to experiment with low frequency arrays.

Product Details

BrandFactory Buyouts
Part Number299-714
UPC848864060507
Unit of MeasureEach
Weight0.45

Product Specifications

Nominal Diameter4 x 6"
Power Handling (RMS)25 Watts
Power Handling (MAX)50 Watts
Impedance6Ω
Frequency Response30 to 1,000Hz
Sensitivity79.87dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)38.8Hz
DC Resistance (Re)4.4Ω
Voice Coil Inductance (Le)0.86mH
Mechanical Q (Qms)2.52
Electromagnetic Q (Qes)1.24
Total Q (Qts)0.83
Compliance Equivalent Volume (Vas)0.25ft³
Mechanical Compliance of Suspension (Cms)0.58mm/N
BL Product (BL)5.01T·m
Diaphragm Mass Inc. Airload (Mms)29.07g
Maximum Linear Excursion (Xmax)7.5mm
Surface Area of Cone (Sd)92.8cm²

Materials of Construction

Cone MaterialPoly
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerAluminum
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter4.25" x 6.375"
Baffle Cutout Diameter3.65" x 5.75"
Depth2.875"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.4ft³
Sealed F342Hz
Vented Volume0.5ft³
Vented F324Hz
