CLEARANCE 4" Treated Paper Cone Woofer 16 Ohm

Factory Buyouts
Part #299-320

CLEARANCE 4" Treated Paper Cone Woofer 16 Ohm

Factory Buyouts
Part #299-320

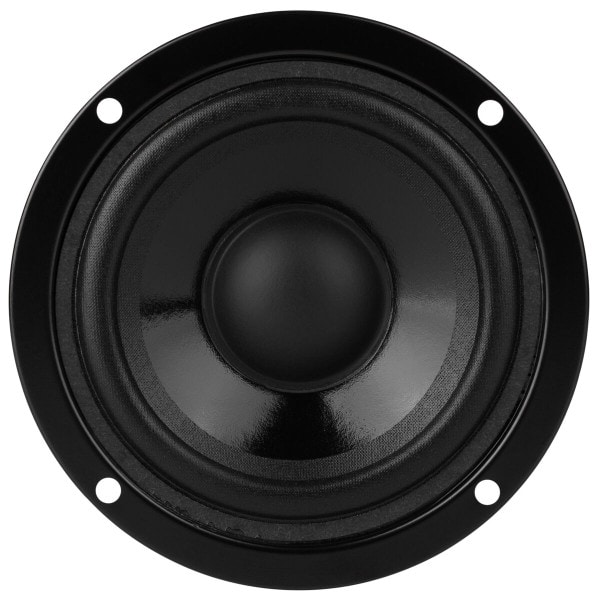

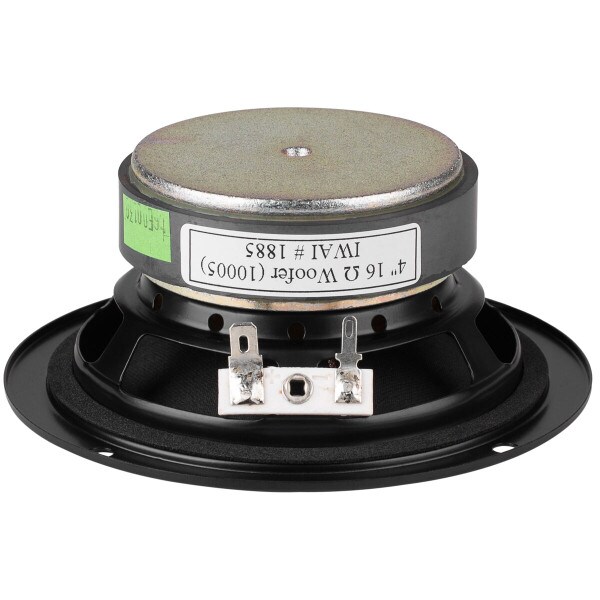

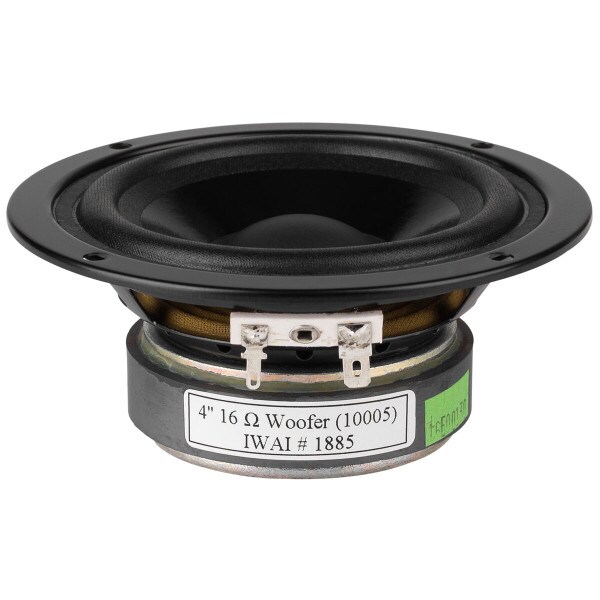

Featuring a treated paper cone, cloth surround, and a huge flat spider this 4" woofer will deliver natural response with surprising efficiency. The 16 ohm impedance makes it easy to connect multiples together in an array while still maintaining an easy load for your amplifiers.
Key Features
  • Incredible off axis response up to 6,000 Hz
  • Damped paper cone and cloth surround delivers smooth and natural response
  • 16 ohm impedance is perfect for wiring multiples together in parallel
  • Cosmetic mounting frame provides a clean look without flush mounting
  • Aluminum voice coil former and under spider venting increases power handling
  • Excellent driver for use in line arrays and compact portable speakers
60 Day No Hassle Return Policy

Overview

4" Treated Paper Cone Woofer 16 Ohm

Providing smooth response up to 8,000 Hz and amazing off axis response this 16 ohm 4" woofer is an excellent choice for line arrays, portable speaker, and nearfield designs. With a naturally damped treated paper cone and cloth surround, this driver delivers ±3 dB from 100 Hz up to 5,000 Hz even at 60° off axis for an extremely easy transition to almost any tweeter. The large flat spider ensures that the cone remains linear at high excursion keeping distortion and compression at a minimum. In addition, for even lower distortion, the motor assembly uses a raised pole piece to create a more symmetrical magnetic field around the voice coil. This 4" woofer is perfect for any compact 2-way speaker design.

Special purchase -- limited quantities available!

Product Details

BrandFactory Buyouts
Part Number299-320
UPC848864046358
Unit of MeasureEach
Weight1.25

Product Specifications

Nominal Diameter4"
Bolt Circle Diameter4.325
Power Handling (RMS)20 Watts
Power Handling (MAX)40 Watts
Impedance16Ω
Frequency Response90 to 8,000Hz
Sensitivity86.95dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)107Hz
DC Resistance (Re)11.89Ω
Voice Coil Inductance (Le)0.97mH
Mechanical Q (Qms)2.48
Electromagnetic Q (Qes)1.1
Total Q (Qts)0.76
Compliance Equivalent Volume (Vas)0.099ft³
Mechanical Compliance of Suspension (Cms)0.694mm/N
BL Product (BL)4.81T·m
Maximum Linear Excursion (Xmax)1mm
Surface Area of Cone (Sd)53.47cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter4.75"
Baffle Cutout Diameter3.625"
Depth1.875"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.18ft³
Sealed F3123Hz
Vented Volume0.35ft³
Vented F365Hz
